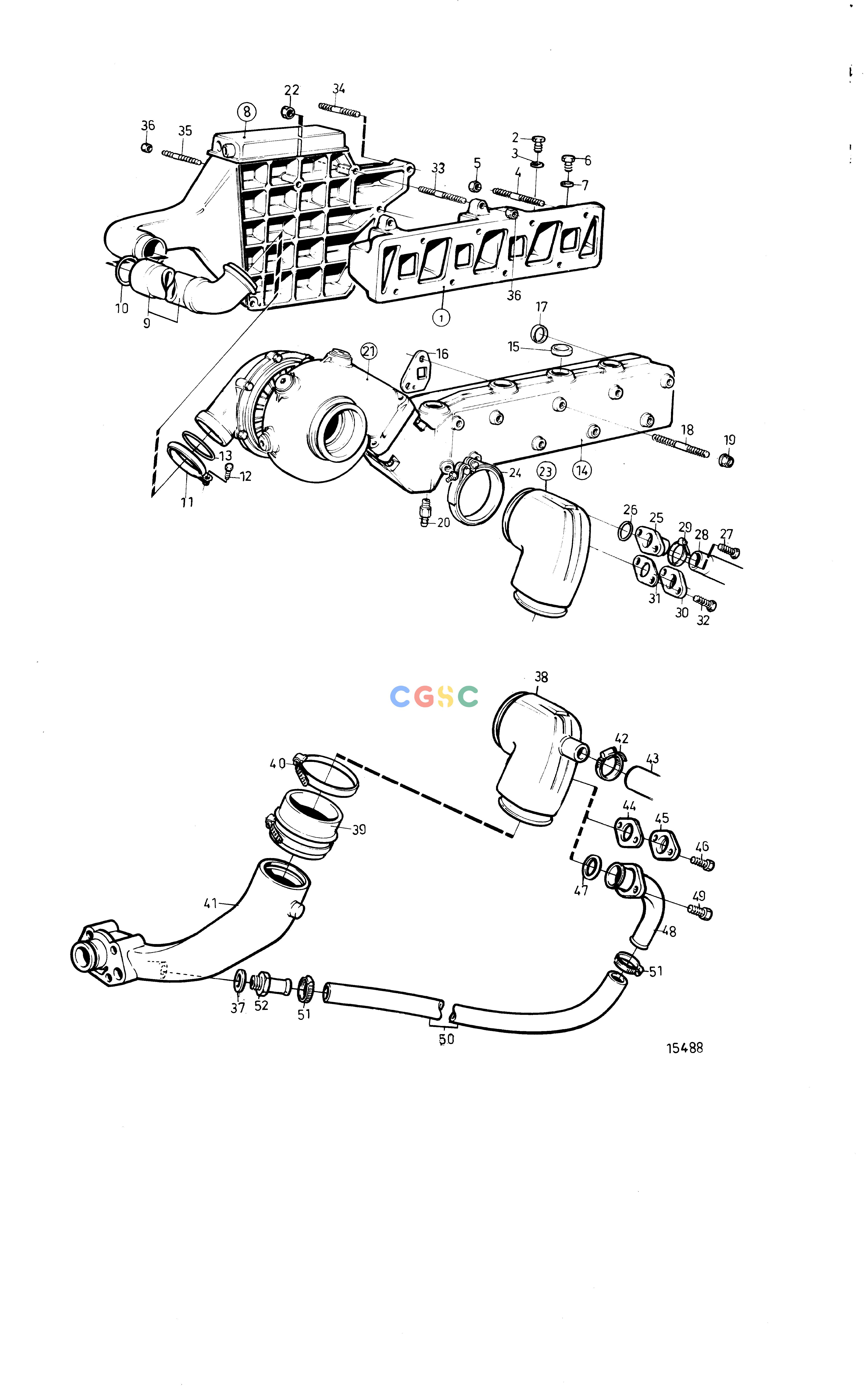

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DIntake and Exhaust SystemInduction and Exhaust Manifold: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859299
|
[1] |
Inlet pipe
|
|
| 2. |
960634
|
[4] |
Plug
|
|
| 3. |
947627
|
[4] |
Gasket
|
|
| 4. |
924068
|
[6] |
Stud
|
|
| 5. |
968862
|
[6] |
Nut
|
|
| 6. |
960632
|
[1] |
Plug
|
|
| 7. |
947624
|
[1] |
Gasket
|
|
| 8. |
|
|
|
|
| 9. |
838693
|
[1] |
Connecting pipe
|
|
| 10. |
864723
|
[1] |
Sealing ring
|
|
| 11. |
838864
|
[1] |
V-clamp
|
|
| 12. |
947542
|
[1] |
Flange screw
|
|
| 13. |
967944
|
[1] |
O-ring
|
|
| 14. |
861619
|
[1] |
Exhaust pipe
|
(861304)
|
| 15. |
946780
|
[7] |
Cap plug
|
|
| 16. |
876144
|
[2] |
Gasket kit
|
|
| 17. |
838766
|
[1] |
Sealing ring
|
|
| 18. |
953007
|
[1] |
Stud
|
L=150mm
|
| 18. |
953003
|
[1] |
Stud
|
L=130mm
|
| 18. |
953001
|
[2] |
Stud
|
L=120mm
|
| 18. |
952999
|
[4] |
Stud
|
L=110mm
|
| 19. |
971095
|
[8] |
Flange nut
|
|
| 20. |
949918
|
[1] |
Shut-off cock
|
|
| 21. |
|
|
|
|
| 37. |
958228
|
[1] |
O-ring
|
|
| 38. |
860656
|
[1] |
Pipe elbow
|
|
| 39. |
860396
|
[1] |
Exhaust hose
|
|
| 40. |
853012
|
[4] |
Hose clamp
|
|
| 41. |
|
|
|
See group 44
|
| 42. |
994560
|
[1] |
Hose clamp
|
|
| 43. |
860828
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 44. |
859002
|
[1] |
Gasket
|
|
| 45. |
844093
|
[1] |
Flange
|
|
| 46. |
946544
|
[2] |
Flange screw
|
|
| 47. |
842913
|
[1] |
Sealing ring
|
|
| 48. |
844258
|
[1] |
Coolant pipe
|
|
| 49. |
946544
|
[2] |
Flange screw
|
|
| 50. |
944386
|
[1] |
Rubber hose
|
L=720mm
|
| 51. |
853548
|
[2] |
Hose clamp
|
|
| 52. |
873221
|
[1] |
Nipple
|
|
