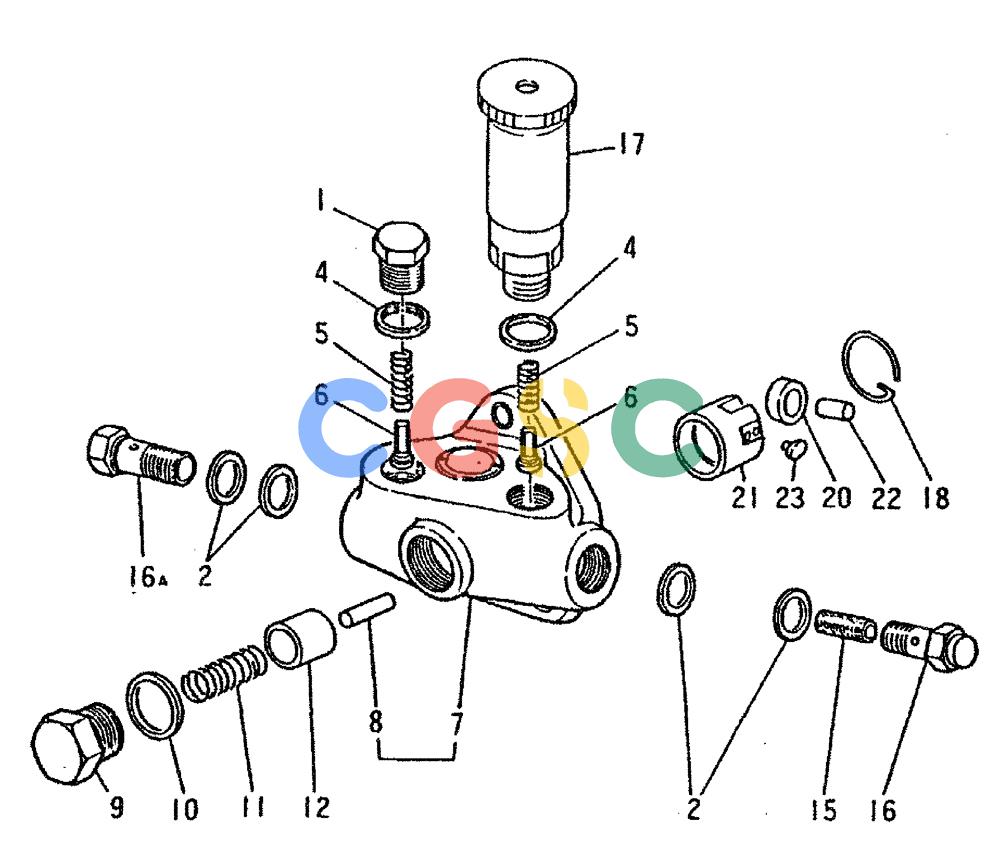

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-008) - FUEL FEED PUMP (INNER PARTS) P/N ME032814 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-23. | VAME032814 | [1] | FEED PUMP | KOBFUEL, KE TYPE, ME035928 Superseded by part number: VAME035928 |
| 1. | VAME702223 | [1] | PLUG CHAMBER | PLUG CHAMBER |
| 2. | VAME702217 | [4] | WASHER SEAL | WASHER SEAL |
| 4. | VAME702222 | [2] | GASKET | KOBPLUG |
| 5. | VAME702221 | [2] | SPRING CHECK /V | SPRING CHECK /V |
| 6. | VAME702220 | [2] | CHECK VALVE | KOBCHECK |
| 7-8. | VAME702218 | [1] | HOUSING SUB ASSY | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 8. | VAME702219 | [1] | PUSH ROD | |
| 9. | VAME702230 | [1] | PLUG, PISTON CHAMBER | |
| 10. | VAME702233 | [1] | WASHER | |
| 11. | VAME702024 | [1] | SPRING, PISTON | |
| 12. | VAME702225 | [1] | PISTON | |
| 15. | VAME702231 | [1] | ELEMENT | KOB Superseded by part number: VA0922200040 |
| 16. | VAME702232 | [1] | SCREW | KOBSCREW Superseded by part number: VA0922230070 |
| 16A. | VAME702235 | [1] | SCREW | |
| 17. | VAME702224 | [1] | ENGINE OIL PUMP | KOBPUMP, PRIMING Superseded by part number: VA3446129516 |
| 18. | VAME702234 | [1] | RING, SNAP | |
| 20. | VAME702227 | [1] | ROLLER, TAPPET | |
| 21. | VAME702226 | [1] | TAPPET | |
| 22. | VAME702228 | [1] | PIN, ROLLER | |
| 23. | VAME702229 | [2] | BLOCK, SLIDING | |
