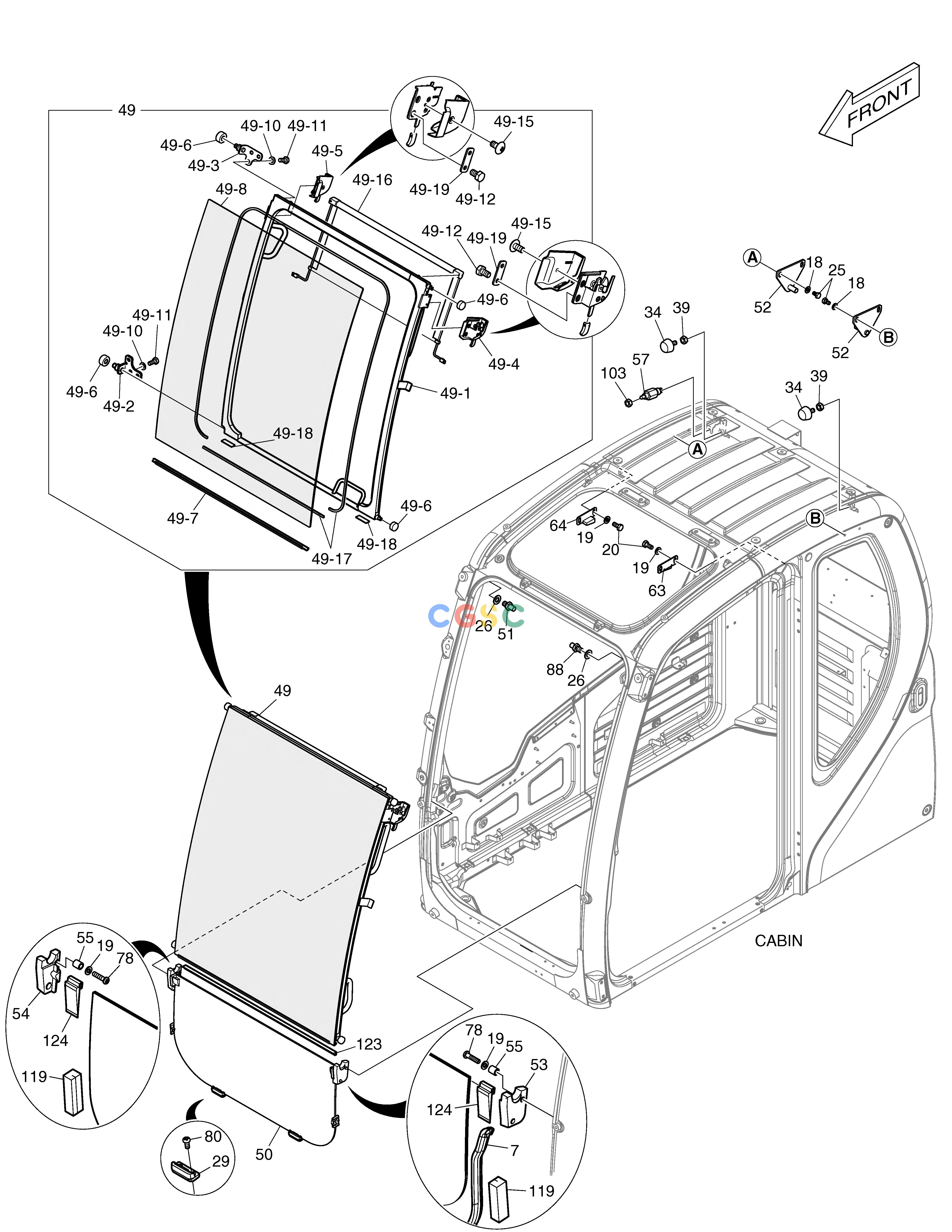

斗山零件查询CABIN(2) DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00192P
|
[1] |
|
220101-00192R
|
| -. |
220101-00192R
|
[1] |
|
|
| 103. |
S4034833
|
[1] |
NUT
|
|
| 119. |
180102-00743
|
[2] |
FOAM
|
|
| 123. |
101588-00073
|
[1] |
|
|
| 124. |
110956-00432
|
[2] |
|
|
| 18. |
2114-1898D14
|
[4] |
WASHER
|
|
| 19. |
2114-1898D3
|
[8] |
WASHER
|
|
| 20. |
2120-2166D28
|
[4] |
. BOLT
|
|
| 25. |
2120-2166D12
|
[4] |
BOLT
|
|
| 26. |
2114-1898D6
|
[2] |
WASHER
|
|
| 29. |
416-00019B
|
[2] |
STOPPER;LOWER
|
|
| 34. |
161-00195
|
[2] |
STOPPER
|
|
| 39. |
2121-1311D4
|
[2] |
NUT
|
|
| 49. |
220205-00435
|
[1] |
|
|
| 49-1. |
220205-00436
|
[1] |
|
|
| 49-10. |
2114-1898D3
|
[6] |
WASHER
|
|
| 49-11. |
2120-2166D28
|
[6] |
. BOLT
|
|
| 49-12. |
2120-2166D12
|
[4] |
BOLT
|
|
| 49-15. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 49-16. |
474-00044A
|
[1] |
. SUN SCREEN,FRONT
|
|
| 49-17. |
K1002638A
|
[1] |
DAMPER
|
|
| 49-18. |
K1006368
|
[2] |
. RUBBER
|
|
| 49-19. |
K1056987
|
[2] |
. PLATE
|
|
| 49-2. |
195-02739C
|
[1] |
. BRACKET
|
|
| 49-3. |
195-02740E
|
[1] |
. BRACKET
|
|
| 49-4. |
100601-00023
|
[1] |
. CATCH ASSY,SLIDE(L.H)
|
|
| 49-5. |
100601-00024
|
[1] |
. CATCH ASSY,SLIDE(R.H)
|
|
| 49-6. |
900131-00014A
|
[4] |
. ROLLER,SLIDE DOOR
|
|
| 49-7. |
K1036331
|
[1] |
. BAR
|
|
| 49-8. |
500119-00451
|
[1] |
. GLASS,FRONT UPPER
|
|
| 50. |
903-00074
|
[1] |
GLASS;FRONT LOWER
|
|
| 51. |
142-00128B
|
[1] |
STRIKER
|
|
| 52. |
142-00127C
|
[2] |
STRIKER
|
|
| 53. |
110956-00448
|
[1] |
|
|
| 54. |
110956-00449
|
[1] |
|
|
| 55. |
2140-1338
|
[4] |
PIPE,SPACER
|
|
| 57. |
549-00086
|
[1] |
SWITCH
|
|
| 63. |
161-00618B
|
[1] |
STOPPER
|
|
| 64. |
161-00619B
|
[1] |
STOPPER
|
|
| 7. |
162-00034B
|
[1] |
STRIP,WEATHER
|
|
| 78. |
S3450993
|
[4] |
SCREW
|
|
| 80. |
2120-2166D52
|
[4] |
. BOLT
|
|
| 88. |
K1003284
|
[1] |
STRIKER
|
|
