神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-010) - AUTOMATIC TIMER (INNER PARTS) SCZ TYPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
669 次

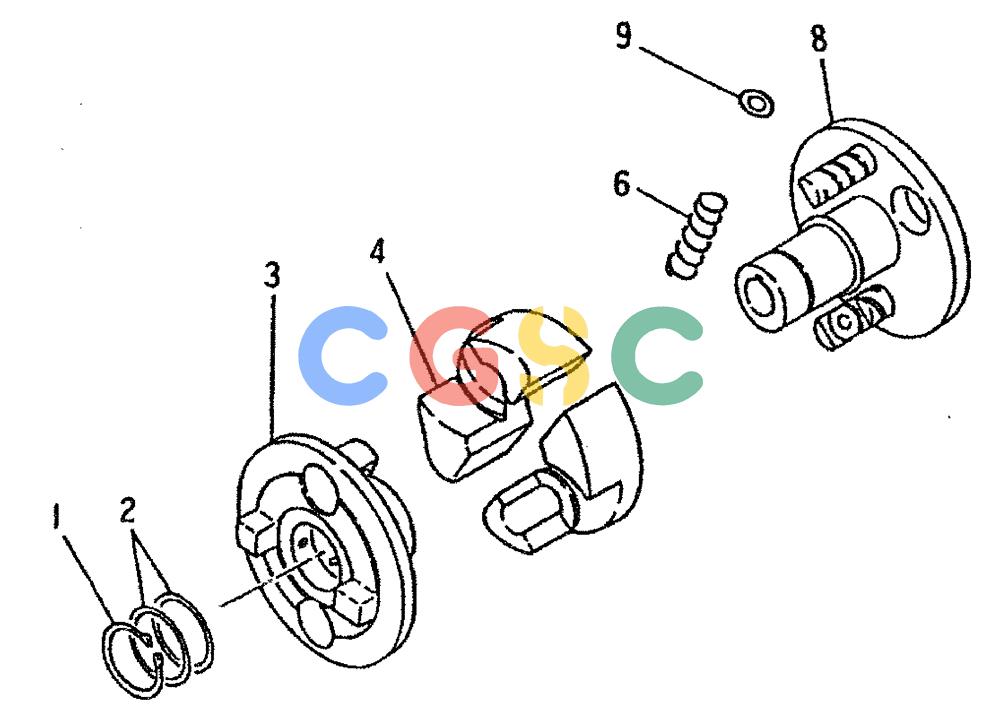

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VA3186081050 | [1] | TIMER ASSY AUTOMATIC TIMER ASSY, SCZ TYPE | TIMER ASSY AUTOMATIC TIMER ASSY, SCZ TYPE |
| 1. | VAME702214 | [1] | RING, SNAP | |
| 2. | VAME702216 | [1] | WASHER, PLATE, T=1.0 | |
| . . | VAME022266 | [1] | WASHER, PLATE, T=0.2 | |
| 3. | VAME703554 | [1] | FLANGE, DRIVING | |
| 4. | VAME702212 | [2] | WEIGHT, TIMER | |
| 6. | VAME703552 | [2] | SPRING, TIMER | |
| 8. | VAME703551 | [1] | HUB ASSY | |
| 9. | VAME702215 | [1] | WASHER, PLATE, T=0.3 | |
| . . | VAME703553 | [1] | WASHER, PLATE, T=0.1 | |
| . . | VAME023379 | [1] | WASHER, PLATE, T=0.5 | |
