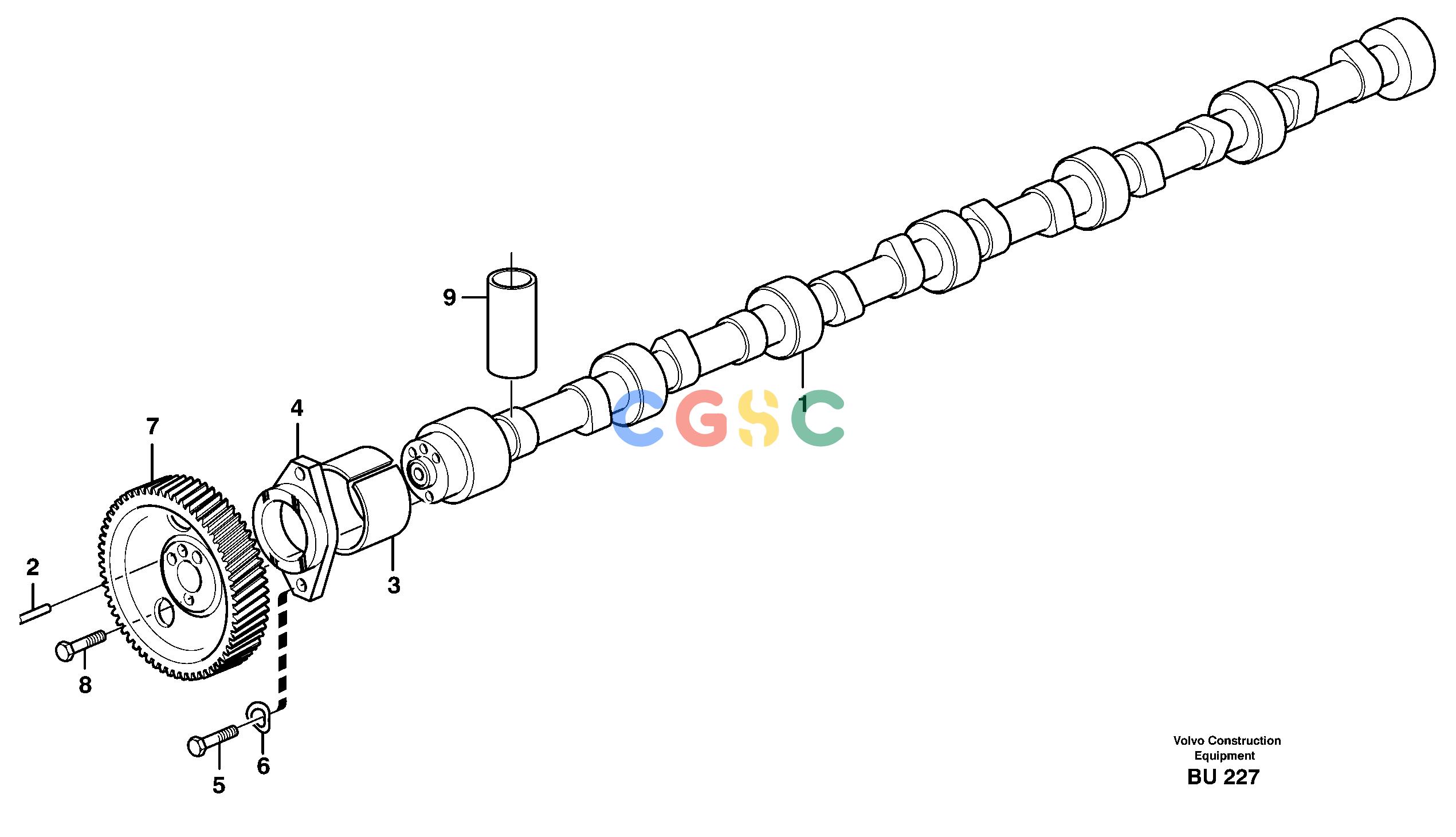

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE8194480 | [1] | Camshaft | |
| 2. | VOE950588 | [1] | Pin | |
| 3. | [7] | Bearing bushing | ||
| 4. | VOE465789 | [1] | Flange | |
| 5. | VOE13940115 | [2] | Screw | |
| 6. | VOE13942336 | [2] | Spring washer | |
| 7. | VOE478297 | [1] | Gear | |
| 8. | VOE471555 | [3] | Screw | |
| 9. | [12] | Tappet |
广数供应链运营团队, 14 02月, 2025，浏览： 183 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE8194480 | [1] | Camshaft | |
| 2. | VOE950588 | [1] | Pin | |
| 3. | [7] | Bearing bushing | ||
| 4. | VOE465789 | [1] | Flange | |
| 5. | VOE13940115 | [2] | Screw | |
| 6. | VOE13942336 | [2] | Spring washer | |
| 7. | VOE478297 | [1] | Gear | |
| 8. | VOE471555 | [3] | Screw | |
| 9. | [12] | Tappet |
