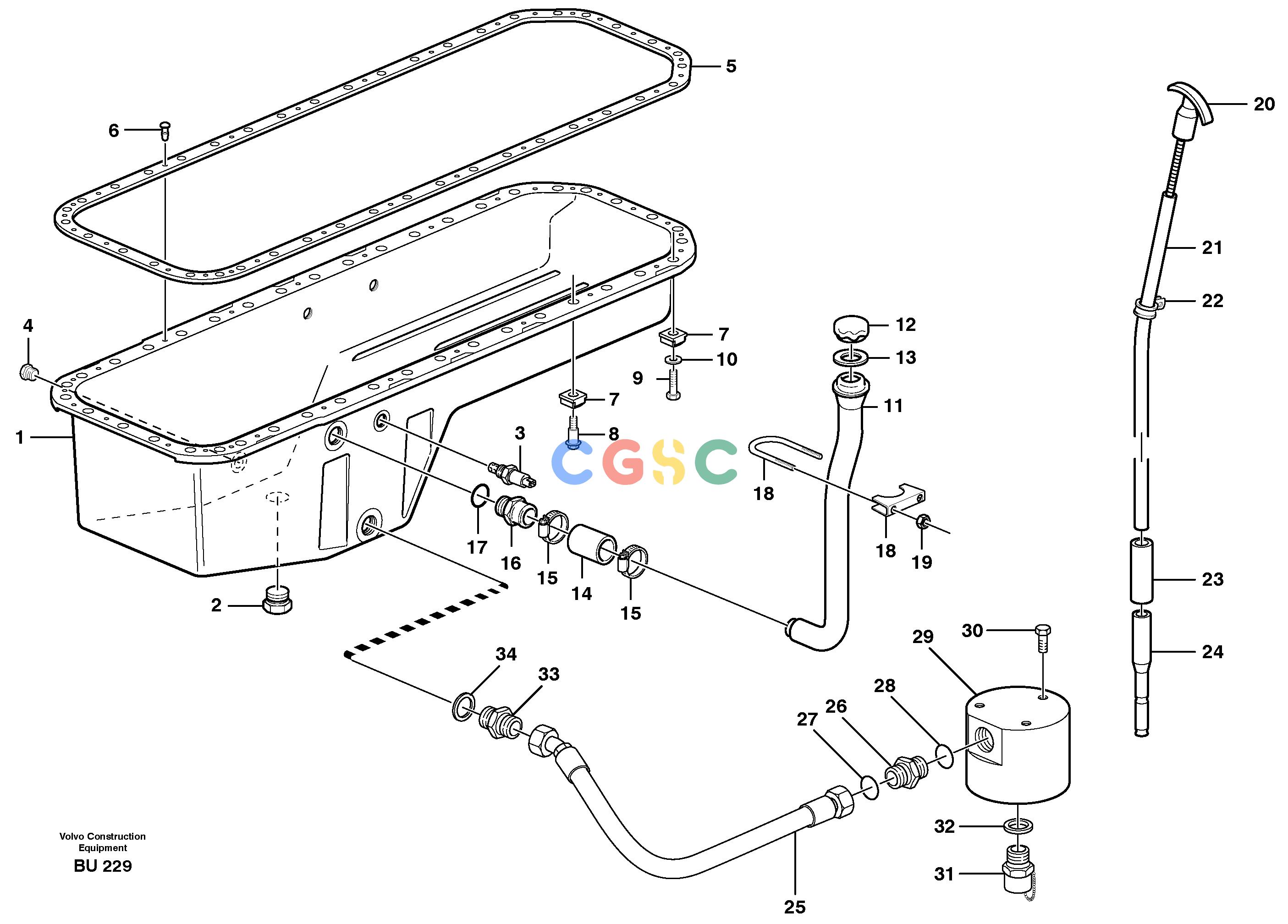

沃尔沃零件查询A25D Oil sumpS/N -12999, - 61118 USA8188151-37090VOE8188151NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11162611
|
[1] |
Oil pan
|
|
| 2. |
VOE13960638
|
[1] |
Plug
|
|
| 3. |
VOE15048183
|
[1] |
Oil level sensor
|
SE2205
|
| |
VOE11713718
|
[1] |
O-ring
|
|
| 4. |
VOE479956
|
[1] |
Plug
|
|
| 5. |
VOE479486
|
[1] |
Gasket
|
|
| 6. |
VOE13943353
|
[28] |
Rivet
|
|
| 7. |
VOE420991
|
[41] |
Rubber cushion
|
|
| 8. |
VOE479421
|
[38] |
Flange screw
|
L = 42,5 MM
|
| 9. |
VOE940161
|
[3] |
Hexagon screw
|
L = 45 MM
|
| 10. |
VOE13960141
|
[3] |
Washer
|
|
| 11. |
VOE11162563
|
[1] |
Oil filler pipe
|
|
| 12. |
VOE3547599
|
[1] |
Oil filler cap
|
|
| 13. |
VOE1275379
|
[1] |
Gasket
|
|
| 14. |
VOE11162126
|
[1] |
Hose
|
|
| 15. |
VOE943477
|
[2] |
Hose clamp
|
|
| 16. |
VOE11162582
|
[1] |
Nipple
|
|
| 17. |
VOE925064
|
[1] |
O-ring
|
|
| 18. |
VOE968129
|
[2] |
Clamp
|
|
| 19. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 20. |
VOE11162506
|
[1] |
Dipstick
|
|
| 21. |
VOE11031470
|
[1] |
Oil pipe
|
|
| 22. |
VOE13949747
|
[1] |
Clamp
|
|
| 23. |
VOE8149606
|
[1] |
Rubber hose
|
|
| 24. |
VOE479328
|
[1] |
Tube
|
|
| 25. |
VOE11113583
|
|
Hose assembly
|
|
| 26. |
VOE13933906
|
|
Nipple
|
|
| 27. |
VOE990740
|
|
O-ring
|
|
| 28. |
VOE14211859
|
|
Sealing ring
|
|
| 29. |
VOE11115336
|
|
Block
|
|
| 30. |
VOE13946173
|
|
Screw
|
|
| 31. |
VOE11054692
|
|
Valve
|
|
| 32. |
VOE949329
|
|
Gasket
|
|
| 33. |
VOE11113569
|
|
Nipple
|
|
| |
VOE11707464
|
|
O-ring
|
|
| 34. |
VOE13947630
|
|
Gasket
|
|
