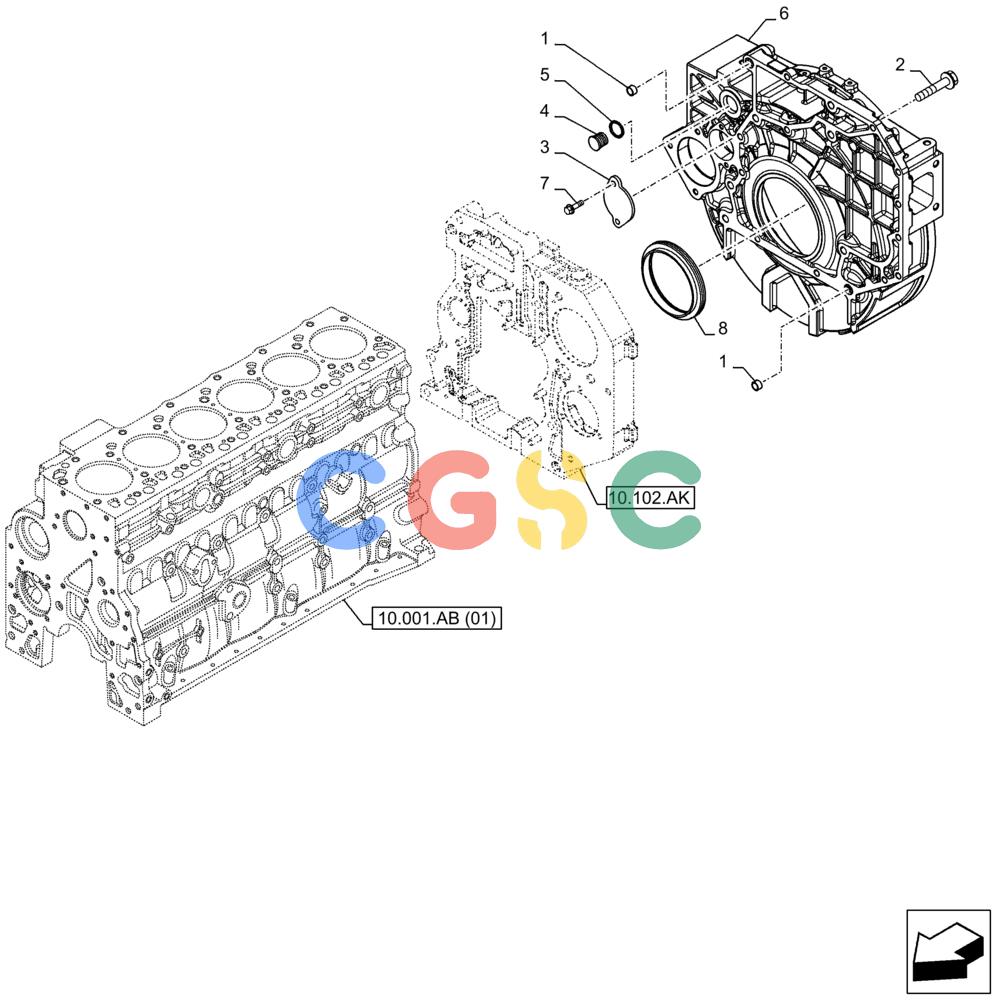

纽荷兰零件查询(F4HFE613F A001) - ENGINE 5801753674 - 47541731 (1/14-) (10.103.AK) - FLYWHEEL, HOUSING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
144 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899109 | [2] | SCREW,Hex, M10 x 1.5 x 80 | BASM10 x 1.5 x 80 |
| 2. | 4892915 | [10] | FLANGE BOLT,Hex, M10 x 1.5 x 40mm | TORM10 x 1.5 x 40 |
| 2. | 4899076 | [6] | SCREW,Hex Flg, M12 x 1.75 x 80 | TORM12 x 1.75 x 80 |
| 2. | 4897499 | [2] | SCREW | SM |
| 3. | 4895155 | [1] | COVER | TOR |
| 4. | 4895378 | [1] | BUTTON PLUG,M29.2 | TOR |
| 5. | 4895379 | [1] | O-RING,21.82mm ID x 3.53mm Width | TORID = 21.82 x 3.53 Superseded by part number: 17288480 |
| 6. | 2852425 | [1] | HOUSING | TOR Superseded by part number: 504033868 |
| 7. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BASM8 x 1.25 x 16 |
| 8. | 84575645 | [1] | OIL SEAL,130mm ID x 155mm OD x 16mm Thk | TOR |
