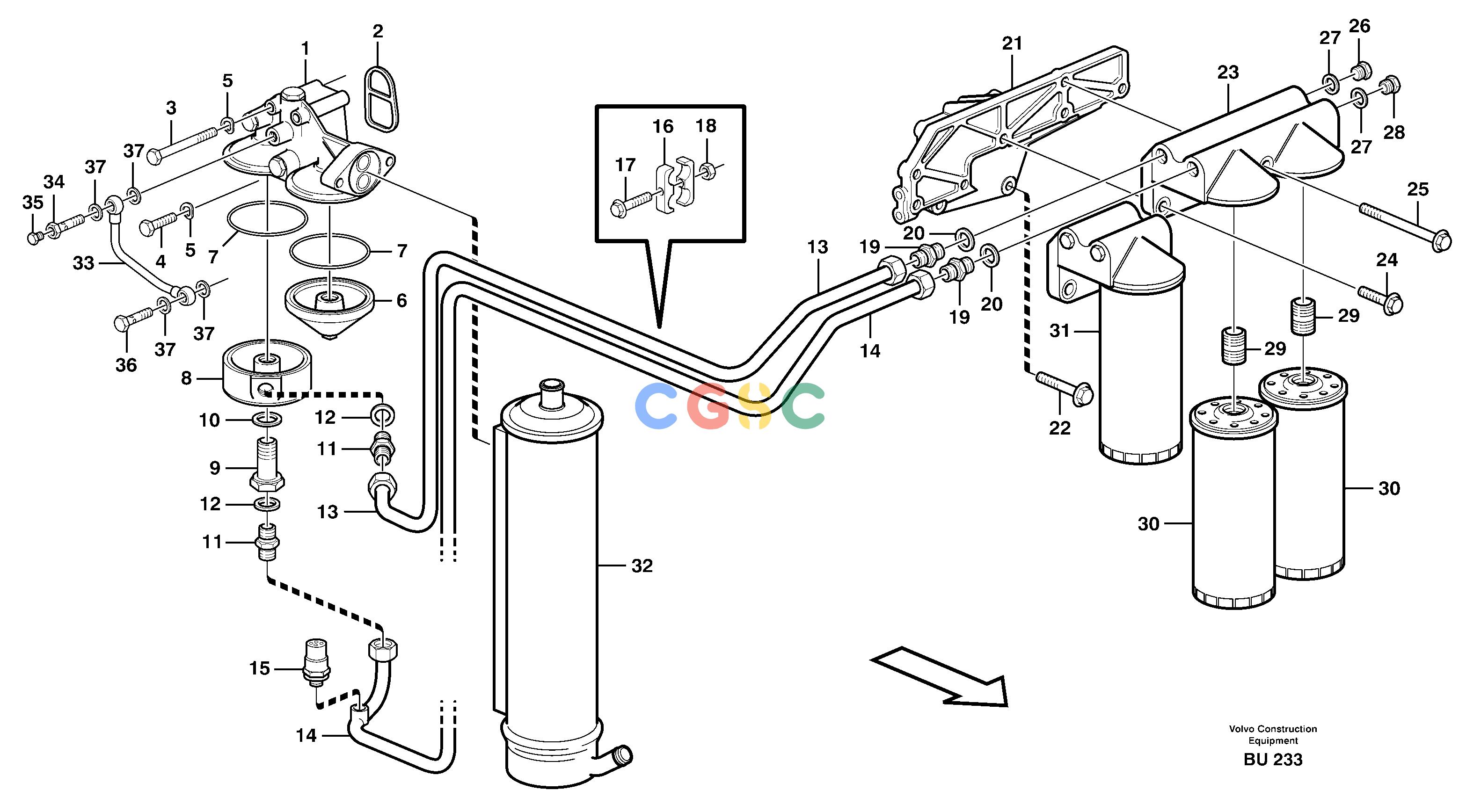

沃尔沃零件查询A25D Oil filterS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil filter housing
|
|
| 2. |
VOE469487
|
[1] |
Gasket
|
|
| 3. |
VOE955544
|
[2] |
Hexagon screw
|
|
| 4. |
VOE13940115
|
[2] |
Screw
|
|
| 5. |
VOE13942336
|
[4] |
Spring washer
|
|
| 6. |
VOE3828030
|
[1] |
Cover
|
|
| 7. |
VOE13948981
|
[2] |
O-ring
|
|
| 8. |
VOE11031906
|
[1] |
Cover
|
|
| 9. |
VOE11031907
|
[1] |
Reduction nipple
|
|
| 10. |
VOE11032095
|
[1] |
Gasket
|
|
| 11. |
VOE947554
|
[2] |
Nipple
|
|
| 12. |
VOE948885
|
[2] |
Plane gasket
|
|
| 13. |
VOE11162590
|
[1] |
Oil feed pipe
|
|
| 14. |
VOE11162591
|
[1] |
Oil return pipe
|
|
| 15. |
VOE1077574
|
[1] |
Sensor
|
SE2202,SE2203
|
| 16. |
VOE947219
|
[4] |
Clamp
|
|
| 17. |
VOE965212
|
[2] |
Flange screw
|
|
| 18. |
VOE13945407
|
[2] |
Nut
|
|
| 19. |
VOE947554
|
[2] |
Nipple
|
|
| 20. |
VOE948885
|
[2] |
Plane gasket
|
|
| 21. |
VOE11162008
|
[1] |
Anchorage
|
|
| 22. |
|
[4] |
Screw
|
|
| 23. |
VOE11031901
|
[1] |
Oil filter housing
|
|
| 24. |
VOE13946752
|
[3] |
Screw
|
|
| 25. |
VOE968237
|
[1] |
Flange screw
|
|
| 26. |
VOE13960634
|
[1] |
Plug
|
|
| 27. |
VOE948885
|
[2] |
Plane gasket
|
|
| 28. |
VOE11030447
|
[1] |
Plug
|
|
| 29. |
VOE466623
|
[2] |
Nipple
|
|
| 30. |
VOE21707133
|
[2] |
Oil filter
|
|
| 31. |
|
[1] |
Oil filter
|
BY PASS
|
| 32. |
|
[1] |
Oil cooler
|
|
| 33. |
VOE422819
|
[1] |
Delivery pipe
|
|
| 34. |
VOE13942008
|
[1] |
Hollow screw
|
|
| 35. |
VOE479979
|
[1] |
Plug
|
|
| 36. |
VOE942007
|
[1] |
Hollow screw
|
|
| 37. |
VOE13947624
|
[4] |
Plane gasket
|
|
