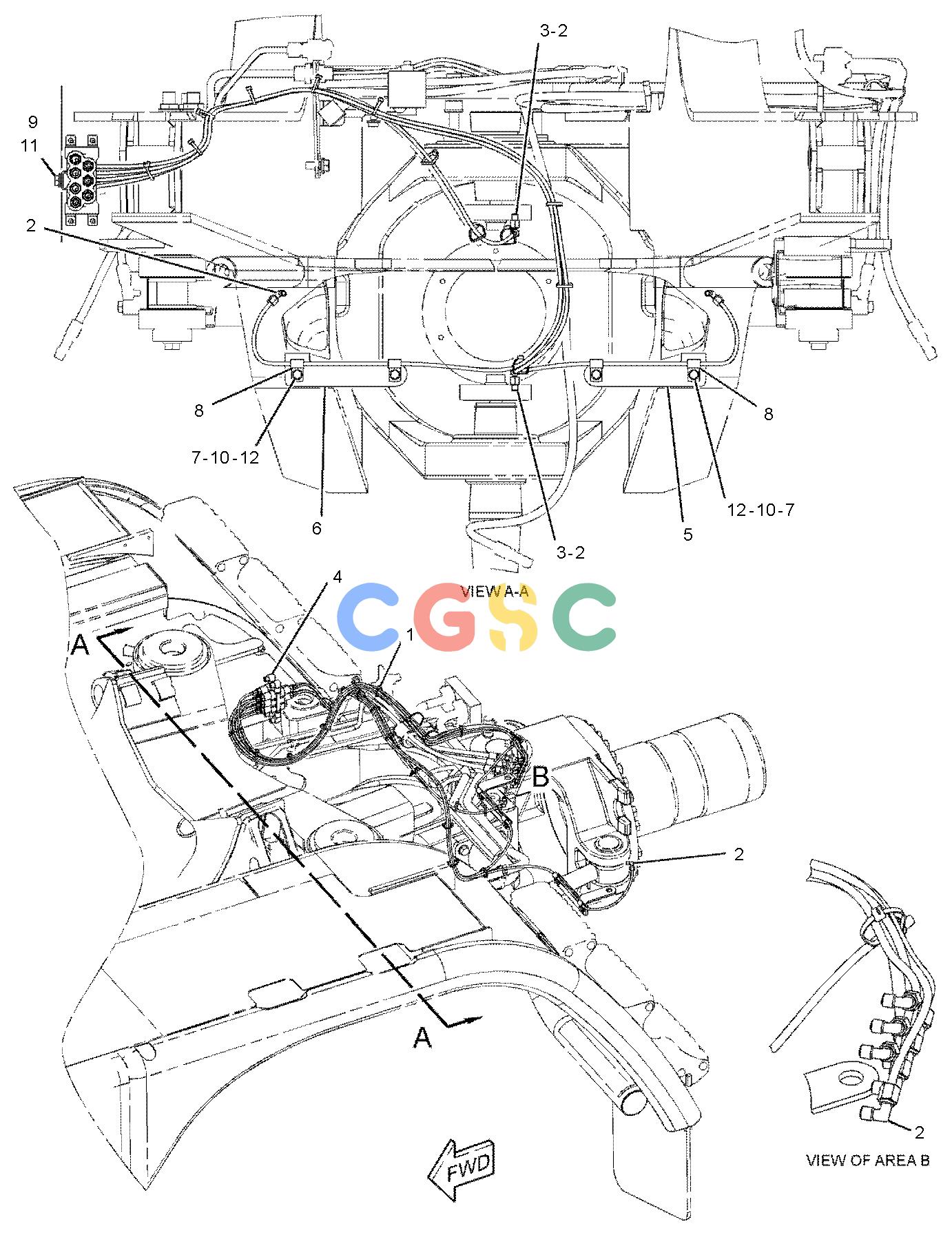

卡特零件查询（725） 220-7495: LINES GP-AUTOMATIC LUBRICATION
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [15] | STRAP-CABLE | |
| 2. | 177-3464 | [11] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 177-3475 | [2] | CONNECTOR(REDUCER) | |
| 4. | 220-7497Y | [1] | VALVE GP-LUBE DISTRIBUTION(FRONT, 12-INJECTOR) | |
| 5. | 267-1115 | [1] | BRACKET(LH) | |
| 6. | 267-1116 | [1] | BRACKET(RH) | |
| 7. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 8. | 5P-9085 | [4] | CLIP(LOOP) | |
| 9. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 11. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 12. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
