久保田零件查询C41500 FRAME CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
863 次

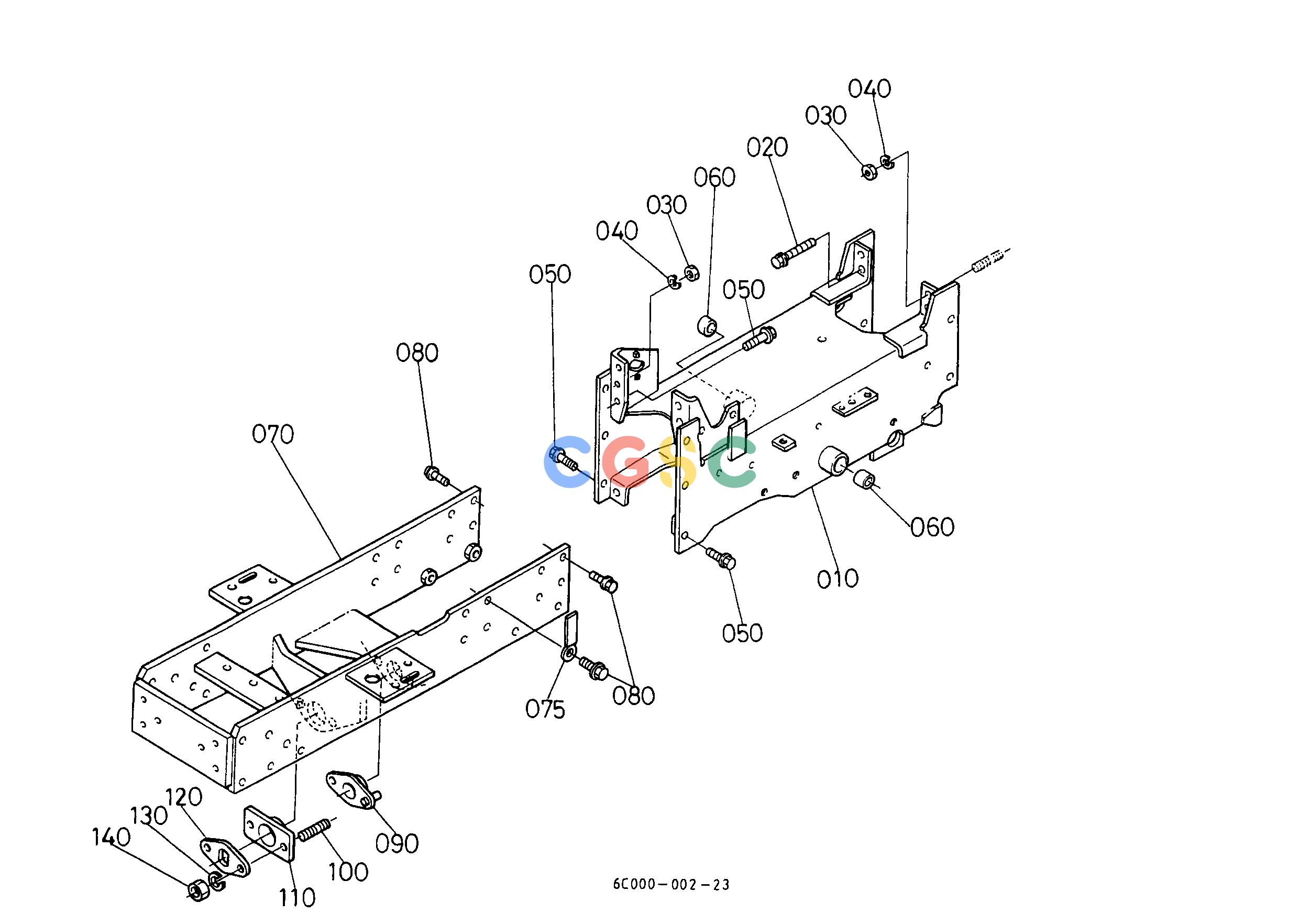

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04051118
|
[1] |
COMP.FRAME
|
33.0000(lbs); 15.000
|
| 010. |
6C04051124
|
[1] |
COMP.FRAME CENTER
|
34.5400(lbs); 15.700
|
| 020. |
0112351265
|
[2] |
BOLT
|
0.1386(lbs); 0.063
|
| 030. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
0451260120
|
[8] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 050. |
0112351230
|
[12] |
BOLT
|
0.0880(lbs); 0.040
|
| 060. |
0851102515
|
[2] |
BUSH
|
0.0264(lbs); 0.012
|
| 070. |
6C04078214
|
[1] |
COMP.FRAME FRONT
|
41.3600(lbs); 18.800
|
| 075. |
3534029380
|
[1] |
CLAMP CORD
|
0.0220(lbs); 0.010
|
| 080. |
0113351025
|
[16] |
BOLT
|
0.0506(lbs); 0.023
|
| 090. |
6780051980
|
[1] |
BUSH
|
0.2750(lbs); 0.125
|
| 100. |
0151761025
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 110. |
6780051972
|
[1] |
BUSH
|
0.3300(lbs); 0.150
|
| 120. |
3270151960
|
[1] |
WASHER LOCK
|
0.1980(lbs); 0.090
|
| 130. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 140. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
