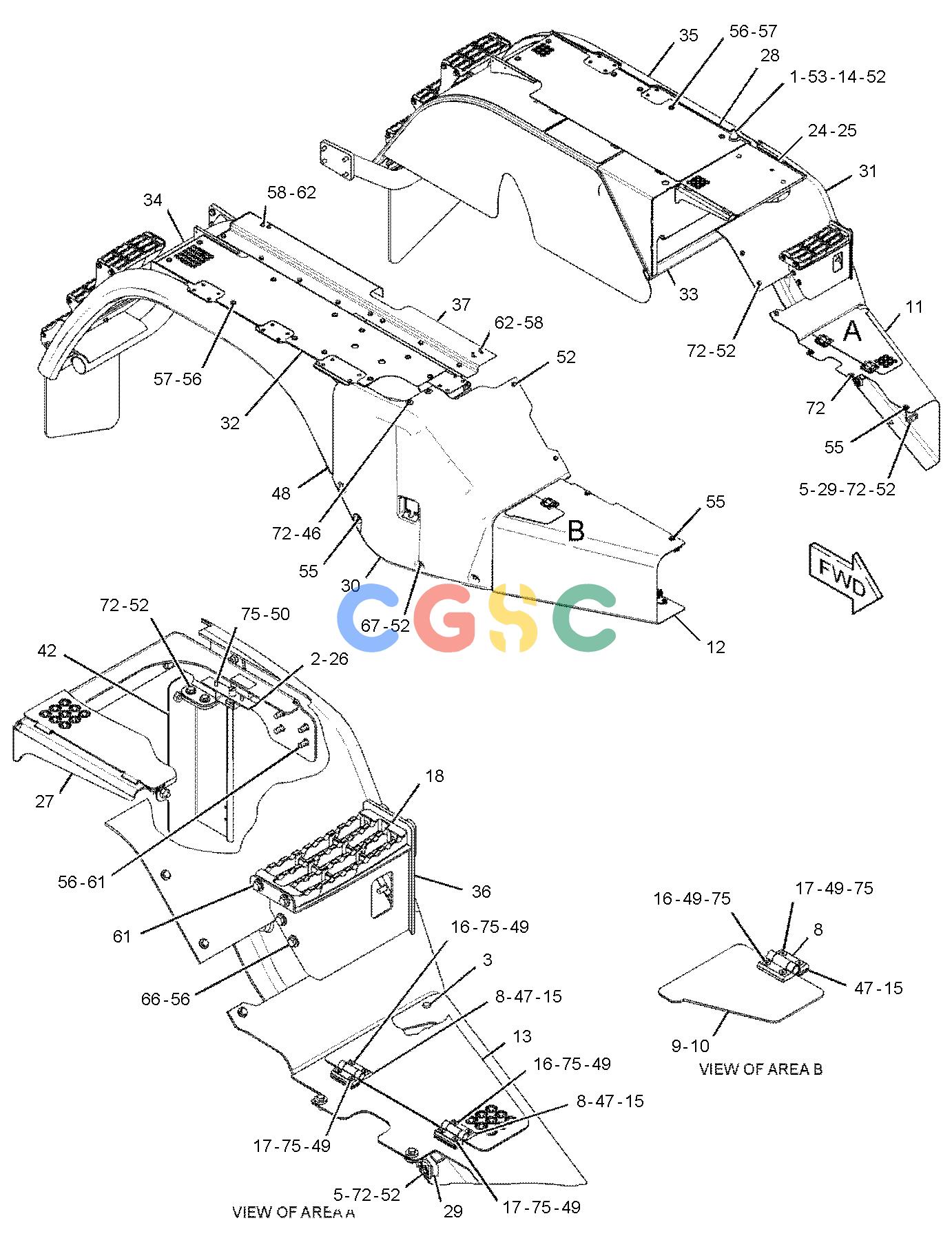

卡特零件查询（725） 308-4147: FENDER GP
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3W-7412 | [1] | BUMPER-CONICAL | |
| 2. | 5U-4229 | [1] | LATCH | |
| 3. | 6U-5960 | [5] | GROMMET | |
| 4. | 091-0081 | [8] | SPACER(10.5X20X10-MM THK) | |
| 5. | 178-7385 | [4] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 6. | 185-3794 | [2] | DEFLECTOR | |
| 7. | 185-3795 | [2] | PLATE | |
| 8. | 189-0602 | [3] | HINGE AS | |
| 9. | 189-1516 | [1] | PLATE | |
| 10. | 189-2910 | [1] | GASKET-RUBBER | |
| 11. | 190-8678 | [1] | COVER(LH) | |
| 12. | 190-8680 | [1] | COVER(RH) | |
| 13. | 193-2126 | [1] | COVER AS | |
| 14. | 198-4776 | [1] | WASHER-HARD(8.8X20X8-MM THK) | |
| 15. | 203-2354B | [3] | PLATE | |
| 16. | 205-5148 | [6] | SCREW-FLAT HEAD(M6X1X25-MM) | |
| 17. | 205-5149M | [6] | SCREW-FLAT HEAD(M6X1X30-MM) | |
| 18. | 239-5015 | [7] | STEP | |
| 19. | 242-5559 | [1] | SUPPORT(RH) | |
| 20. | 242-5560 | [1] | SUPPORT(LH) | |
| 21. | 242-6985 | [10] | SPACER(14X32X23 THK) | |
| 22. | 242-8219 | [1] | BRACKET AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 23. | 246-5351 | [1] | PLATE | |
| 24. | 253-3669 | [1] | PLATE AS-TREAD(FRONT, LH) | |
| 25. | 253-3671 | [3] | GASKET | |
| 26. | 253-5657B | [3] | SHIM(1-MM THK) | |
| 27. | 253-6048 | [1] | SUPPORT AS | |
| 28. | 253-7685 | [1] | PLATE-TREAD(REAR, LH) | |
| 29. | 263-0402 | [4] | PLATE | |
| 30. | 305-8492 | [1] | COVER-TANK | |
| 31. | 305-8493 | [1] | COVER-TANK | |
| 32. | 305-8494 | [1] | PLATE-TREAD | |
| 33. | 305-8520 | [1] | FENDER AS(LH) | |
| | 8T-3490M | [15] | NUT-WELD(M10X1.5-THD) | |
| | 305-8523 | [1] | PLATE AS | |
| 34. | 305-8531 | [1] | FENDER AS(RH) | |
| | 8T-3490M | [24] | NUT-WELD(M10X1.5-THD) | |
| | 313-1232 | [1] | PLATE AS | |
| 35. | 305-8549 | [1] | COVER-FENDER(LH) | |
| 36. | 305-8550 | [1] | STEP AS | |
| 37. | 306-5844 | [1] | PANEL GP-FENDER | |
| 38. | 306-5850 | [1] | PLATE AS-STEP | |
| 39. | 306-5852 | [1] | PLATE AS-STEP | |
| 40. | 306-5854 | [1] | PLATE AS-STEP | |
| 41. | 306-5856 | [1] | PLATE AS-STEP | |
| 42. | 306-6328 | [1] | PLATE AS | |
| 43. | 306-6330 | [1] | PLATE-COVER | |
| 44. | 315-5392 | [1] | SUPPORT AS(REAR, RH) | |
| 45. | 315-5394 | [1] | SUPPORT AS(REAR, LH) | |
| 46. | 156-0283 | [2] | WASHER-HARD(8.4X35X2.5-MM THK) | |
| 47. | 189-0599 | [6] | PLATE | |
| 48. | 305-8495 | [1] | COVER-FENDER(RH) | |
| 49. | 5C-2890M | [12] | NUT(M6X1-THD) | |
| 50. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 51. | 5P-1076 | [7] | WASHER-HARD(13.5X30X4-MM THK) | |
| 52. | 5P-4116 | [25] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 53. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 54. | 7X-0579 | [10] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 55. | 7X-0613 | [8] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 56. | 7X-7729 | [92] | WASHER(11X25X3-MM THK) | |
| 57. | 8C-8585M | [17] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 58. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 59. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 60. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 61. | 8T-4136M | [31] | BOLT(M10X1.5X25-MM) | |
| 62. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 63. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 64. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 65. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 66. | 8T-4186M | [10] | BOLT(M10X1.5X40-MM) | |
| 67. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 68. | 8T-4197M | [10] | BOLT(M8X1.25X40-MM) | |
| 69. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 70. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 71. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 72. | 8T-4908M | [28] | BOLT(M8X1.25X25-MM) | |
| 73. | 8T-7338M | [8] | BOLT(M16X2X45-MM) | |
| 74. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 75. | 9X-8256 | [14] | WASHER(6.6X12X2-MM THK) | |
| 76. | 8T-4196M | [24] | BOLT(M10X1.5X35-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
