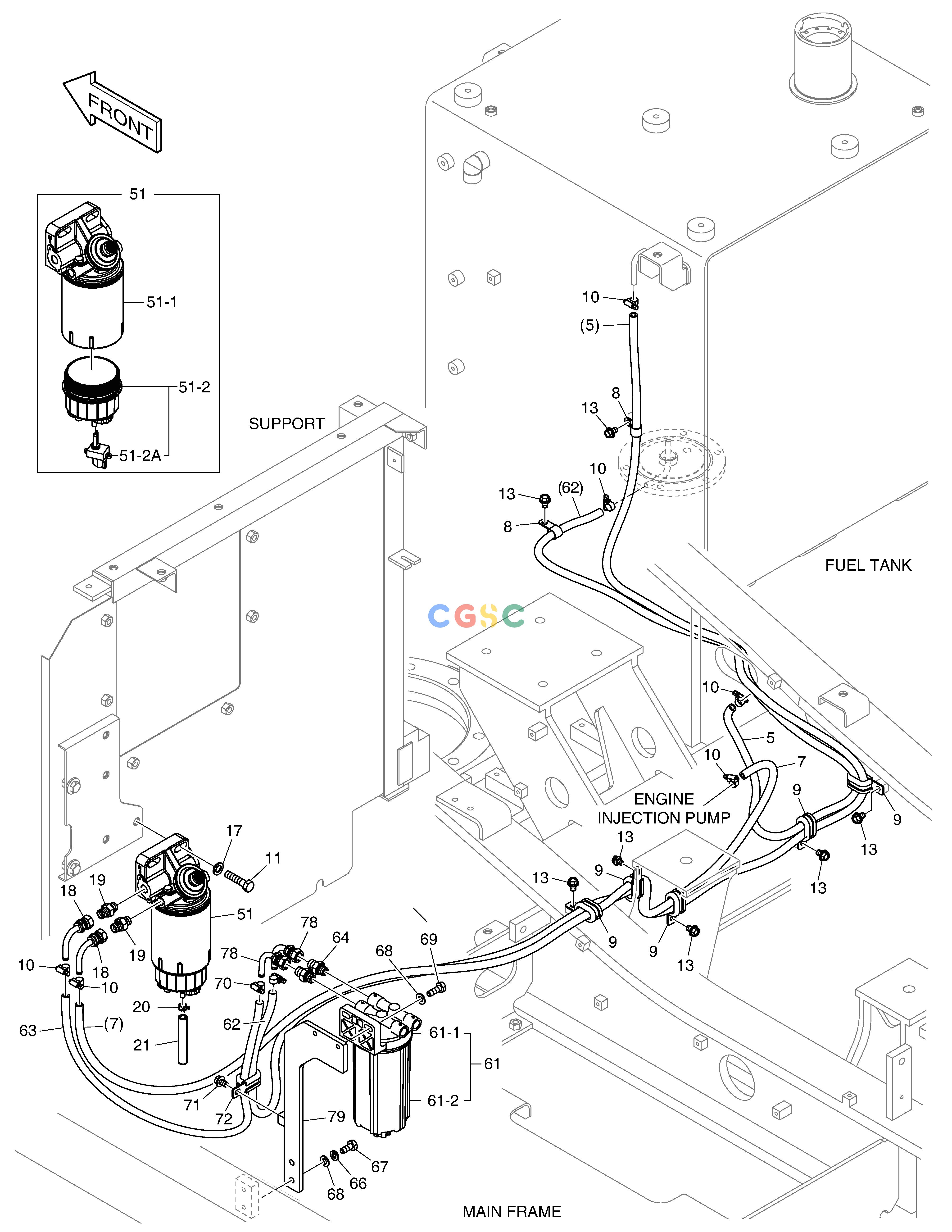

斗山零件查询FUEL PIPING DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
443 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1007631B
|
[-] |
FUEL PIPING
|
|
| 10. |
S8470014
|
[6] |
CLAMP
|
|
| 11. |
S0560666
|
[2] |
BOLT
|
|
| 13. |
K1001029
|
[7] |
BOLT
|
|
| 17. |
120804-00077
|
[2] |
WASHER
|
|
| 18. |
K1002864
|
[2] |
ELBOW
|
|
| 19. |
DS2479004
|
[2] |
ADAPTER
|
|
| 20. |
DS2807008
|
[1] |
|
|
| 21. |
DS2165001
|
[1] |
|
|
| 5. |
DS2105022
|
[1] |
HOSE
|
|
| 51. |
400403-00195
|
[1] |
|
400403-00195A
|
| 51. |
400403-00195A
|
[1] |
FILTER,FUEL PRE
|
|
| 51-1. |
400508-00084
|
[1] |
. CARTRIDGE ASSY,FILTER
|
|
| 51-2. |
110964-00022
|
[1] |
. BOWL
|
|
| 51-2A. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 61. |
240304-00025A
|
[1] |
|
240304-00025B
|
| 61. |
240304-00025B
|
[1] |
|
|
| 61-1. |
400612-00083
|
[1] |
. GASKET
|
|
| 61-2. |
400508-00104
|
[1] |
. CARTRIDGE
|
|
| 62. |
DS2105026
|
[1] |
HOSE
|
|
| 63. |
DS2105029
|
[1] |
HOSE D8.73-D15.08-580L
|
DS2105109
|
| 63. |
DS2105109
|
[1] |
|
|
| 64. |
DS2479004
|
[2] |
ADAPTER
|
|
| 66. |
S5102603
|
[2] |
. WASHER
|
|
| 67. |
S0512066
|
[2] |
. BOLT
|
|
| 68. |
120804-00076
|
[4] |
WASHER
|
|
| 69. |
S0512266
|
[2] |
BOLT
|
|
| 7. |
DS2105063
|
[1] |
|
|
| 70. |
S8470014
|
[2] |
CLAMP
|
|
| 71. |
K1001029
|
[1] |
BOLT
|
|
| 72. |
124-00209D1
|
[1] |
CLIP
|
|
| 78. |
K1002864
|
[2] |
ELBOW
|
|
| 79. |
110413-00188
|
[1] |
|
|
| 8. |
2124-1509D2
|
[2] |
CLIP
|
|
| 9. |
124-00209D1
|
[5] |
CLIP
|
|
