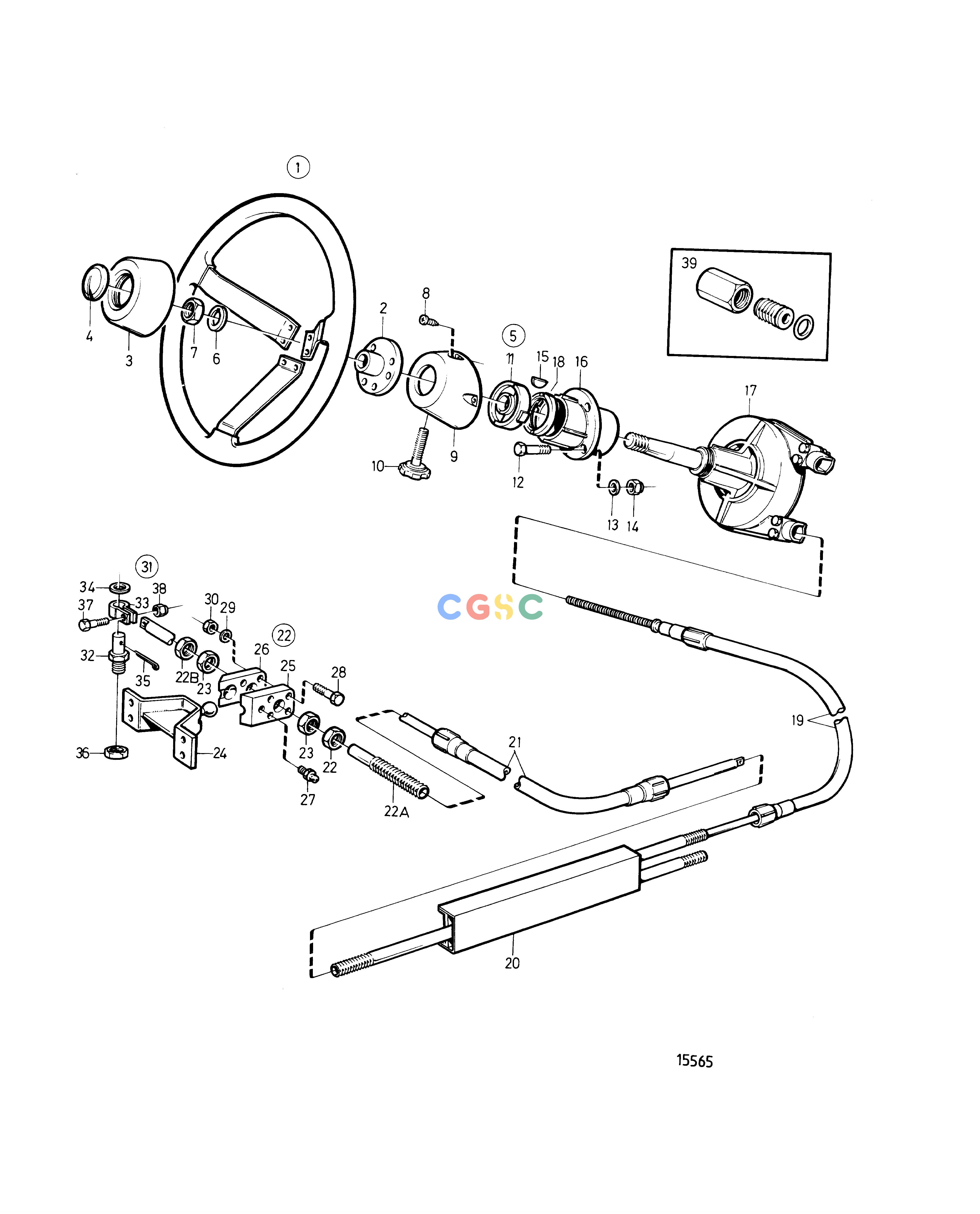

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DSteering SystemSteering System STS330EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850936
|
[1] |
Steering wheel
|
|
| 2. |
|
|
|
|
| 3. |
828943
|
[1] |
Steering wheel cushi
|
|
| 4. |
1140660
|
[1] |
Emblem
|
(850938)
|
| 5. |
3883509
|
[1] |
Mounting kit
|
90° white (853182)
|
| 5. |
3818098
|
[1] |
Mounting kit
|
90° black (1140023)
|
| 5. |
3883508
|
[1] |
Mounting kit
|
70° white (853183)
|
| 5. |
3818096
|
[1] |
Mounting kit
|
|
| 6. |
3851613
|
[1] |
Washer
|
|
| 7. |
955793
|
[1] |
Hexagon nut
|
|
| 8. |
965325
|
[2] |
Cross recessed screw
|
|
| 9. |
|
|
|
|
| 10. |
3851612
|
[1] |
Screw
|
|
| 11. |
3851611
|
[2] |
Bearing
|
|
| 12. |
955298
|
[4] |
Hexagon screw
|
|
| 13. |
955894
|
[4] |
Washer
|
|
| 14. |
946036
|
[4] |
Lock nut
|
|
| 15. |
160807
|
[1] |
Woodruff key
|
|
| 16. |
|
|
|
|
| 17. |
3818019
|
[1] |
Steering gear
|
(853181)
|
| 18. |
3851614
|
[1] |
Nut
|
|
| 19. |
3840244
|
[1] |
Steering cable
|
L=2,00m
|
| 19. |
3840245
|
[1] |
Steering cable
|
L=2,25m
|
| 19. |
3840246
|
[1] |
Steering cable
|
L=2,50m
|
| 19. |
3840247
|
[1] |
Steering cable
|
L=2,75m
|
| 19. |
3840248
|
[1] |
Steering cable
|
L=3,00m
|
| 19. |
3840249
|
[1] |
Steering cable
|
L=3,25m
|
| 19. |
3840250
|
[1] |
Steering cable
|
L=3,50m
|
| 19. |
3840251
|
[1] |
Steering cable
|
L=3,75m
|
| 19. |
3840252
|
[1] |
Steering cable
|
L=4,00m
|
| 19. |
3840253
|
[1] |
Steering cable
|
L=4,25m
|
| 19. |
3840254
|
[1] |
Steering cable
|
L=4,50m
|
| 19. |
3840255
|
[1] |
Steering cable
|
L=4,75m
|
| 19. |
3840256
|
[1] |
Steering cable
|
L=5,00m
|
| 19. |
3840257
|
[1] |
Steering cable
|
L=5,25m
|
| 19. |
3840258
|
[1] |
Steering cable
|
L=5,50m
|
| 19. |
3840259
|
[1] |
Steering cable
|
L=5,75m
|
| 19. |
3840260
|
[1] |
Steering cable
|
L=6,00m
|
| 19. |
3840261
|
[1] |
Steering cable
|
L=6,25m
|
| 19. |
3840262
|
[1] |
Steering cable
|
L=6,50m
|
| 19. |
3840263
|
[1] |
Steering cable
|
L=6,75m
|
| 19. |
3840264
|
[1] |
Steering cable
|
L=7,00m
|
| 19. |
3840265
|
[1] |
Steering cable
|
L=7,25m
|
| 19. |
3840266
|
[1] |
Steering cable
|
L=7,50m
|
| 19. |
3840267
|
[1] |
Steering cable
|
L=7,75m
|
| 19. |
3840268
|
[1] |
Steering cable
|
L=8,00m
|
| 19. |
3840270
|
[1] |
Steering cable
|
L=8,25m
|
| 19. |
3840272
|
[1] |
Steering cable
|
L=8,50m
|
| 19. |
3840273
|
[1] |
Steering cable
|
L=8,75m
|
| 19. |
3840274
|
[1] |
Steering cable
|
L=9,00m
|
| 20. |
853291
|
[1] |
Ds unit
|
|
| 21. |
853387
|
[1] |
Anode
|
|
| 22. |
853290
|
[1] |
Stern attachment
|
|
| 22A. |
850771
|
[1] |
Anchorage
|
|
| 22B. |
850778
|
[2] |
Nut
|
|
| 23. |
853306
|
[2] |
Nut
|
|
| 24. |
851093
|
[1] |
Bracket
|
|
| 25. |
828857
|
[1] |
Anchorage
|
|
| 26. |
828854
|
[1] |
Anchorage
|
|
| 27. |
951739
|
[1] |
Lubricating nipple
|
|
| 28. |
940101
|
[2] |
Hexagon screw
|
|
| 29. |
941906
|
[2] |
Spring washer
|
|
| 30. |
963105
|
[2] |
Lock nut
|
|
| 31. |
828924
|
[1] |
Ball joint kit
|
|
| 32. |
|
|
|
|
| 33. |
851116
|
[1] |
Bracket
|
|
| 34. |
955897
|
[1] |
Washer
|
|
| 35. |
967707
|
[1] |
Split pin
|
|
| 36. |
963119
|
[1] |
Lock nut
|
|
| 37. |
851118
|
[1] |
Shoulder screw
|
|
| 38. |
966171
|
[1] |
Lock nut
|
|
| 39. |
853214
|
[1] |
Adapter
|
For alternative steering cables.
|
