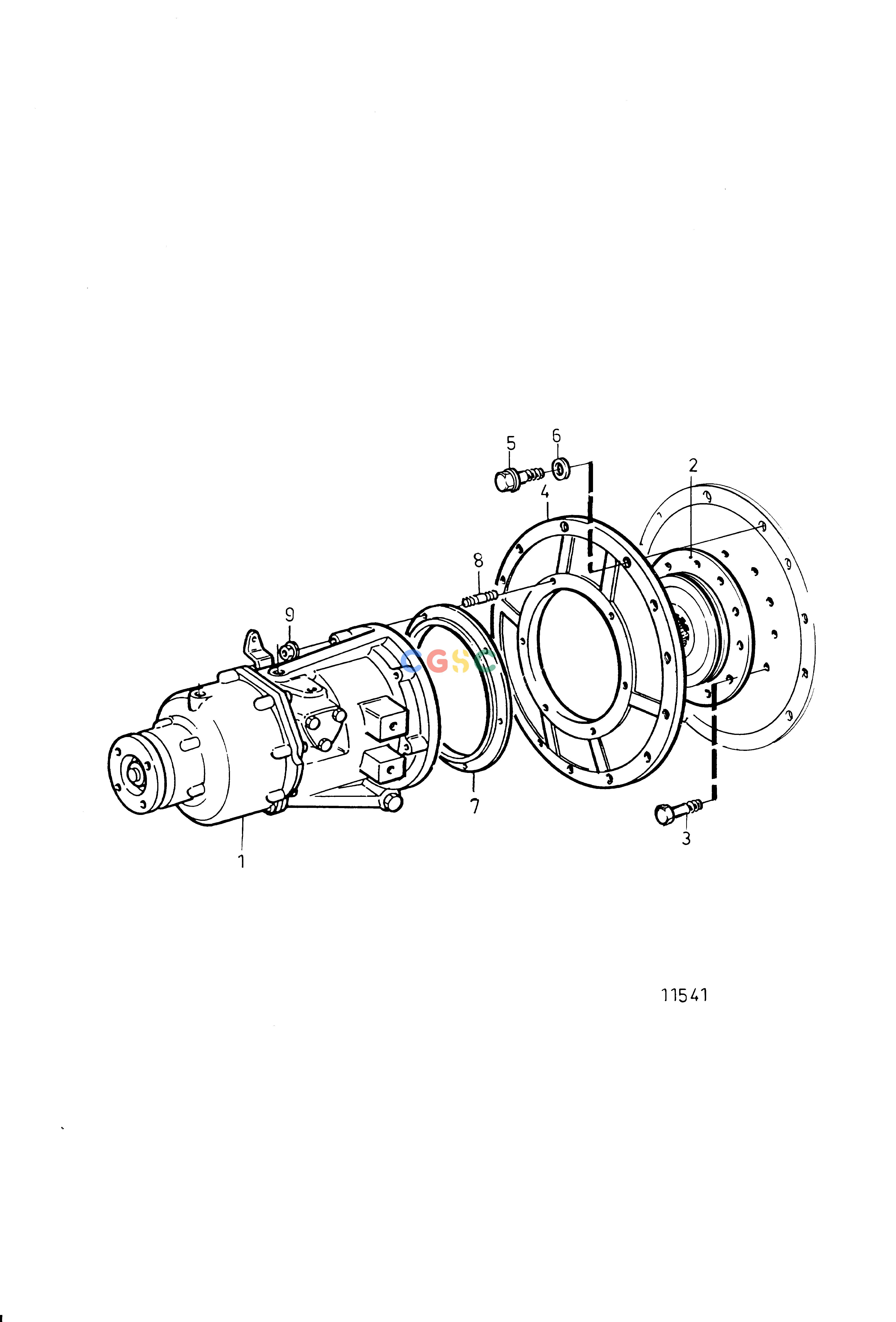

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ||||
| 2. | 854753 | [1] | Vibration damper | |
| 3. | 946173 | [9] | Flange screw | |
| 4. | 829489 | [1] | Cap | |
| 5. | 946752 | [11] | Flange screw | |
| 6. | 941908 | [11] | Spring washer | |
| 7. | 859566 | [1] | Spacer ring | |
| 8. | 953084 | [6] | Stud | |
| 9. | 971095 | [6] | Flange nut |
广数供应链运营团队, 14 02月, 2025，浏览： 659 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ||||
| 2. | 854753 | [1] | Vibration damper | |
| 3. | 946173 | [9] | Flange screw | |
| 4. | 829489 | [1] | Cap | |
| 5. | 946752 | [11] | Flange screw | |
| 6. | 941908 | [11] | Spring washer | |
| 7. | 859566 | [1] | Spacer ring | |
| 8. | 953084 | [6] | Stud | |
| 9. | 971095 | [6] | Flange nut |
