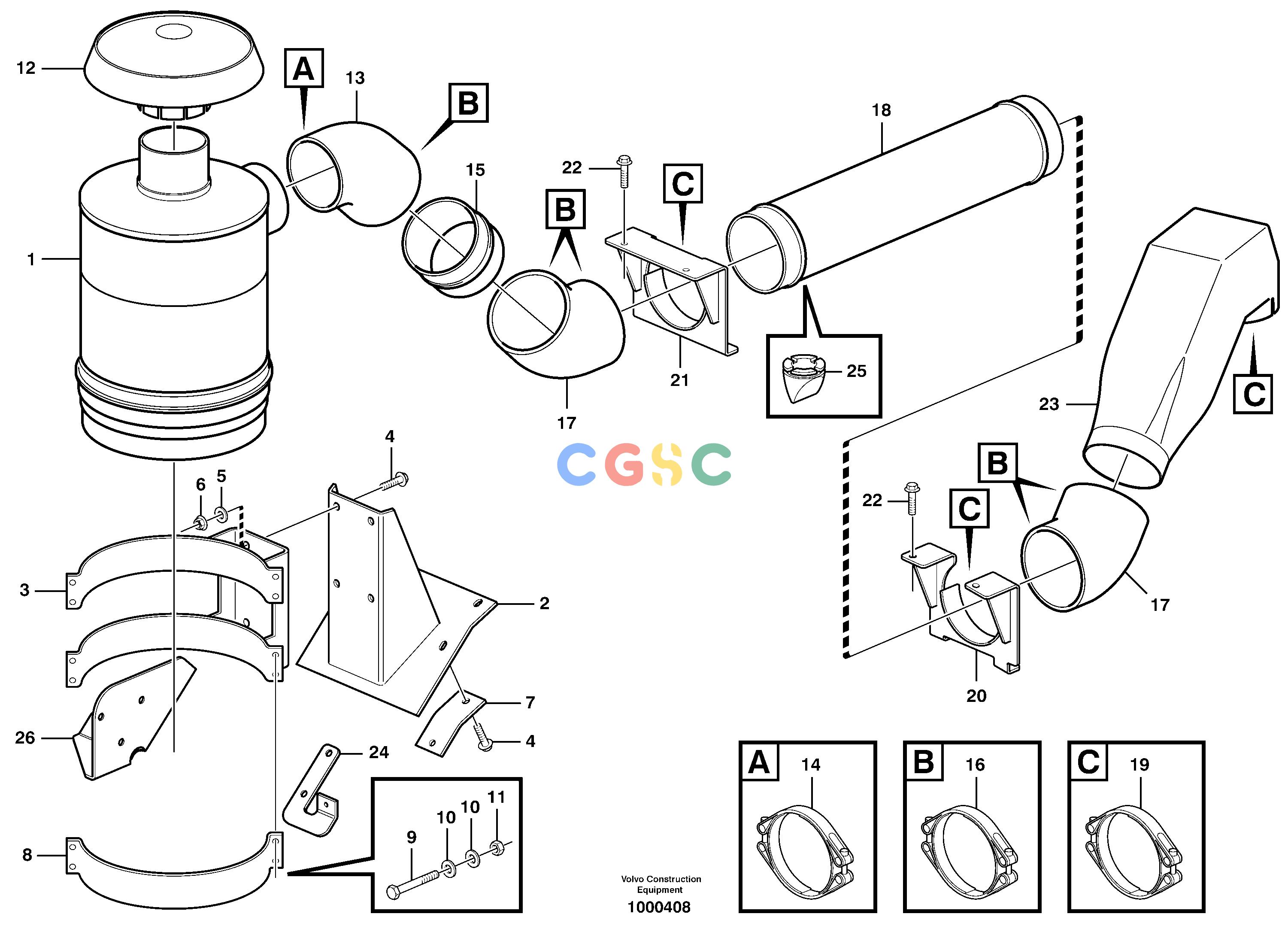

沃尔沃零件查询A25D Oil bath air filter with fitting partsS/N -12999, - 61118 USA NoneNone81092Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil Bath Air Cl
|
E PROD
|
| |
|
[1] |
Oil Bath Air Cl
|
L PROD
|
| 2. |
VOE11121001
|
[1] |
Bracket
|
|
| 3. |
VOE11051515
|
[1] |
Attachment
|
|
| 4. |
VOE60113094
|
[5] |
Flange screw
|
|
| |
VOE13965185
|
[1] |
Screw
|
|
| 5. |
VOE930842
|
[4] |
Plain washer
|
|
| 6. |
VOE13971098
|
[4] |
Flange nut
|
|
| 7. |
VOE11121207
|
[1] |
Plate
|
|
| 8. |
VOE11052124
|
[2] |
Brace
|
|
| 9. |
VOE13965182
|
[8] |
Screw
|
|
| 10. |
VOE11055605
|
[16] |
Plain washer
|
|
| |
VOE11190217
|
[8] |
Spacer sleeve
|
|
| 11. |
VOE948645
|
[8] |
Flange lock nut
|
|
| 12. |
VOE11110260
|
[1] |
Cover
|
|
| 13. |
VOE11121174
|
[1] |
Hose
|
|
| 14. |
VOE11191149
|
[1] |
Hose clamp
|
|
| 15. |
VOE11121216
|
[1] |
Tube
|
|
| 16. |
VOE11191150
|
[5] |
Hose clamp
|
|
| 17. |
VOE11121175
|
[2] |
Hose
|
|
| 18. |
VOE11121176
|
[1] |
Tube
|
|
| 19. |
VOE11191150
|
[3] |
Hose clamp
|
|
| 20. |
VOE11121380
|
[1] |
Bracket
|
|
| 21. |
VOE11121378
|
[1] |
Bracket
|
|
| 22. |
VOE946329
|
[4] |
Flange screw
|
|
| 23. |
VOE11121179
|
[1] |
Adapter
|
|
| 24. |
VOE11121178
|
[1] |
Bracket
|
|
| 25. |
VOE11121437
|
[1] |
Valve
|
|
| 26. |
VOE15021750
|
[1] |
Bracket
|
|
