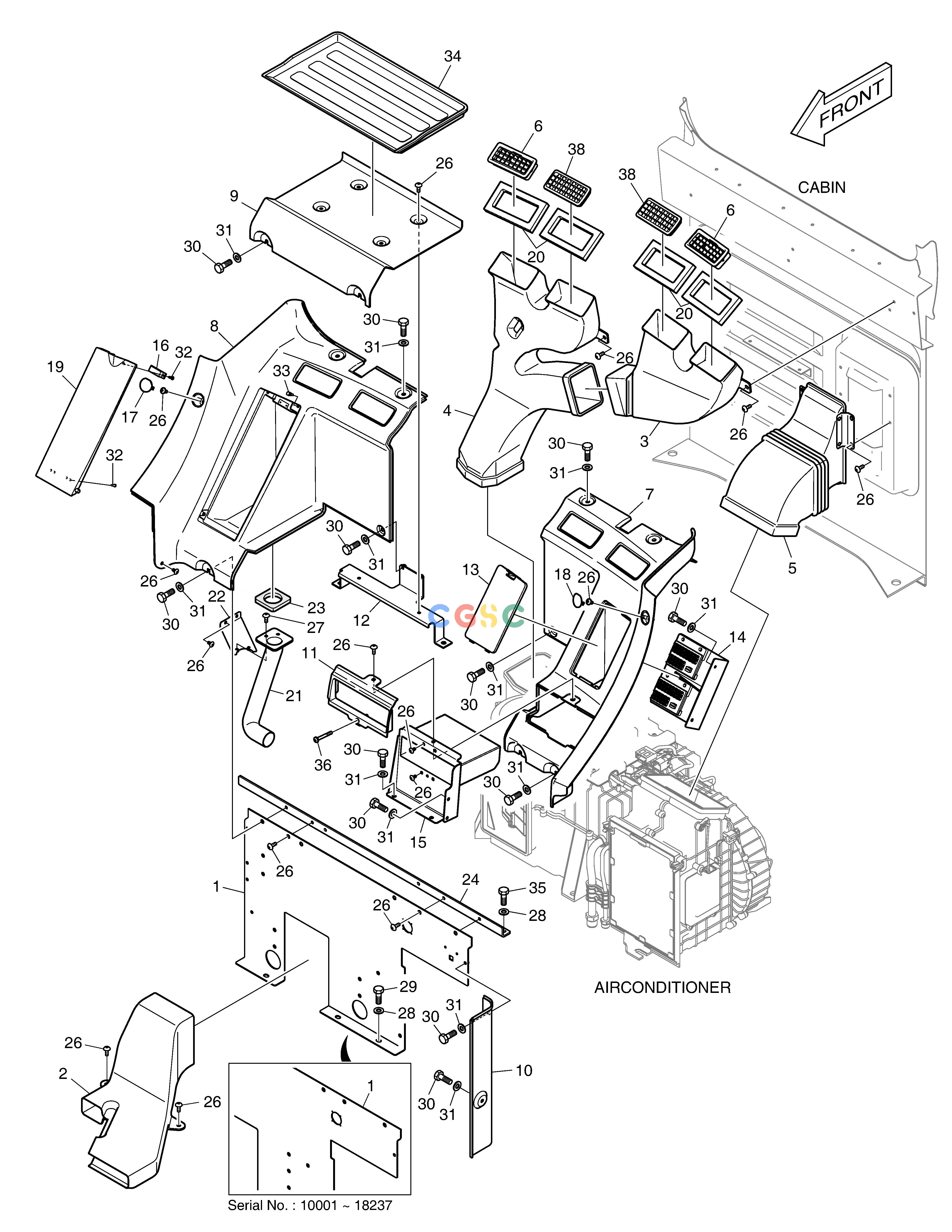

斗山零件查询HEATER COVER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
564 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650103-00002C
|
[-] |
|
|
| -. |
650103-00002G
|
[-] |
|
|
| 1. |
621-02894G
|
[1] |
COVER;REAR LOWER
|
250120-00220
|
| 1. |
250120-00220
|
[1] |
|
|
| 10. |
110517-00802
|
[1] |
COVER,SIDE;REAR(L.H)
|
|
| 11. |
110508-16007
|
[1] |
COVER,STEREO UP
|
|
| 12. |
K1001295B
|
[1] |
PLATE
|
|
| 13. |
110508-16008
|
[1] |
COVER
|
|
| 14. |
195-02771C
|
[1] |
BRACKET;FUSE BOX
|
|
| 15. |
110406-02099
|
[1] |
BRACKET;STEREO
|
|
| 16. |
2125-1095A
|
[1] |
CATCH
|
|
| 17. |
110508-19912
|
[1] |
|
|
| 18. |
110508-19913
|
[1] |
|
|
| 19. |
110508-16009
|
[1] |
COVER
|
|
| 2. |
460103-00039B
|
[1] |
DUCT,FOOT
|
|
| 20. |
180102-00915
|
[4] |
FOAM
|
|
| 21. |
460103-00832
|
[1] |
DUCT,AIR BOX
|
|
| 22. |
195-02774A
|
[1] |
BRACKET,AIR DUCT MOUNT
|
|
| 23. |
161-00622
|
[1] |
FOAM;AIR SEAL
|
|
| 24. |
195-02785E
|
[1] |
BRACKET,CROSS BAR
|
|
| 26. |
2120-2166D10
|
[19] |
SCREW
|
|
| 27. |
2120-2166D53
|
[2] |
. SCREW
|
|
| 28. |
2114-1898D14
|
[5] |
WASHER
|
|
| 29. |
2120-2166D12
|
[3] |
BOLT
|
|
| 3. |
460103-00829
|
[1] |
DUCT,REAR(L.H)
|
|
| 30. |
2120-2166D36
|
[19] |
BOLT
|
|
| 31. |
2114-1898D5
|
[19] |
WASHER
|
|
| 32. |
S3644163
|
[8] |
SCREW
|
|
| 33. |
K1002385
|
[2] |
STOPPER
|
|
| 34. |
101555-00255
|
[1] |
PAD
|
|
| 35. |
2120-2166D5
|
[2] |
BOLT
|
|
| 36. |
2120-2166D58
|
[1] |
BOLT
|
|
| 38. |
101546-00011
|
[2] |
LOUVER
|
|
| 4. |
460103-00830
|
[1] |
DUCT,REAR(R.H)
|
|
| 5. |
460103-00831
|
[1] |
DUCT,AIR INLET
|
|
| 6. |
101546-00015
|
[2] |
NOZZLE,REAR
|
|
| 7. |
110508-16004
|
[1] |
COVER,REAR(L.H)
|
|
| 8. |
110508-16005
|
[1] |
COVER,REAR(R.H)
|
|
| 9. |
110508-16006
|
[1] |
COVER,REAR CENTER
|
|
