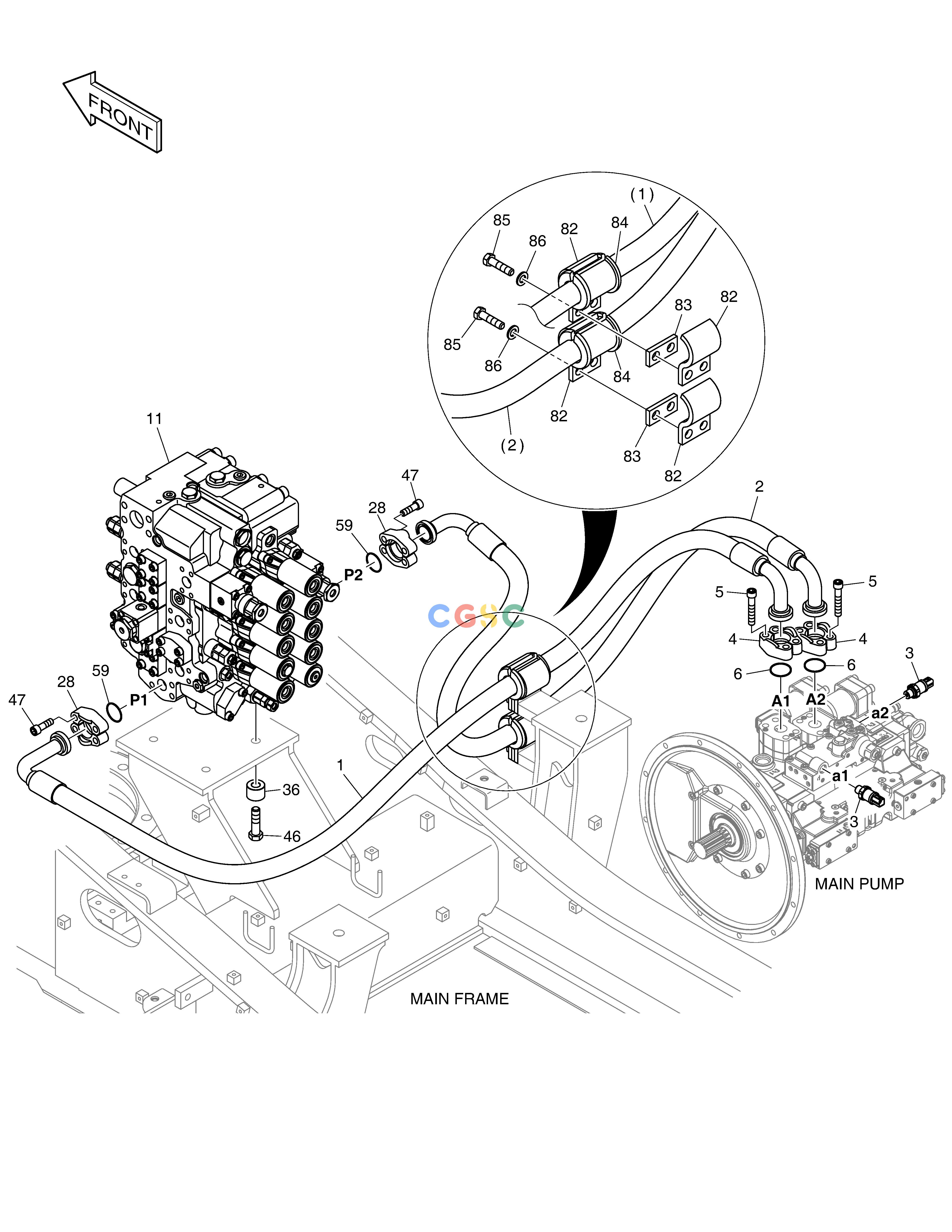

斗山零件查询MAIN PIPING(1) - PUMP DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13877
|
[-] |
|
|
| 1. |
DS2045880
|
[1] |
|
|
| 11. |
410105-01220A
|
[1] |
|
|
| 2. |
DS2045881
|
[1] |
|
|
| 2. |
DS2045901
|
[1] |
|
|
| 28. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 3. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 36. |
114-00425
|
[4] |
SPACER
|
|
| 4. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 46. |
S0565466
|
[4] |
BOLT
|
|
| 47. |
S2215466
|
[8] |
BOLT
|
|
| 5. |
S2216066
|
[8] |
BOLT;SOCKET
|
|
| 59. |
DS2856003
|
[2] |
O-RING
|
|
| 6. |
2180-1026D19
|
[2] |
O-RING
|
|
| 82. |
120208-00304
|
[4] |
|
|
| 83. |
110951-01570
|
[2] |
|
|
| 84. |
180308-00576
|
[2] |
|
|
| 85. |
S0560766
|
[4] |
BOLT M12X1.75X50
|
|
| 86. |
120804-00077
|
[4] |
WASHER
|
|
