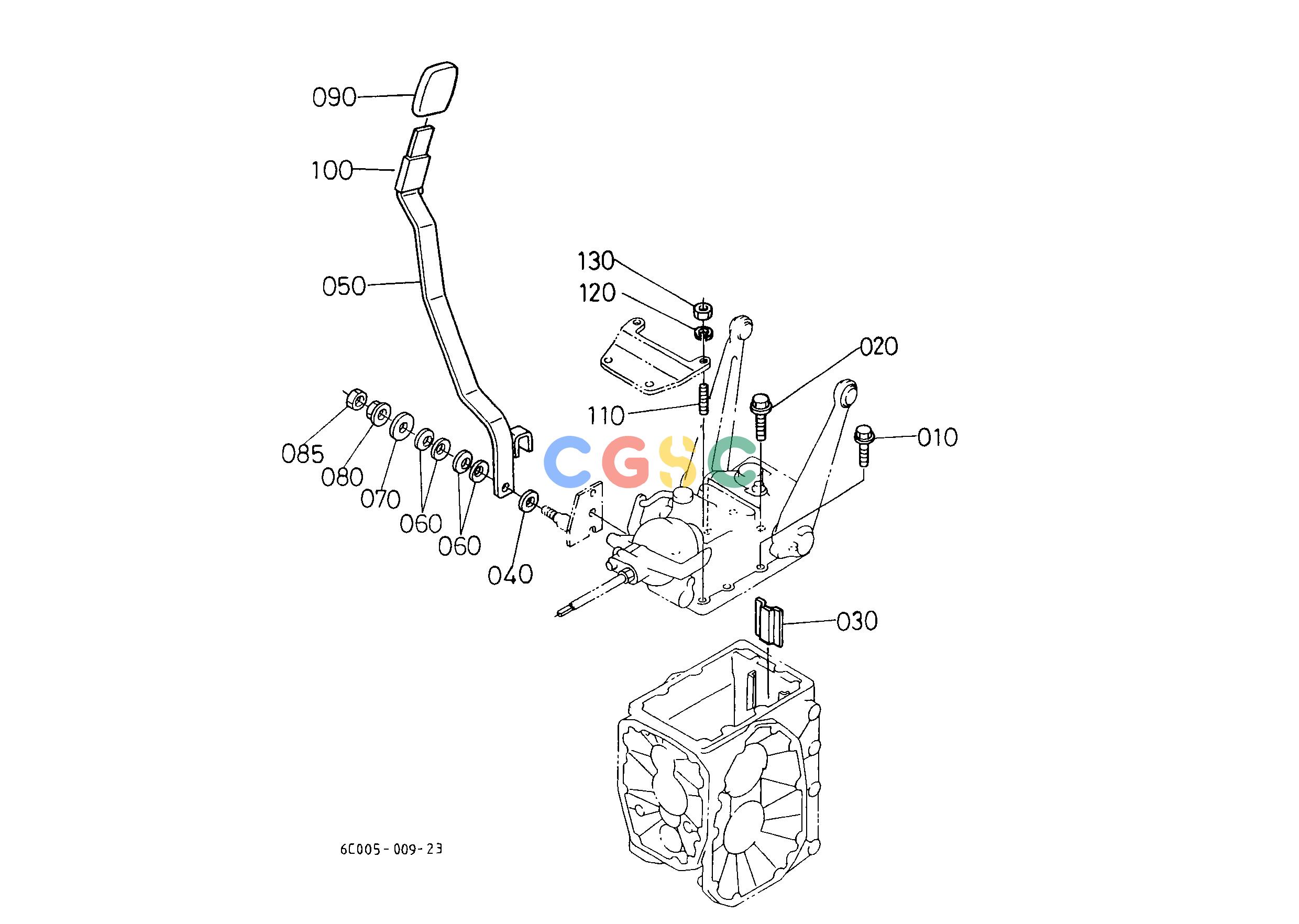

久保田零件查询F14000 POSITION CONTROL LEVER MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
855 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0112351035
|
[5] |
BOLT
|
0.0550(lbs); 0.025
|
| 020. |
0112351045
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 030. |
6C04036750
|
[1] |
STOPPER
|
0.4884(lbs); 0.222
|
| 040. |
6C04036920
|
[1] |
COLLAR
|
0.0044(lbs); 0.002
|
| 050. |
6C04036284
|
[1] |
LEVER HYD.CONTROL
|
1.2100(lbs); 0.550
|
| 060. |
6C04036880
|
[4] |
SPRING PLATE
|
0.0066(lbs); 0.003
|
| 070. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
0212150080
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 085. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 090. |
3139536880
|
[1] |
GRIP LEVER
|
0.0880(lbs); 0.040
|
| 100. |
6C04042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 110. |
0155551035
|
[2] |
STUD
|
0.0638(lbs); 0.029
|
| 120. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 130. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
