沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DTransmissionsGreaser and Stuffing BoxEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
997 次

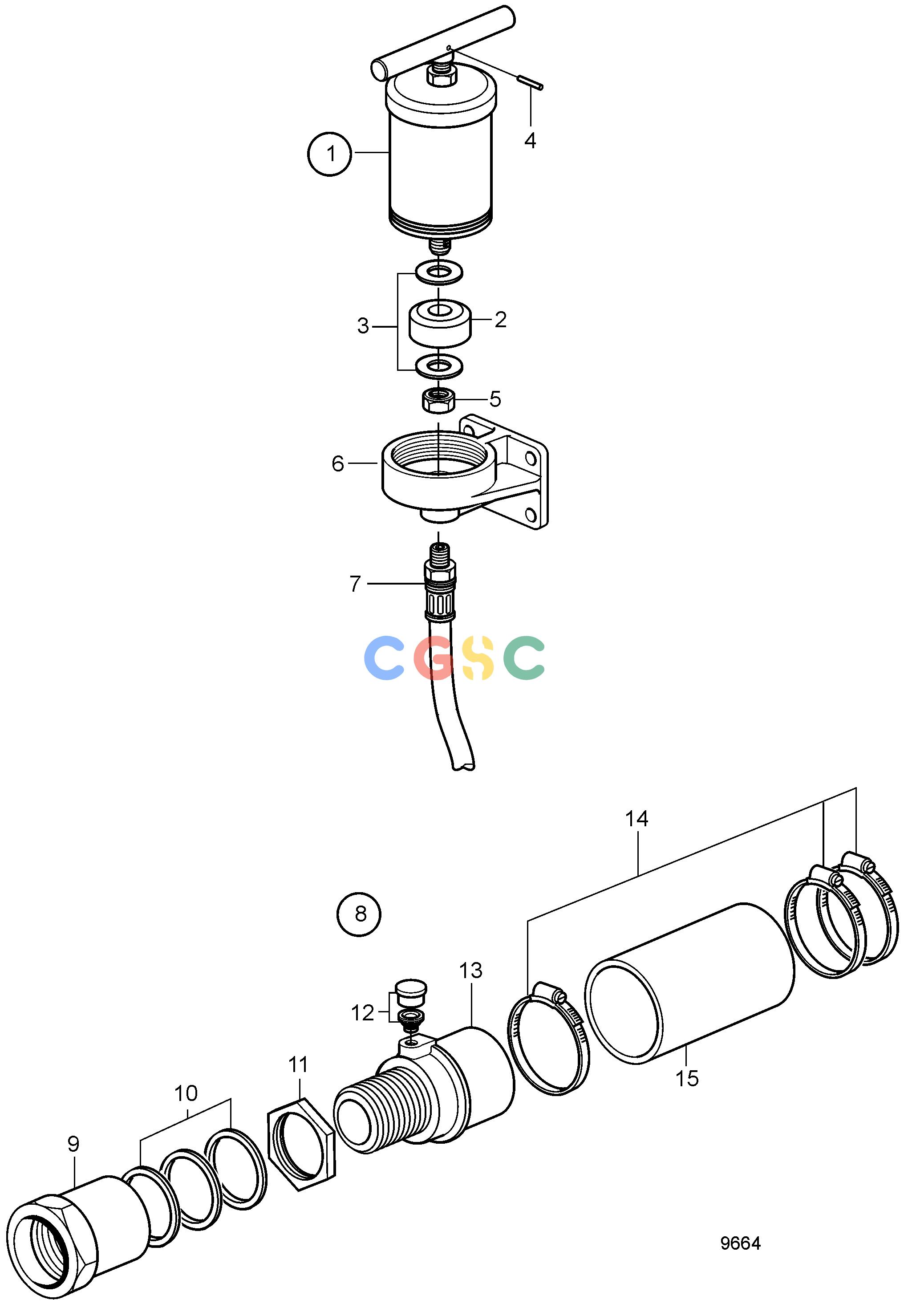

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827184
|
[1] |
Grease press
|
|
| 2. |
815579
|
[1] |
Leather gaiter
|
|
| 3. |
948087
|
[2] |
Washer
|
|
| 4. |
907173
|
[1] |
Grooved pin
|
|
| 5. |
950354
|
[1] |
Lock nut
|
|
| 6. |
|
|
|
|
| 7. |
833842
|
[1] |
Hose
|
|
| 8. |
859013
|
[1] |
Stuffing box
|
D=30mm
|
| 8. |
859014
|
[1] |
Stuffing box
|
D=35mm
|
| 9. |
|
|
|
|
| 10. |
859006
|
[3] |
Box gasket
|
D=30mm
|
| 10. |
859007
|
[3] |
Box gasket
|
D=35mm
|
| 11. |
|
|
|
|
| 12. |
914138
|
[1] |
Lubricator
|
|
| 13. |
|
|
|
|
| 14. |
961674
|
[3] |
Hose clamp
|
|
| 15. |
825673
|
[1] |
Rubber hose
|
D=30mm
|
| 15. |
827179
|
[1] |
Rubber hose
|
D=35mm
|
