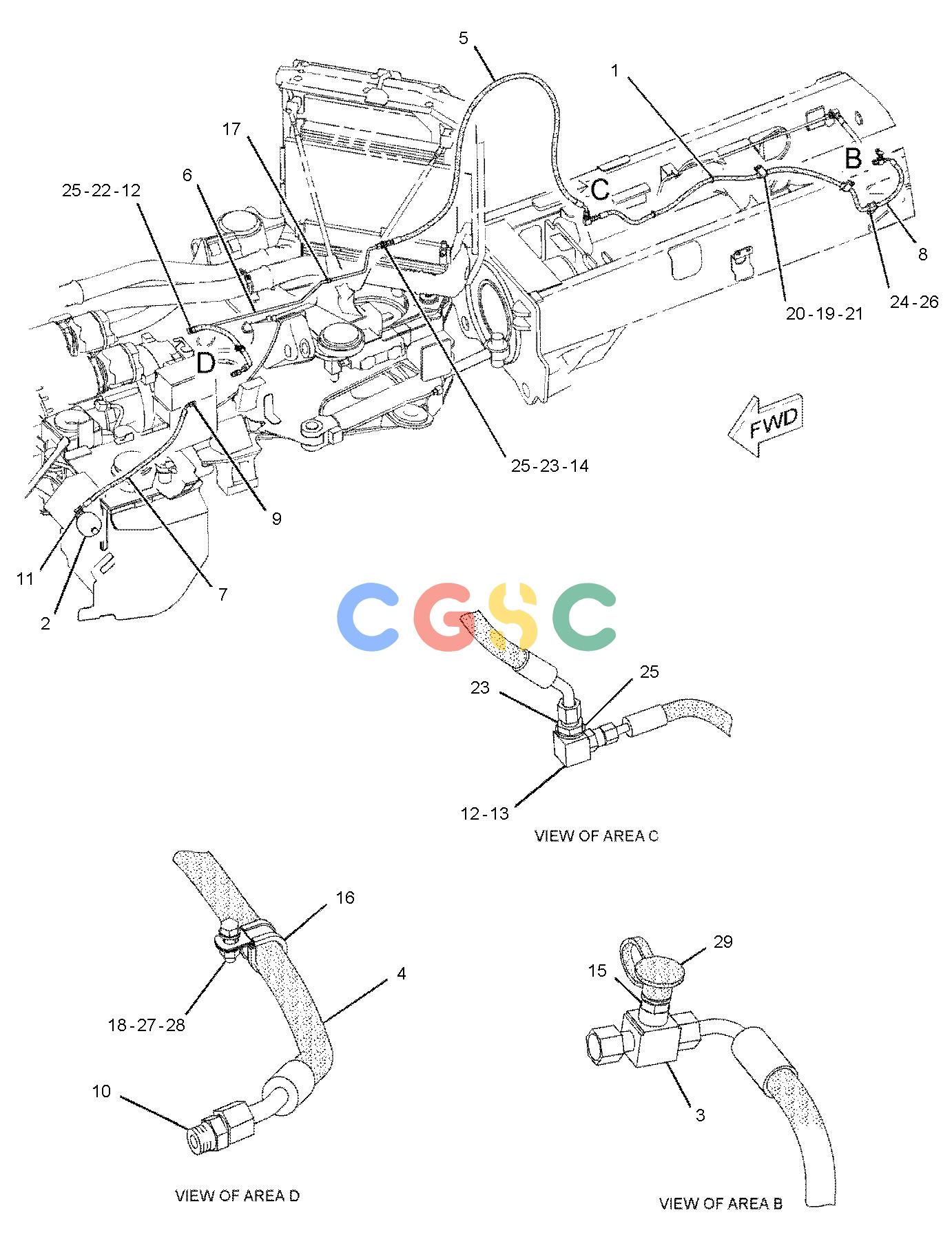

卡特零件查询（725） 234-5592: LINES GP-PARKING BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
210 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 163-5632Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED)(PARKING) | |
| 3. | 148-8424 | [1] | TEE AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| 4. | 173-2969I | [1] | HOSE AS | |
| 5. | 179-9407I | [1] | HOSE AS | |
| 6. | 179-9420 | [1] | TUBE AS | |
| 7. | 215-8907I | [1] | HOSE AS | |
| 8. | 247-1783I | [1] | HOSE AS | |
| 9. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 10. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 11. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 12. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 13. | 148-8415 | [1] | REDUCER AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8936 | [1] | REDUCER | |
| 14. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 15. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 16. | 3U-2428 | [1] | CLAMP-PIPE | |
| 17. | 3U-2752 | [1] | CLIP(LOOP) | |
| 18. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 19. | 5P-7462 | [3] | CLIP(SLOT) | |
| 20. | 5P-7463 | [3] | CLIP(TAB) | |
| 21. | 6V-0683 | [3] | GROMMET | |
| 22. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 23. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 24. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4123 | [3] | WASHER(3.62X5.75X0.375-MM THK) | |
| 26. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 29. | 6V-0852 | [1] | CAP-DUST | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
