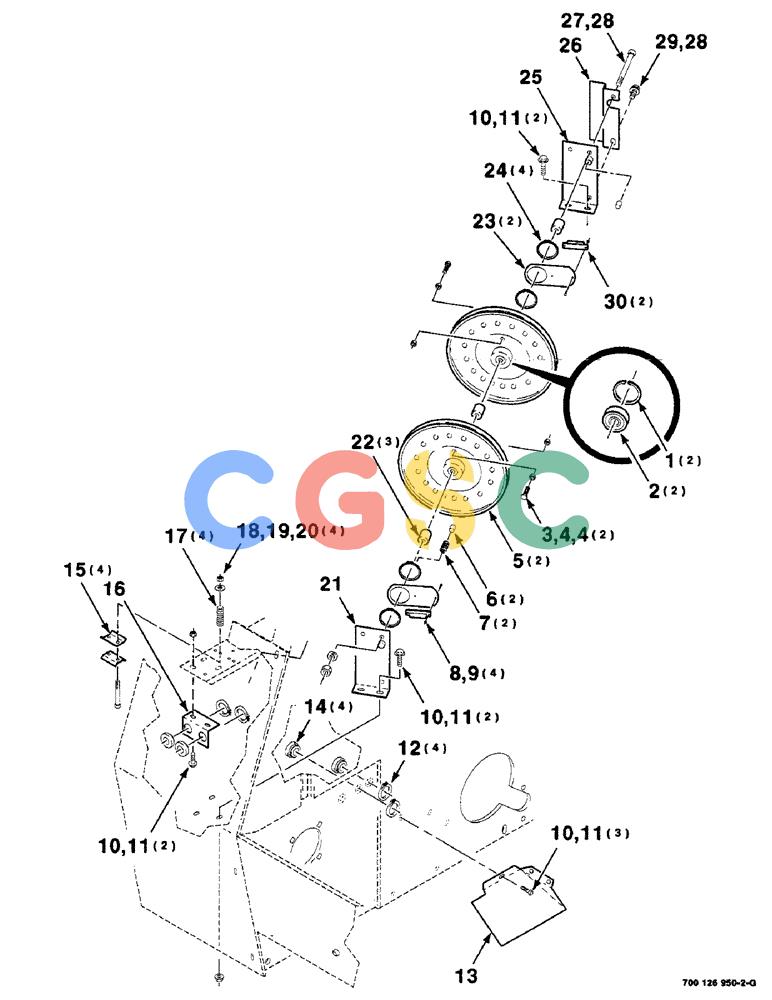

| 1. |
100-21118
|
[2] |
SNAP RING,1.188", Int, #118
|
CAS
Ring, Snap, 1.188", Int, #118 Superseded by part number: 129738
|
| 2. |
D38346
|
[2] |
BALL BEARING,10 mm ID x 30 mm OD x 9 mm
|
CAS
BEARING - cylindrical Superseded by part number: 9847562
|
| 3. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 4. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 5. |
700116222
|
[2] |
PULLEY ASSY.
|
HFI
PULLEY ASSEMBLY (Includes items 1 and 2)
|
| 6. |
700122575
|
[2] |
BUTTON
|
CAS
- nylon
|
| 7. |
700717466
|
[2] |
SPRING
|
CAS
- compression
|
| 8. |
700710188
|
[4] |
SCREW
|
CAS
#6-32 X 3/4 CRPHMS GR2
|
| 9. |
700710189
|
[4] |
LOCK NUT
|
CAS
#6-32 LHSN
|
| 10. |
121-115
|
[9] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 11. |
231-5145
|
[9] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT - hex serrated flange, 5/16 inch NC Superseded by part number: 72187067, 145458
|
| 12. |
100-11100
|
[4] |
SNAP RING,#100, Ext
|
CAS
Ring, Snap, #100, Ext Superseded by part number: 25121
|
| 13. |
700126369
|
[1] |
SHIELD
|
HFI
|
| 14. |
700107977
|
[4] |
GUIDE
|
CAS
- twine
|
| 15. |
6549869
|
[4] |
SUPPORT
|
L
BRACKET - tension
|
| 16. |
700119984
|
[1] |
SUPPORT
|
HFI
|
| 17. |
700707677
|
[4] |
SPRING
|
L
- compression
|
| 18. |
413-444
|
[4] |
BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5
|
CAS
1/4-20 X 2-3/4 C Superseded by part number: 72187194, 280566
|
| 19. |
496-11028
|
[4] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
1/4 HARDENED PLAIN WASHER Superseded by part number: 86632587
|
| 20. |
232-4114
|
[4] |
LOCK NUT,1/4"-20, GC
|
CAS
1/4-20 HTLN GR B Superseded by part number: 280129
|
| 21. |
700122990
|
[1] |
SUPPORT
|
HFI
WA - front
|
| 22. |
700116070
|
[3] |
SPACER
|
CAS
|
| 23. |
700128326
|
[2] |
PLATE
|
HFI
|
| 24. |
103-11200
|
[4] |
SNAP RING,#200, Ext
|
CAS
Ring, Snap, #200, Ext Superseded by part number: 27503
|
| 25. |
700122968
|
[1] |
SUPPORT
|
HFI
WA - rear
|
| 26. |
700119985
|
[1] |
SHIELD
|
HFI
|
| 27. |
413-688
|
[1] |
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
|
CAS
3/8-16 X 5-1/2 C Superseded by part number: 20304
|
| 28. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 29. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 30. |
700709996
|
[2] |
SWITCH
|
IH
ACTUATOR
|
