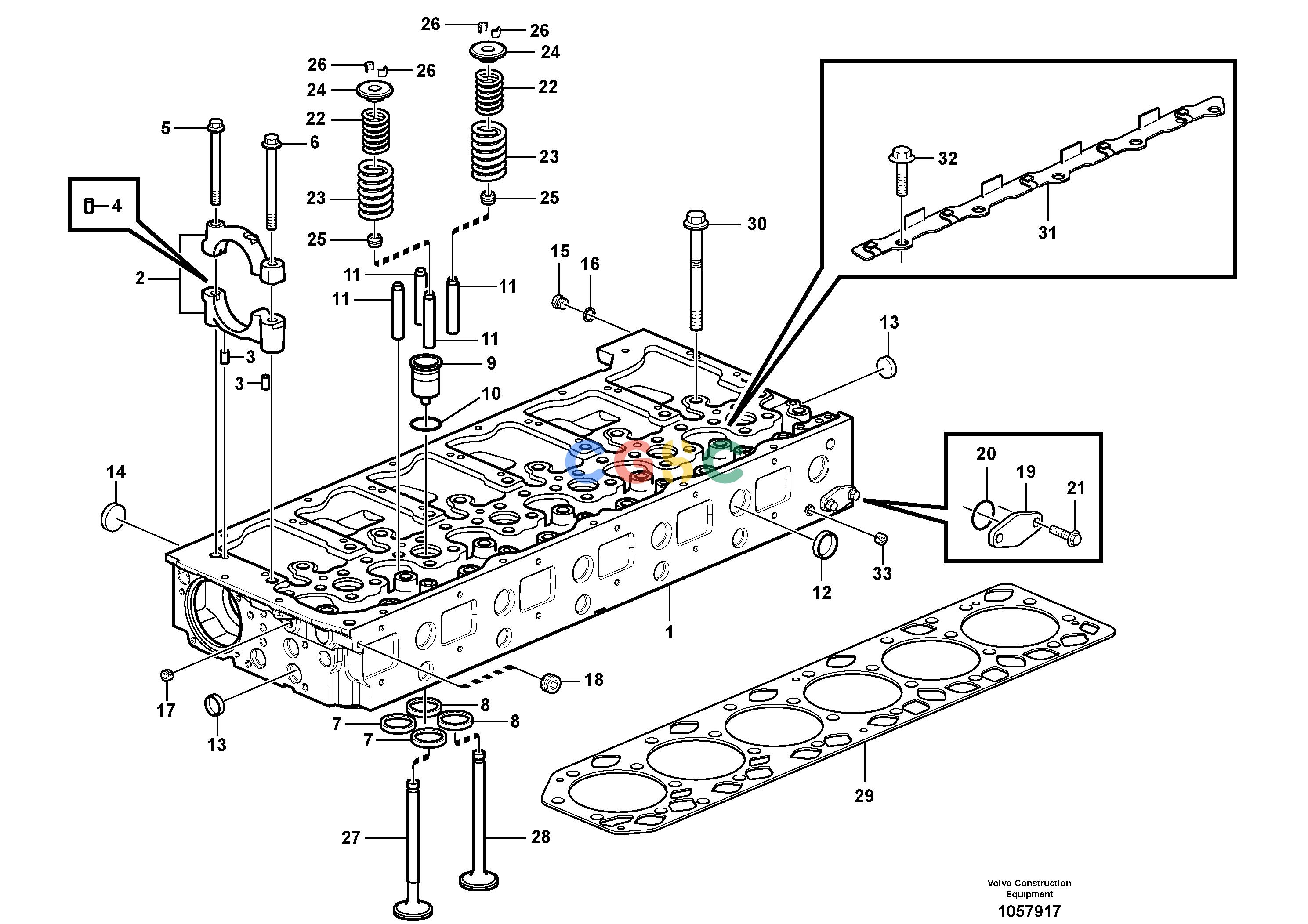

沃尔沃零件查询A25F Cylinder headNone84719-84718, 84720VOE84719NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21576296
|
[1] |
Cylinder head
|
|
| 1. |
VOE21576299
|
|
Cylinder head
|
|
| 2. |
VOE21012752
|
[1] |
Bearing housing
|
REAR
|
| 2. |
VOE20411303
|
[6] |
Bearing housing
|
|
| 3. |
VOE422426
|
[14] |
Pin
|
|
| 4. |
VOE950542
|
[7] |
Pin
|
|
| 5. |
VOE13975105
|
[7] |
Flange screw
|
|
| 6. |
VOE20412482
|
[7] |
Flange screw
|
|
| 7. |
VOE20509465
|
[12] |
Valve seat
|
INLET
|
| 7. |
VOE20737849
|
|
Valve seat
|
INLET
|
| 8. |
VOE20509467
|
[12] |
Valve seat
|
EXHAUST
|
| 9. |
VOE21515329
|
|
Injector sleeve
|
|
| 9. |
VOE20981856
|
[6] |
Sleeve
|
|
| 10. |
VOE20536487
|
[6] |
O-ring
|
|
| 11. |
VOE20905400
|
[24] |
Valve guide
|
|
| 12. |
VOE24426722
|
[6] |
Expansion plug
|
OD = 40 MM
|
| 13. |
VOE24426721
|
[18] |
Expansion plug
|
OD = 29 MM
|
| 14. |
VOE24426723
|
[5] |
Expansion plug
|
OD = 50 MM
|
| 15. |
VOE960628
|
[1] |
Plug
|
|
| 16. |
VOE13947281
|
[1] |
Gasket
|
|
| 17. |
VOE13968062
|
[2] |
Plug
|
|
| 18. |
VOE968060
|
[1] |
Plug
|
|
| 19. |
VOE20451868
|
[1] |
Plug
|
|
| 20. |
VOE949658
|
[1] |
O-ring
|
|
| 21. |
VOE946440
|
[1] |
Flange screw
|
L = 16 MM
|
| 21. |
VOE13946173
|
[1] |
Screw
|
L = 20 MM
|
| 22. |
VOE3183211
|
[24] |
Valve spring
|
|
| 23. |
VOE22691232
|
[24] |
Valve spring
|
|
| 24. |
VOE20510743
|
[24] |
Valve spring washer
|
|
| 25. |
VOE21990221
|
[24] |
Valve stem seal
|
|
| 26. |
VOE20510747
|
[48] |
Valve cotter
|
|
| 27. |
VOE20540017
|
[12] |
Inlet valve
|
|
| 27. |
VOE20737856
|
|
Inlet valve
|
|
| 28. |
VOE21430918
|
[12] |
Exhaust valve
|
|
| 29. |
VOE20495935
|
[1] |
Cylinder head gasket
|
|
| 30. |
VOE21345131
|
[26] |
Flange screw
|
|
| 31. |
VOE20563234
|
[1] |
Bracket
|
|
| 32. |
VOE13944926
|
[5] |
Screw
|
|
| 33. |
VOE13968063
|
|
Plug
|
|
