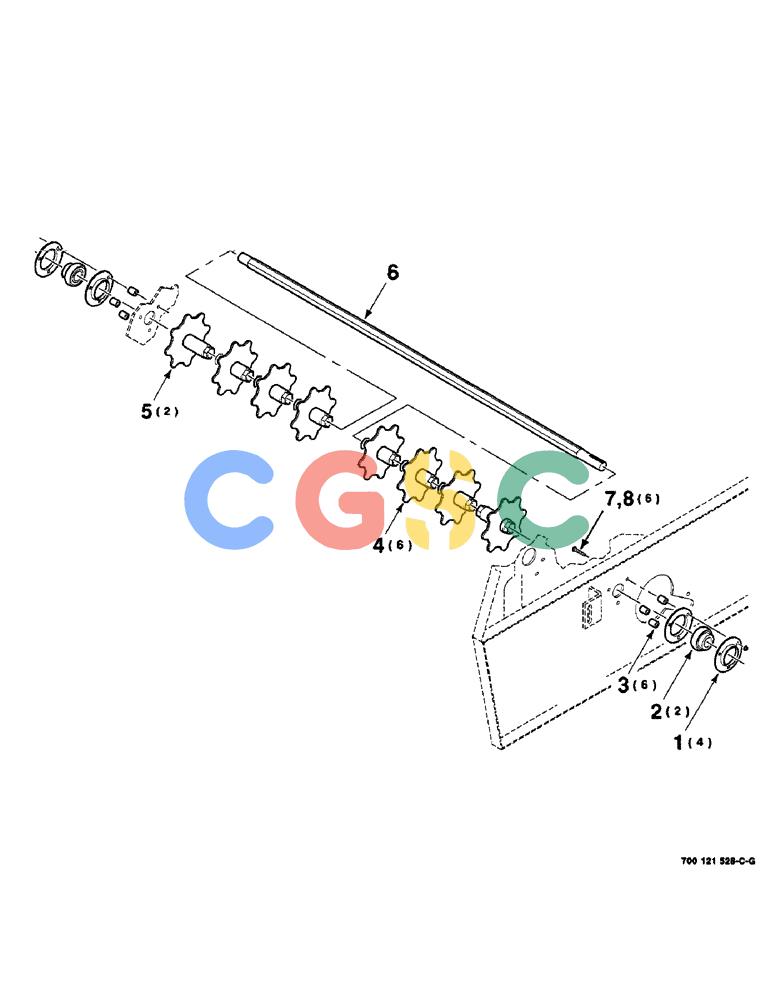

凯斯零件查询(8465) - CASE IH AUTO ROUND BALER (1/91-12/97) (6-22) - POWERED RIENK ASSEMBLY, SERIAL NUMBER CFH0077001 THROUGH CFH0077005 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
641 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
- 72 mm
|
| 2. |
51292
|
[2] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
Superseded by part number: 84330041, 47508357
|
| 3. |
6869382
|
[6] |
SPACER
|
HFI
|
| 4. |
700125160
|
[6] |
DISC
|
CAS
RIENK WA - inner Superseded by part number: 700133243
|
| 5. |
700126364
|
[2] |
DISC
|
HFI
RIENK WA - outer Superseded by part number: 700133258
|
| . . |
700133258
|
[2] |
WHEEL
|
HFI
RIENK WA - outer
|
| 6. |
700126362
|
[1] |
SHAFT
|
HFI
- hex
|
| 7. |
433-628
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5
|
CAS
3/8-16 X 1-3/4 RHSNB Superseded by part number: 86508775
|
| 8. |
231-5146
|
[6] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
