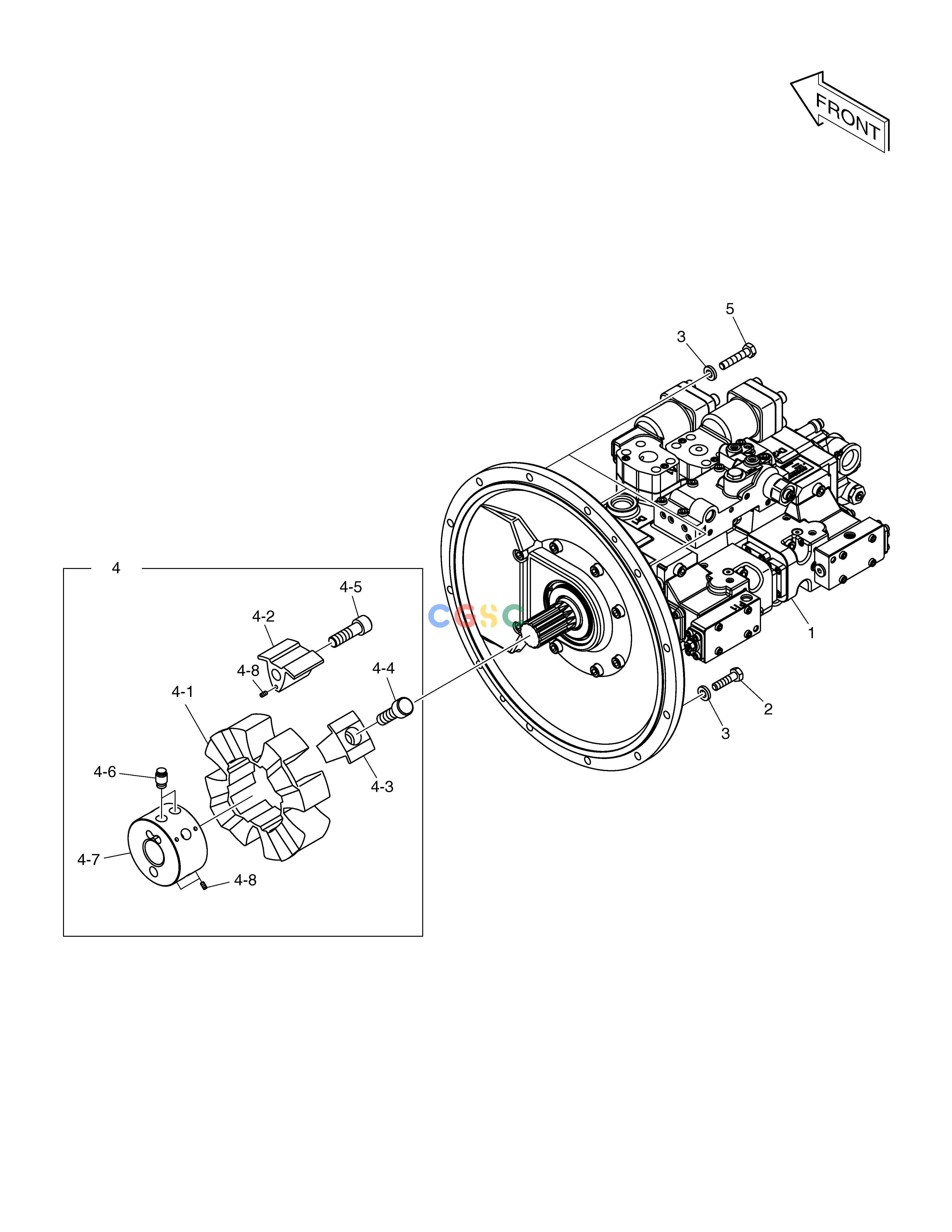

斗山零件查询PUMP MOUNTING DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400911-00243
|
[-] |
|
|
| 1. |
400914-00520A
|
[1] |
|
|
| 2. |
S0558366
|
[9] |
BOLT M10X1.5X40
|
|
| 3. |
120804-00070
|
[12] |
WASHER
|
|
| 4. |
2414-9041
|
[1] |
COUPLING
|
|
| 4-1. |
2474-7010
|
[1] |
ELEMENT
|
|
| 4-2. |
2217-7003
|
[4] |
INSERT(A)
|
|
| 4-3. |
2217-7004
|
[4] |
INSERT(B)
|
|
| 4-4. |
2120-7032
|
[4] |
BOLT;SOCKET M16X2.0X50
|
|
| 4-5. |
2120-7033
|
[4] |
BOLT;SOCKET
|
|
| 4-6. |
2120-7034
|
[2] |
BOLT;SOCKET M16X2.0X28
|
|
| 4-7. |
2219-7003
|
[1] |
HUB;CLAMPING
|
|
| 4-8. |
2123-7032
|
[12] |
PIN;SPRING
|
|
| 5. |
S0558566
|
[3] |
BOLT
|
|
