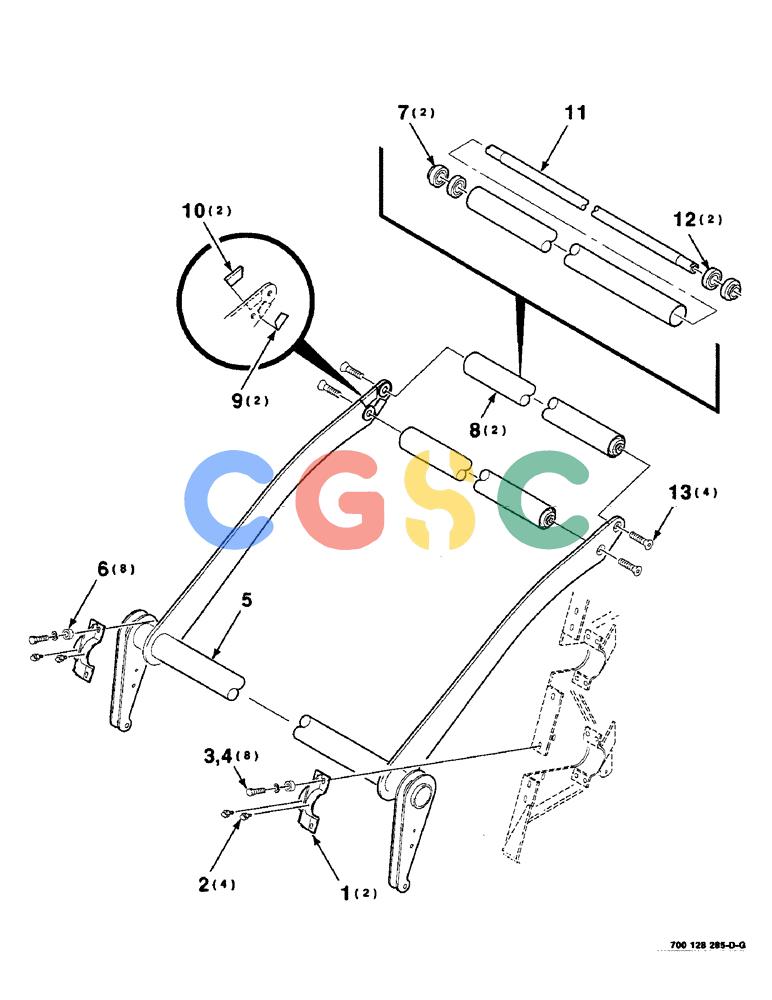

凯斯零件查询(8465) - CASE IH AUTO ROUND BALER (1/91-12/97) (6-28) - BALE TENSION ROLLER ASSEMBLY, SERIAL NUMBER CFH0078355 THROUGH CFH0122122 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700107957
|
[2] |
CLAMP
|
HFI
WA
|
| 2. |
219-90
|
[4] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45° ZERK Superseded by part number: 87569
|
| 3. |
61-34424
|
[8] |
HEX SOC SCREW,7/16"-14 x 1 1/2"
|
CAS
7/16-14 X 1-1/2 HSHCS SPL Superseded by part number: 280281
|
| 4. |
492-11044
|
[8] |
LOCK WASHER,7/16"
|
CAS
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 5. |
700130865
|
[1] |
ARM
|
HFI
WA (Includes items 9 & 10) Superseded by part number: 700114356
|
| 6. |
6520233
|
[8] |
BUSHING
|
HFI
|
| 7. |
F82059
|
[2] |
BEARING ASSY,38.1mm ID x 80mm OD x 22mm W
|
IH
BEARING - cylindrical
|
| 8. |
700130862
|
[2] |
ROLLER
|
HFI
ASSEMBLY (Includes items 7, 11 & 12)
|
| 9. |
700130868
|
[2] |
PLATE
|
HFI
WEAR PLATE - lower
|
| 10. |
700130867
|
[2] |
PLATE
|
HFI
WEAR PLATE - upper
|
| 11. |
700130863
|
[1] |
SHAFT
|
HFI
|
| 12. |
8050825
|
[2] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- cylindrical Superseded by part number: F82059
|
| 13. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 X 1-3/4 HSFCHCS SPL
|
