纽荷兰零件查询(F4HFE613J A006) - ENGINE 5801757723 - 47544094 (1/14-) (10.105.AG) - PISTON New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
631 次

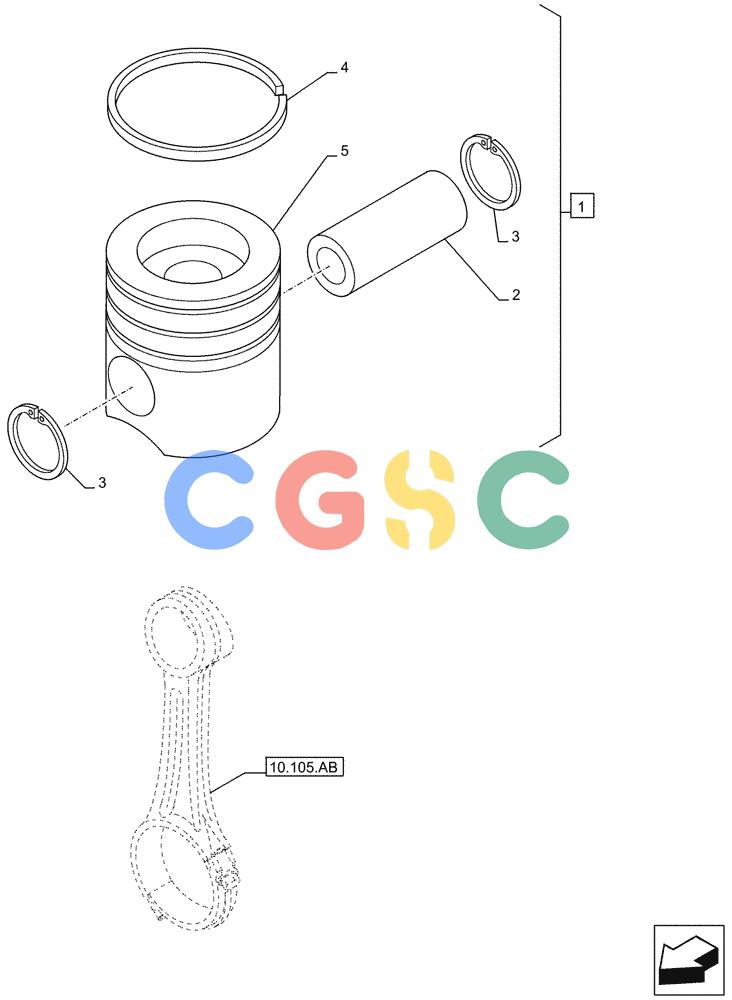

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84364065 | [6] | PISTON | TORASSY, Incl 2 - 5 Superseded by part number: 8097879 |
| 2. | 4892712 | [1] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 2854030 | [2] | SNAP RING,M40.8 OD | TOR Superseded by part number: 4892713 |
| 4. | 2830158 | [6] | PISTON RING | TOR |
| 4. | 2852037 | [6] | SEAL,95.3mm ID x 104mm OD x 4mm Thk | TOR |
| 4. | 2854603 | [6] | PISTON RING | BHB |
| 5. | NSS | [1] | NOT SERVICED SEPARATELY | CONPiston, Incl in 1 |
