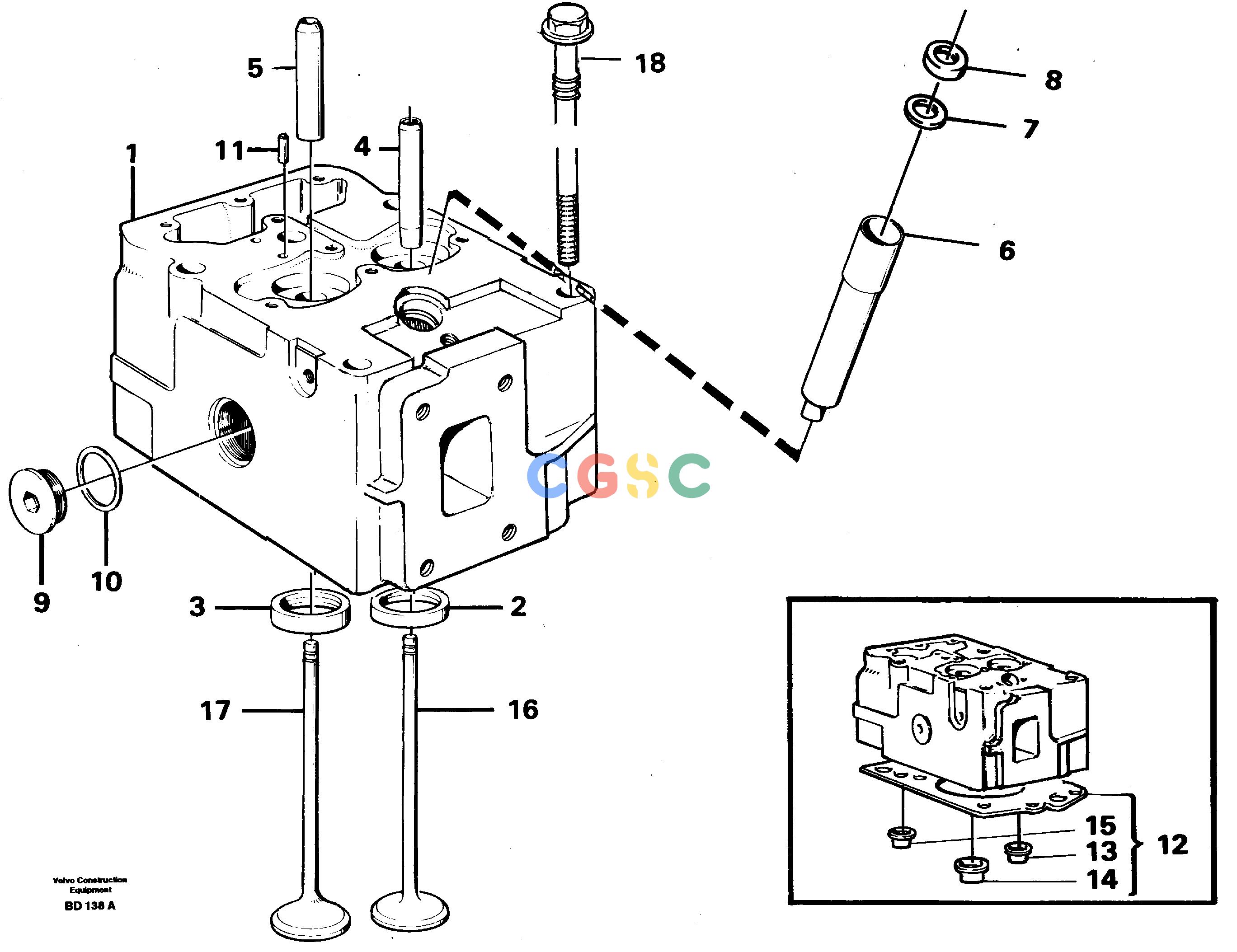

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE422957
|
[6] |
Cylinder head
|
|
| 1. |
|
[6] |
Cylinder head
|
|
| 2. |
VOE467474
|
[6] |
Valve seat
|
Inlet, STD
|
| |
VOE467590
|
[6] |
Valve seat
|
0,20MM O SZ
|
| 3. |
VOE1545886
|
[6] |
Valve seat
|
Outlet, STD
|
| |
VOE1545885
|
[6] |
Valve seat
|
0,20MM O SZ
|
| 4. |
VOE422762
|
[6] |
Guide
|
Inlet
|
| 5. |
VOE11129092
|
[6] |
Valve guide
|
Outlet
|
| |
VOE270946
|
[6] |
Repair kit
|
|
| 6. |
VOE479163
|
[6] |
Sleeve
|
|
| 7. |
VOE466420
|
[6] |
Ring
|
|
| 8. |
VOE466405
|
[6] |
Sealing ring
|
|
| 9. |
VOE467365
|
[12] |
Plug
|
|
| 10. |
VOE469327
|
[12] |
Gasket
|
|
| 11. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 12. |
VOE270789
|
[6] |
Gasket kit
|
|
| 13. |
VOE422413
|
[1] |
Sealing ring
|
OD = 11
|
| 14. |
VOE422414
|
[2] |
Sealing ring
|
OD = 32
|
| 15. |
VOE422415
|
[2] |
Sealing ring
|
OD = 18
|
| 16. |
|
[6] |
Inlet valve
|
|
| 17. |
|
[6] |
Exhaust valve
|
|
| 18. |
VOE422086
|
[24] |
Screw
|
|
| |
|
|
Gasket
|
|
