卡特零件查询（725） 170-7094: LINES GP-GREASE
广数供应链运营团队, 14 02月, 2025，浏览：
752 次

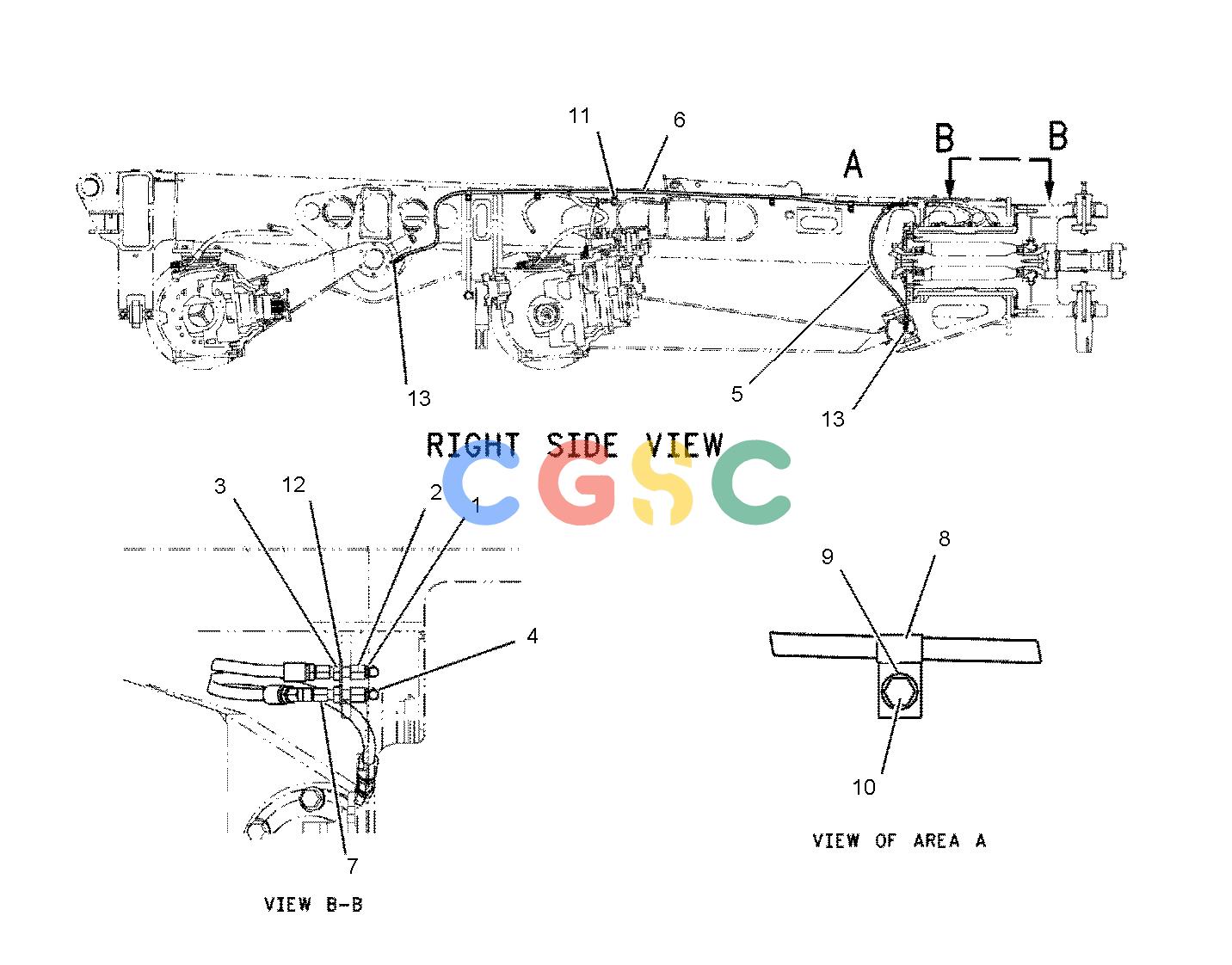

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 4U-1697 | [2] | ADAPTER-BULKHEAD | |
| 3. | 5B-3254 | [2] | NUT-JAM(7/16-20-THD) | |
| 4. | 5U-7151 | [2] | CAP-GREASE | |
| 5. | 135-3417I | [1] | HOSE AS-GREASE | |
| 6. | 159-3121I | [1] | HOSE AS | |
| 7. | 030-7961 | [1] | ELBOW | |
| 8. | 124-0174 | [5] | CLIP(LOOP) | |
| 9. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 11. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 12. | 8T-5360 | [2] | WASHER(12X22.5X2.5-MM THK) | |
| 13. | 9L-5125 | [2] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
