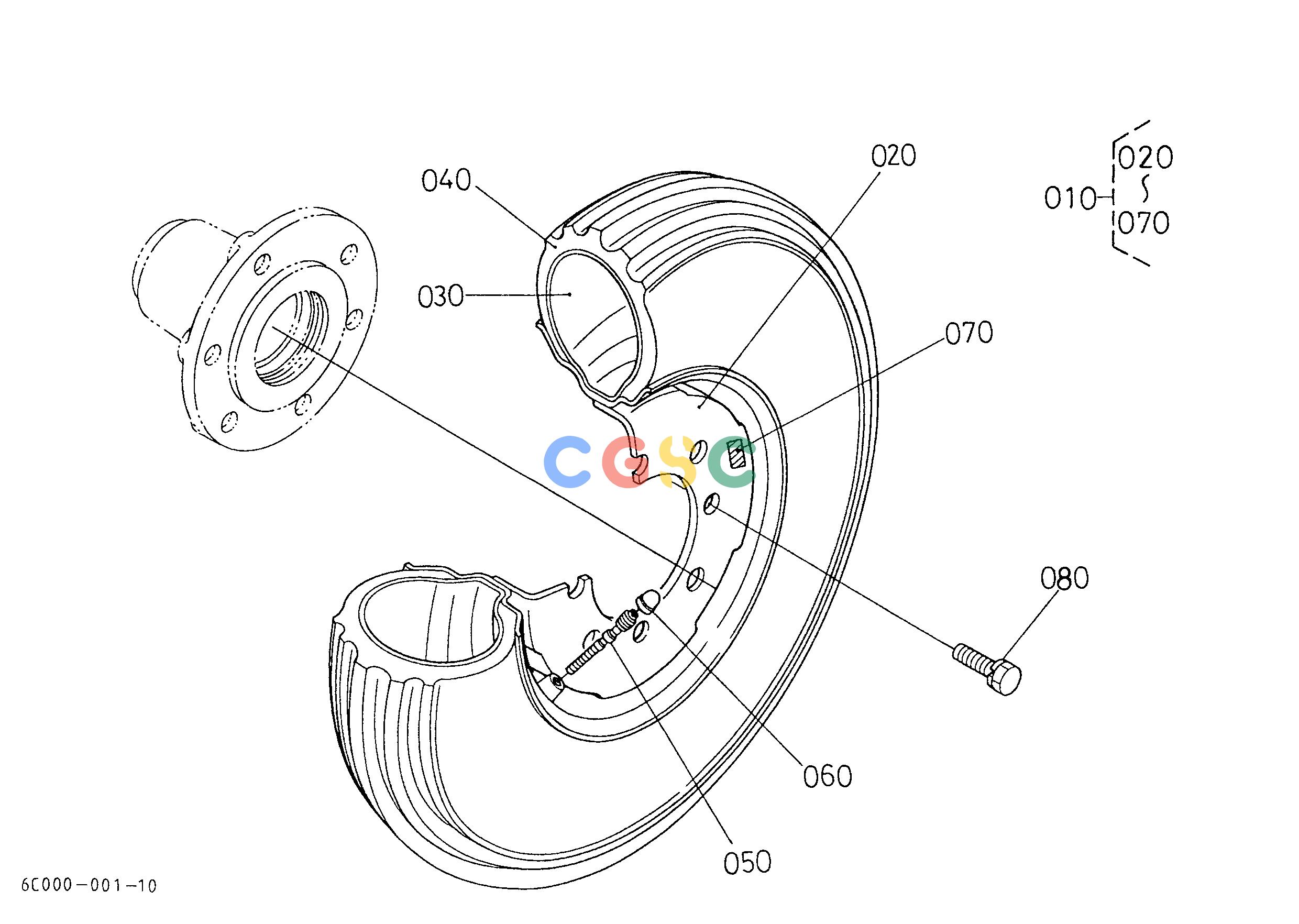

久保田零件查询R10101 FRONT WHEEL (5.00-10) FRONT WHEEL (25 10-12)EPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050810
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
6C04050820
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
9601511120
|
[2] |
TUBE
|
1.4740(lbs); 0.670
|
| 040. |
9601511130
|
[2] |
TIRE
|
10.7800(lbs); 4.900
|
| 050. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 070. |
6C04050830
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 080. |
0113351230
|
[12] |
BOLT
|
0.0880(lbs); 0.040
|
