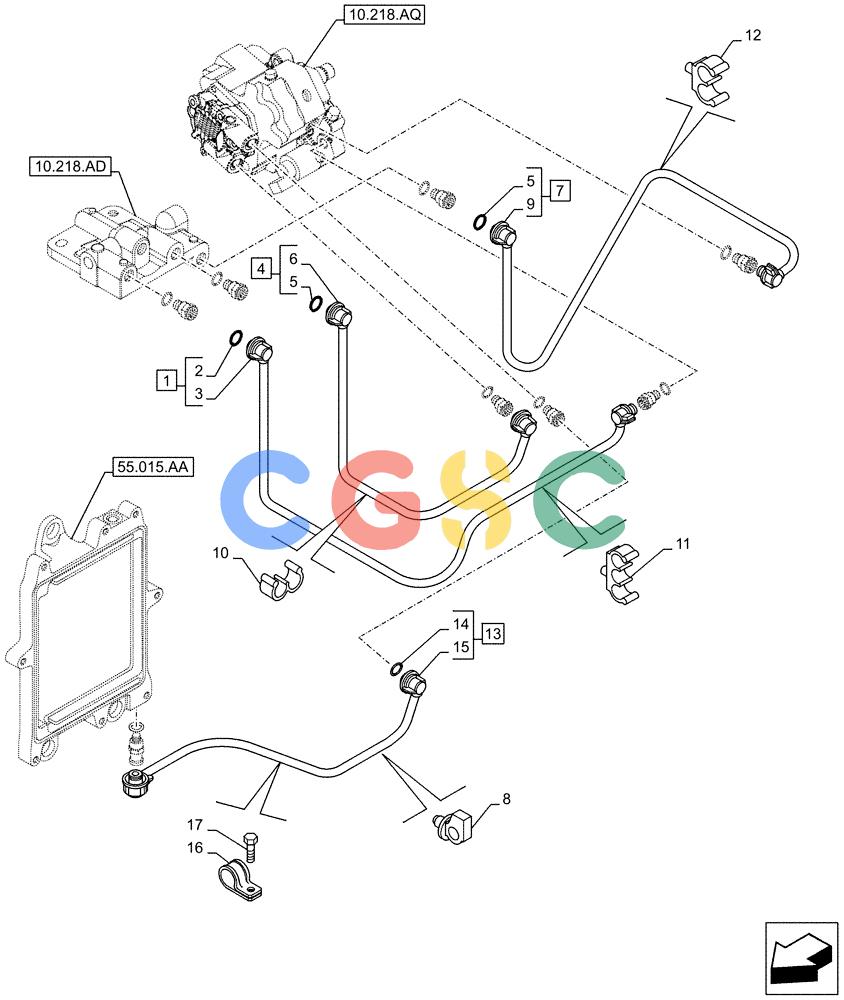

纽荷兰零件查询(F4HFE613J A006) - ENGINE 5801757723 - 47544094 (1/14-) (10.210.AF) - FUEL LINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852440 | [1] | TUBE | TORASSY, Incl 2, 3 Superseded by part number: 504034214 |
| 2. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONPipe, Incl in 1 |
| 4. | 2852443 | [1] | TUBE | TORASSY, Incl 5, 6 Superseded by part number: 504034215 |
| 7. | 2852446 | [1] | TUBE | TORASSY, Incl 5, 9 Superseded by part number: 504034216 |
| 8. | 4897277 | [1] | SCREW | TOR |
| 10. | 2859677 | [2] | CLIP | BHB Superseded by part number: 504356309 |
| 11. | 2859678 | [1] | CLIP | BHB Superseded by part number: |
| 12. | 2859676 | [2] | CLIP | BHB Superseded by part number: 504384245 |
| 13. | 4897817 | [1] | TUBE | TORASSY, Incl 14, 15 |
| 16. | 4895462 | [1] | CLAMP | TOR |
| 17. | 4899063 | [1] | SCREW,Hex Flg, M8 x 1.25 x 30 | TOR |
