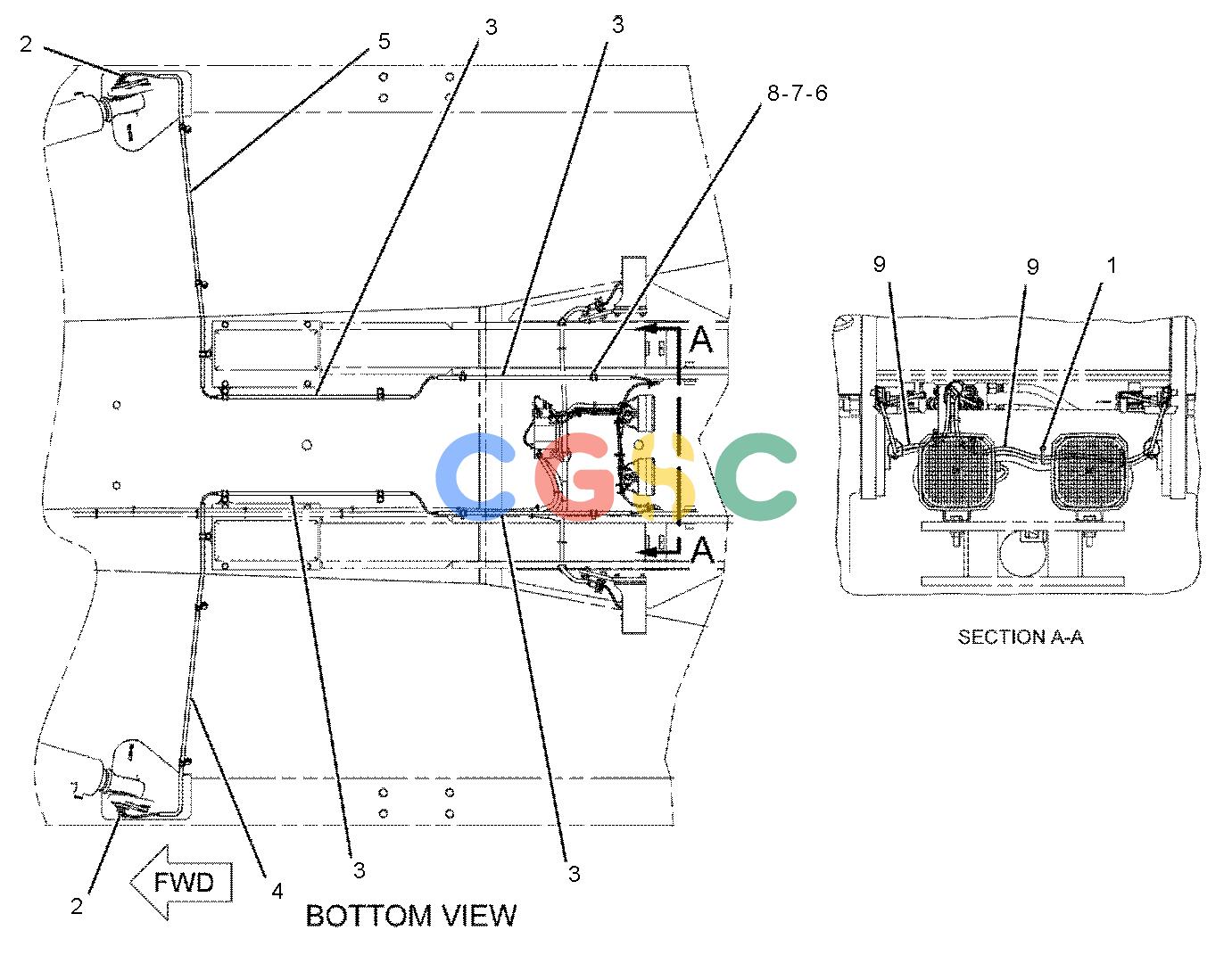

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7K-1181 | [9] | STRAP-CABLE | |
| 2. | 177-3464 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 277-3072M | [1] | NUT(M10X1-THD) | ||
| 277-3073 | [1] | FITTING-COMPRESSION | ||
| 3. | 263-1948 | [4] | TUBE AS | |
| 4. | 263-1949 | [1] | TUBE AS(RH) | |
| 5. | 263-1950 | [1] | TUBE AS(LH) | |
| 6. | 3U-2752 | [14] | CLIP(LOOP) | |
| 7. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4191M | [14] | BOLT(M10X1.5X16-MM) | |
| 9. | 161-9030E | HOSE(430-CM EACH) | ||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
