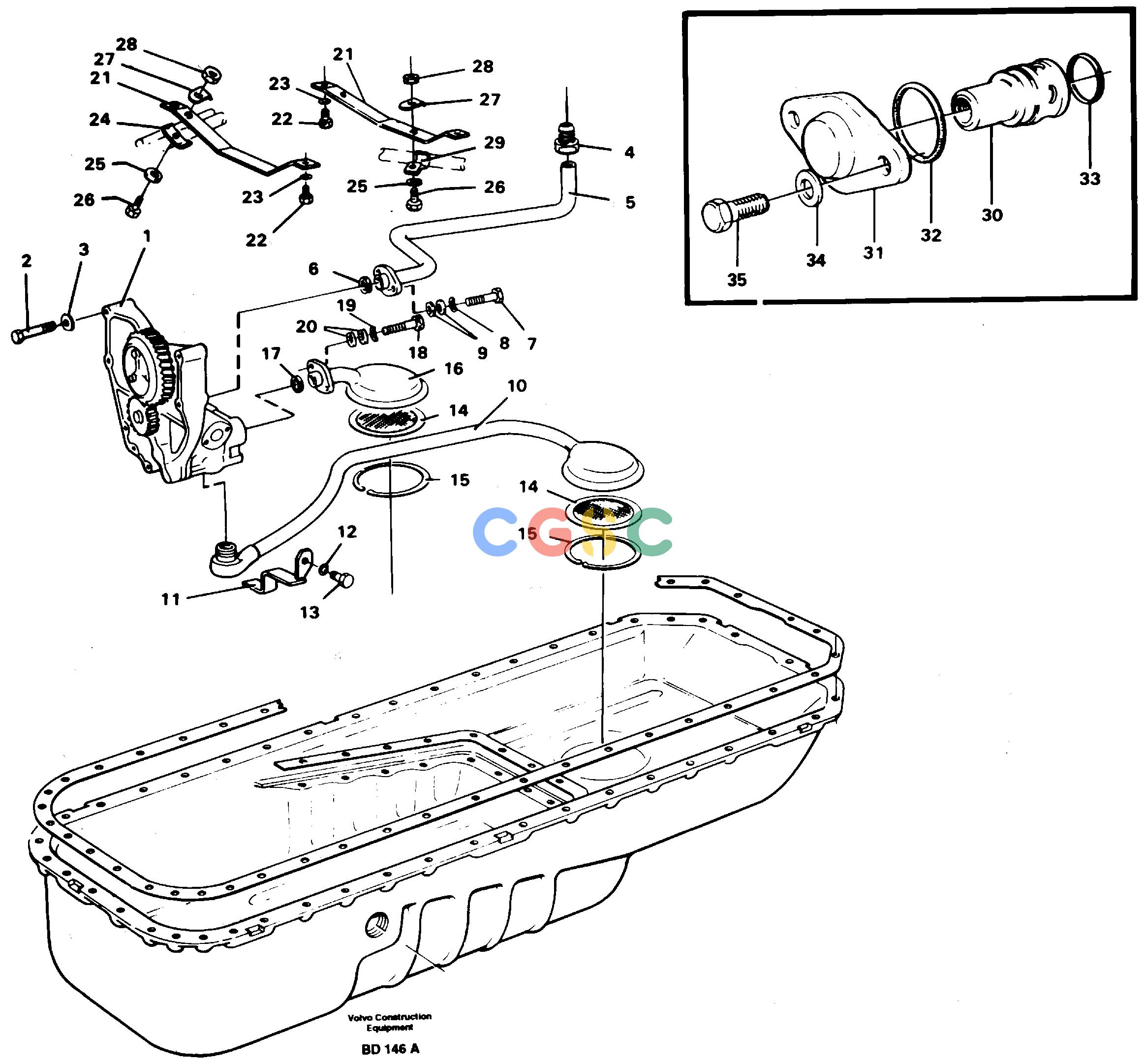

沃尔沃零件查询A30 VOLVO BM Lubricating oil systemVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Oil pump
|
|
| 2. |
VOE955538
|
[4] |
Hexagon screw
|
|
| 3. |
VOE13942336
|
[4] |
Spring washer
|
|
| 4. |
VOE466907
|
[1] |
Nipple
|
|
| 5. |
VOE4776573
|
[1] |
Oil pipe
|
|
| 6. |
VOE13949656
|
[1] |
O-ring
|
|
| 7. |
VOE959795
|
[2] |
Hexagon screw
|
|
| 8. |
VOE13941907
|
[2] |
Washer
|
|
| 9. |
VOE13955894
|
[4] |
Washer
|
|
| 10. |
VOE4776342
|
[1] |
Suction pipe
|
|
| 11. |
VOE4776475
|
[1] |
Bracket
|
|
| 12. |
VOE13941907
|
[1] |
Washer
|
|
| 13. |
VOE942402
|
[1] |
Flange screw
|
|
| 14. |
VOE403483
|
[2] |
Wire gauze
|
|
| 15. |
VOE118123
|
[2] |
Snap ring
|
|
| 16. |
VOE11031098
|
[1] |
Oil strainer
|
|
| 17. |
VOE13949656
|
[1] |
O-ring
|
|
| 18. |
VOE959795
|
[2] |
Hexagon screw
|
|
| 19. |
VOE13941907
|
[2] |
Washer
|
|
| 20. |
VOE13955894
|
[4] |
Washer
|
|
| 21. |
VOE4776859
|
[2] |
Support
|
|
| 22. |
VOE955524
|
[4] |
Hexagon screw
|
|
| 23. |
VOE13941907
|
[4] |
Washer
|
|
| 24. |
VOE4776352
|
[1] |
Clamp
|
|
| 25. |
VOE13941907
|
[2] |
Washer
|
|
| 26. |
VOE13940159
|
[2] |
Screw
|
|
| 27. |
VOE942411
|
[2] |
Washer
|
|
| 28. |
VOE945467
|
[2] |
Lock nut
|
|
| 29. |
VOE945605
|
[1] |
Clamp
|
|
| 1. |
|
|
None
|
|
| 30. |
VOE471706
|
[1] |
Reduction valve
|
|
| |
|
[1] |
Peg
|
|
| |
|
[1] |
Spring
|
|
| 31. |
VOE471752
|
[1] |
Cover
|
|
| 32. |
VOE949658
|
[1] |
O-ring
|
|
| 33. |
VOE469846
|
[1] |
Sealing ring
|
|
| 34. |
VOE13949607
|
[2] |
Washer
|
|
| 35. |
VOE940100
|
[2] |
Hexagon screw
|
|
