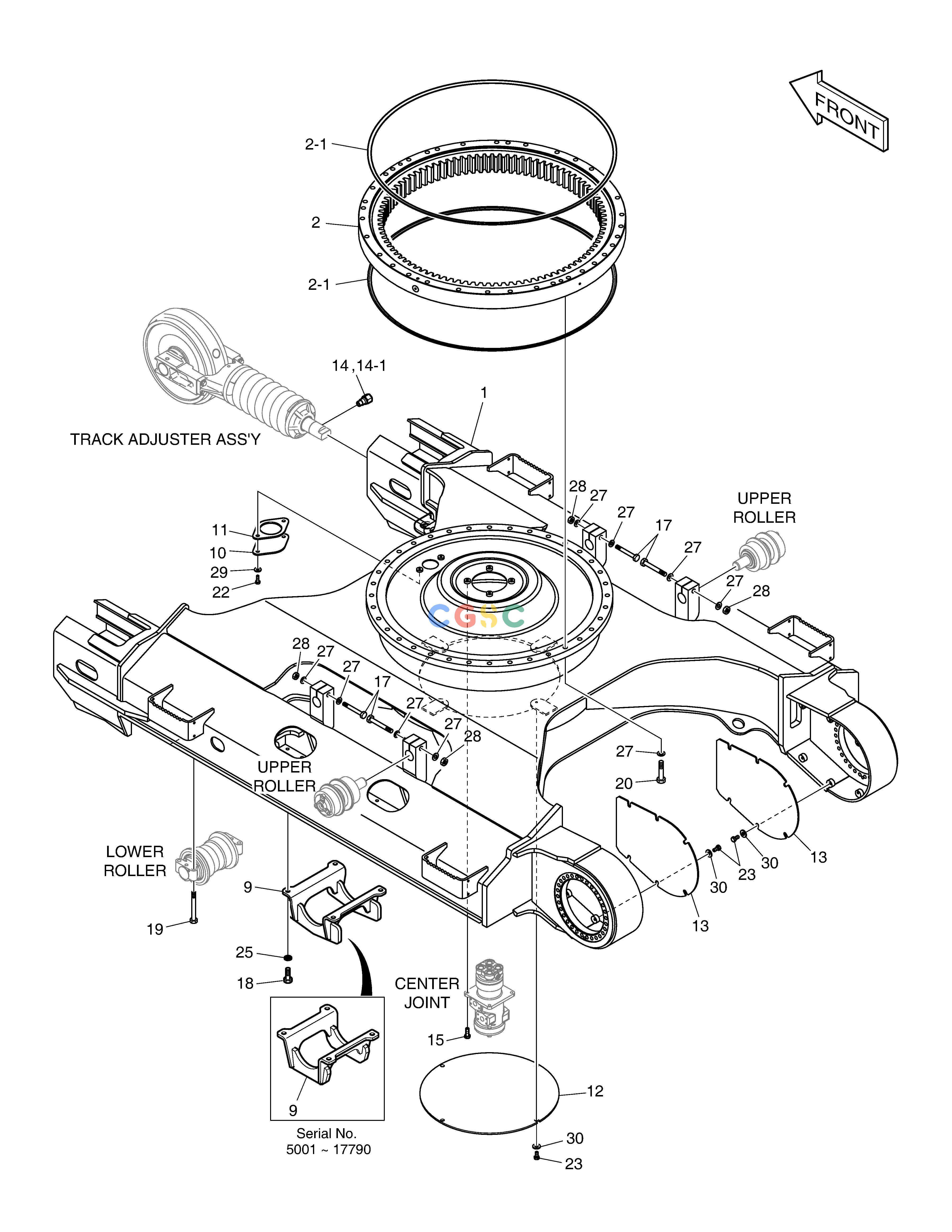

斗山零件查询TRACK FRAME - SHORT & FIXED DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00126
|
[-] |
|
|
| 1. |
160617-00290
|
[1] |
|
|
| 1. |
160617-00290B
|
[1] |
|
|
| 10. |
621-02938B
|
[1] |
COVER
|
|
| 11. |
180-00463
|
[1] |
PACKING
|
|
| 12. |
110513-00242
|
[1] |
|
|
| 13. |
110508-00675
|
[2] |
|
|
| 14. |
422-00055
|
[2] |
VALVE;GREASE
|
|
| 14. |
410143-00002
|
[2] |
|
|
| 14-1. |
401106-00230
|
[1] |
SEAL
|
|
| 14-1. |
401106-00513
|
[1] |
|
|
| 15. |
S0515366
|
[4] |
BOLT
|
|
| 17. |
S0571166
|
[4] |
BOLT
|
|
| 18. |
S0721466
|
[8] |
BOLT M16X1.5X40
|
|
| 19. |
S0765966
|
[56] |
BOLT
|
|
| 2. |
140109-00048
|
[1] |
|
140109-00048A
|
| 2. |
140109-00048A
|
[1] |
|
|
| 2-1. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 20. |
S0770266
|
[36] |
BOLT M20X1.5X70
|
|
| 22. |
S0512266
|
[2] |
BOLT
|
|
| 23. |
S0515066
|
[16] |
BOLT
|
|
| 25. |
S5102903
|
[8] |
WASHER
|
|
| 25. |
K1014251
|
[8] |
WASHER;HARDEN
|
|
| 27. |
2114-9012A
|
[44] |
WASHER
|
|
| 28. |
S4013133
|
[4] |
NUT
|
|
| 29. |
120804-00078
|
[2] |
WASHER
|
|
| 30. |
120804-00079
|
[16] |
WASHER
|
|
| 9. |
200112-00073A
|
[2] |
|
200112-00106
|
| 9. |
200112-00106
|
[2] |
|
|
