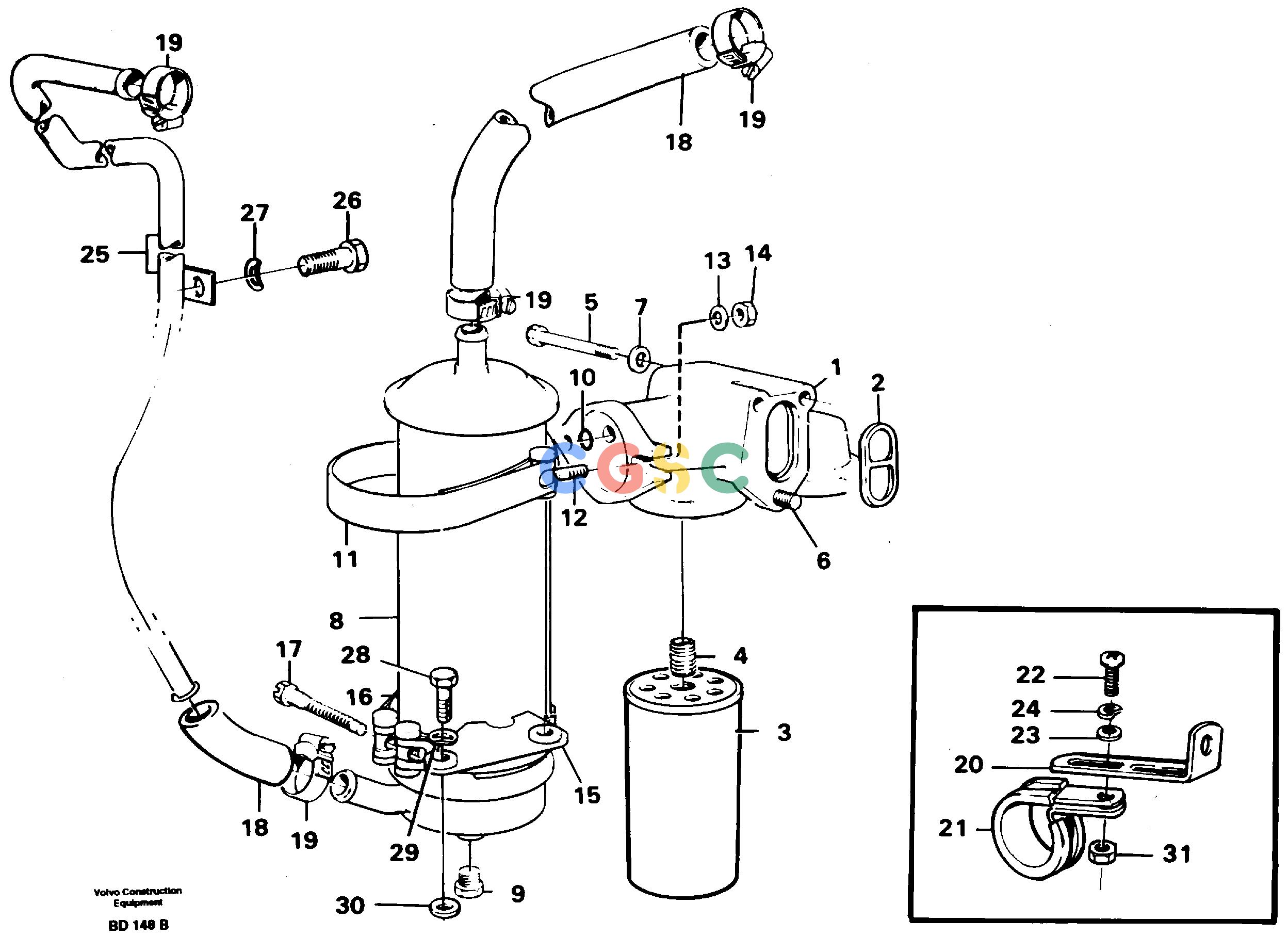

沃尔沃零件查询A30 VOLVO BM Oilfilter and oil coolerVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
573 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE422812
|
[1] |
Housing
|
|
| 2. |
VOE469487
|
[1] |
Gasket
|
|
| 3. |
VOE21707134
|
[2] |
Oil Filter
|
|
| 4. |
VOE466623
|
[2] |
Nipple
|
|
| 5. |
VOE955544
|
[2] |
Hexagon screw
|
|
| 6. |
VOE13940115
|
[2] |
Screw
|
|
| 7. |
VOE13942336
|
[4] |
Spring washer
|
|
| 8. |
VOE4777033
|
[1] |
Oil cooler
|
|
| 9. |
VOE479955
|
[2] |
Plug
|
|
| 10. |
VOE469483
|
[2] |
Sealing ring
|
|
| 11. |
VOE1545255
|
[1] |
Tensioning band
|
|
| 12. |
VOE924072
|
[2] |
Stud
|
|
| 13. |
VOE13960141
|
[2] |
Washer
|
|
| 14. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 15. |
VOE467917
|
[1] |
Bracket
|
|
| 16. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 17. |
VOE1545257
|
[1] |
Screw
|
|
| 18. |
VOE943369
|
[REQ] |
Hose
|
|
| 19. |
VOE13943474
|
[4] |
Hose clamp
|
|
| 20. |
VOE13965556
|
[1] |
Bracket
|
|
| 21. |
VOE952632
|
[1] |
Clamp
|
|
| 22. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 23. |
VOE955893
|
[1] |
Plain washer
|
|
| 24. |
VOE13941906
|
[1] |
Washer
|
|
| 25. |
VOE4777189
|
[1] |
Water pipe
|
|
| 26. |
VOE13942624
|
[1] |
Flange screw
|
|
| 27. |
VOE13941907
|
[1] |
Washer
|
|
| 28. |
VOE940186
|
[2] |
Hexagon screw
|
|
| 29. |
VOE13941907
|
[2] |
Washer
|
|
| 30. |
VOE13960141
|
[2] |
Washer
|
|
| 31. |
VOE955825
|
[1] |
Hexagon nut
|
|
