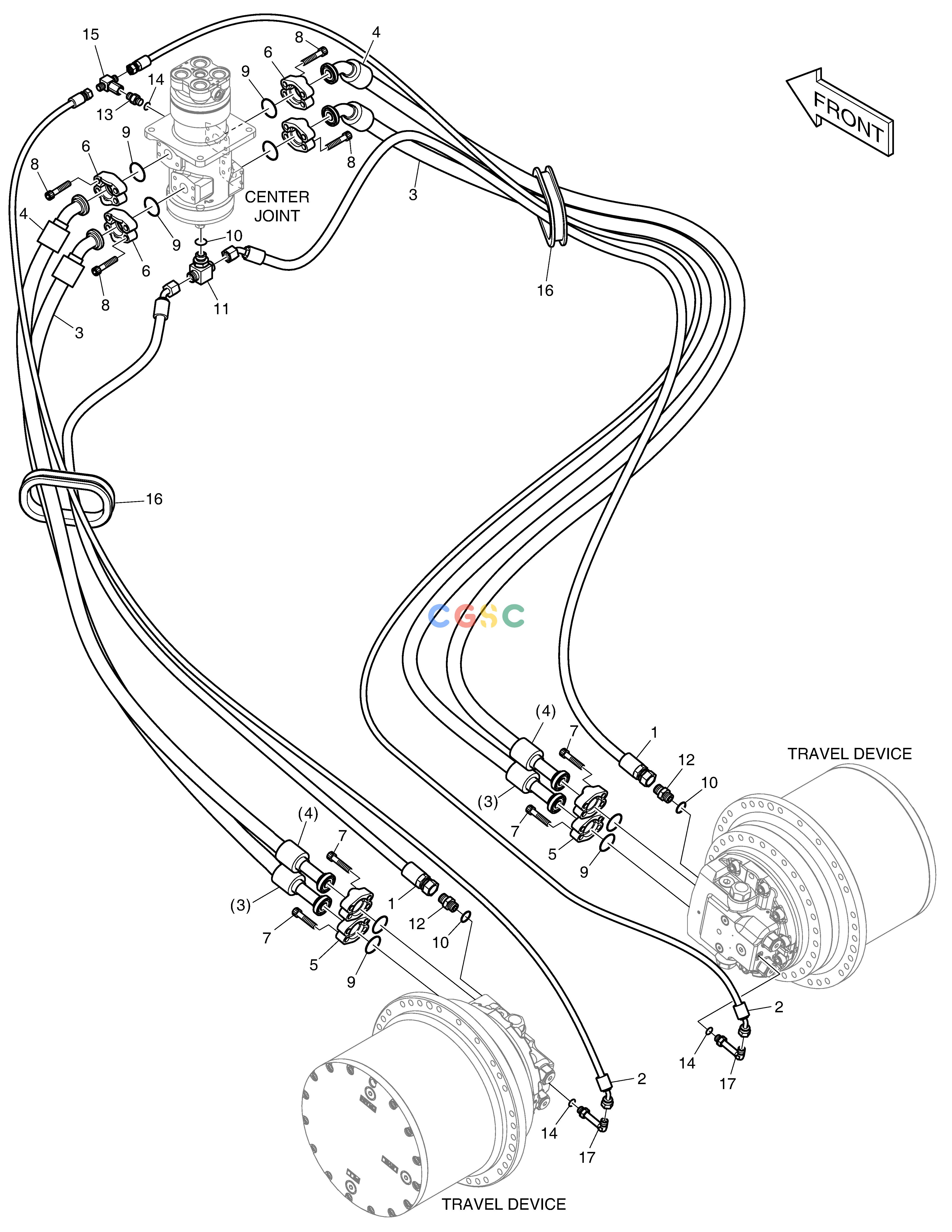

斗山零件查询TRAVEL PIPING DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
333 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07632
|
[-] |
|
|
| 1. |
2184-1070D49
|
[2] |
HOSE PF1/2-1960L
|
|
| 10. |
S8000181
|
[3] |
O-RING
|
|
| 11. |
2181-2281D10
|
[1] |
TEE
|
|
| 12. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 13. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 14. |
S8000111
|
[3] |
O-RING
|
|
| 15. |
2181-4125
|
[1] |
TEE
|
|
| 16. |
160-00069
|
[2] |
BUSHING;RUBBER
|
|
| 17. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 2. |
DS2092087
|
[2] |
HOSE
|
|
| 3. |
DS2112012
|
[2] |
|
|
| 4. |
DS2112011
|
[2] |
|
|
| 5. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 6. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 7. |
S2212266
|
[16] |
BOLT
|
|
| 8. |
S2215466
|
[16] |
BOLT
|
|
| 9. |
2180-1026D19
|
[8] |
O-RING
|
|
