沃尔沃零件查询A30 VOLVO BM Feed pumpVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
817 次

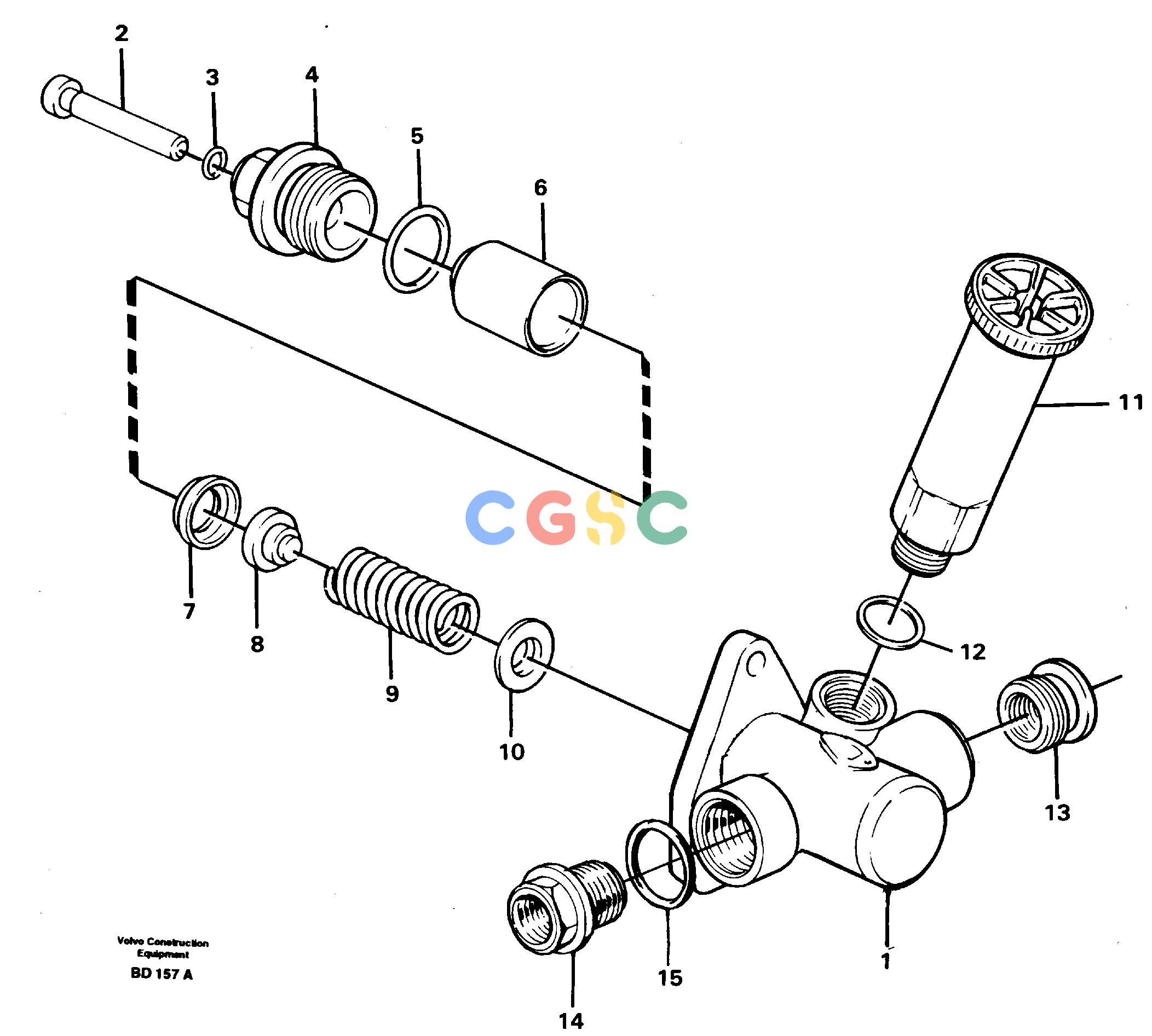

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE244825
|
[1] |
Feed pump
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE244826
|
[1] |
Push rod
|
|
| 3. |
VOE11716292
|
[1] |
O-ring
|
|
| 4. |
VOE244827
|
[1] |
Nipple
|
|
| 5. |
VOE15031180
|
[1] |
O-ring
|
|
| 6. |
VOE244831
|
[1] |
Piston
|
|
| 7. |
VOE11706665
|
[1] |
Spacer ring
|
|
| 8. |
VOE244834
|
[1] |
Valve
|
|
| 9. |
VOE244832
|
[1] |
Spring
|
|
| 10. |
VOE244833
|
[2] |
Spring disc
|
|
| 11. |
VOE11716756
|
[1] |
Hand pump
|
|
| 12. |
VOE240572
|
[1] |
Gasket
|
|
| 13. |
VOE244836
|
[1] |
Bushing
|
|
| 14. |
VOE244837
|
[1] |
Nipple
|
M 24 x 1,5, FD-368
|
| 14. |
VOE3094340
|
[1] |
Nipple
|
M 22 x 1,5, FD369-
|
| 15. |
VOE244838
|
[1] |
O-ring
|
FD-368
|
| 15. |
VOE3094341
|
[1] |
O-ring
|
FD369-
|
