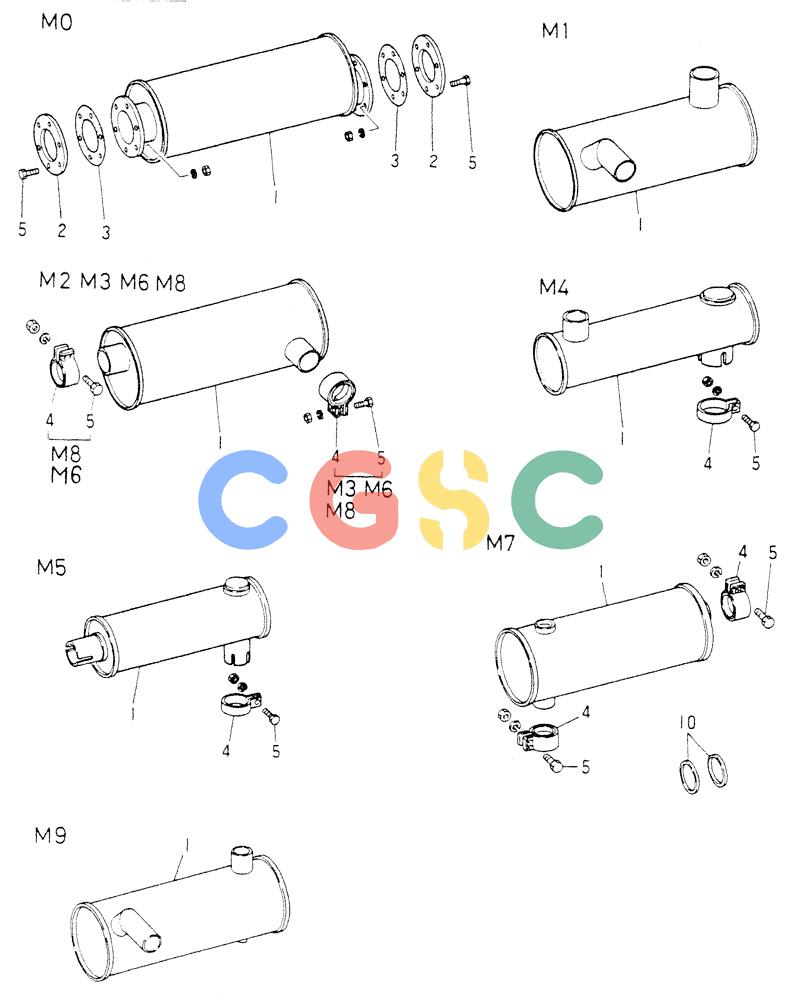

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (06-014) - EXHAUST MUFFLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME048461 | [1] | MUFFLER ASSY (FOR M0) FF: | |
| 1-5. | VAME039706 | [1] | MUFFLER ASSY (FOR M4) | |
| 1. | VAME048446 | [1] | MUFFLER 240-650 (FOR M0) | |
| 1. | VAME039707 | [1] | MUFFLER | KOBMUFFLER 240-645 (FOR M1) |
| 1. | VAME039708 | [1] | MUFFLER | KOBMUFFLER (FOR M2, M3, M6, M8) |
| 1. | VAME039709 | [1] | MUFFLER 190-645 (FOR M4) | |
| 1. | VA3089254100 | [1] | MUFFLER 190-500 (FOR M5) | |
| 1. | VAME038905 | [1] | MUFFLER | KOBMUFFLER 240-645 (FOR M7) |
| 1. | VAME038906 | [1] | MUFFLER (FOR M9) | |
| 2. | VA3003202813 | [2] | FLANGE (FOR M0) | |
| 3. | VA3003232100 | [2] | GASKET (FOR M0) | |
| 4-5. | VAME039172 | [1] | CLAMP | KOBCLAMP ASSY (FOR M3, M7, M8) |
| 4-5. | VAME027314 | [2] | CLAMP | KOBCLAMP ASSY (FOR M6) |
| 4. | VAME039173 | [1] | CLAMP,PIPE 75 (FOR M8) | |
| 4. | VA3183290802 | [1] | CLAMP | KOBCLAMP,PIPE 79 (FOR M4) |
| 4. | VAMC430011 | [1] | CLAMP,PIPE 61 (FOR M5) | |
| 4. | VAMC430038 | [2] | CLAMP,PIPE 65.6 (FOR M5) | |
| 4. | VAME027147 | [2] | CLAMP | KOBCLAMP,PIPE 70 (FOR M6) |
| 5. | VAMF104916 | [12] | BOLT 12X40 (FOR M0) | |
| 5. | VAMF101314 | [2] | SCREW | KOBBOLT 12X35 (FOR M3) Superseded by part number: VAF103512035 |
| 5. | VAMF100087 | [1] | BOLT 10X35 (FOR M4) | |
| 5. | VAMF101316 | [3] | BOLT 12X40 (FOR M5) | |
| . . | VAMF430362 | [12] | NUT 12 (FOR M0) | |
| . . | VAMF430007 | [2] | NUT | KOBNUT 12 (FOR M3) |
| . . | VAMF430006 | [1] | NUT | KOBNUT 10 (FOR M4) Superseded by part number: VAF230510000 |
| . . | VAMF450407 | [12] | WASHER WASHER,SPG 12 (FOR M0) | WASHER WASHER,SPG 12 (FOR M0) |
| . . | VAMF450406 | [1] | WASHER | KOBWASHER,SPG 10 (FOR M4) |
| 10. | VAME033577 | [2] | RING,SEAL (FOR M7) | |
