神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (08-003) - LINER & PISTON KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
714 次

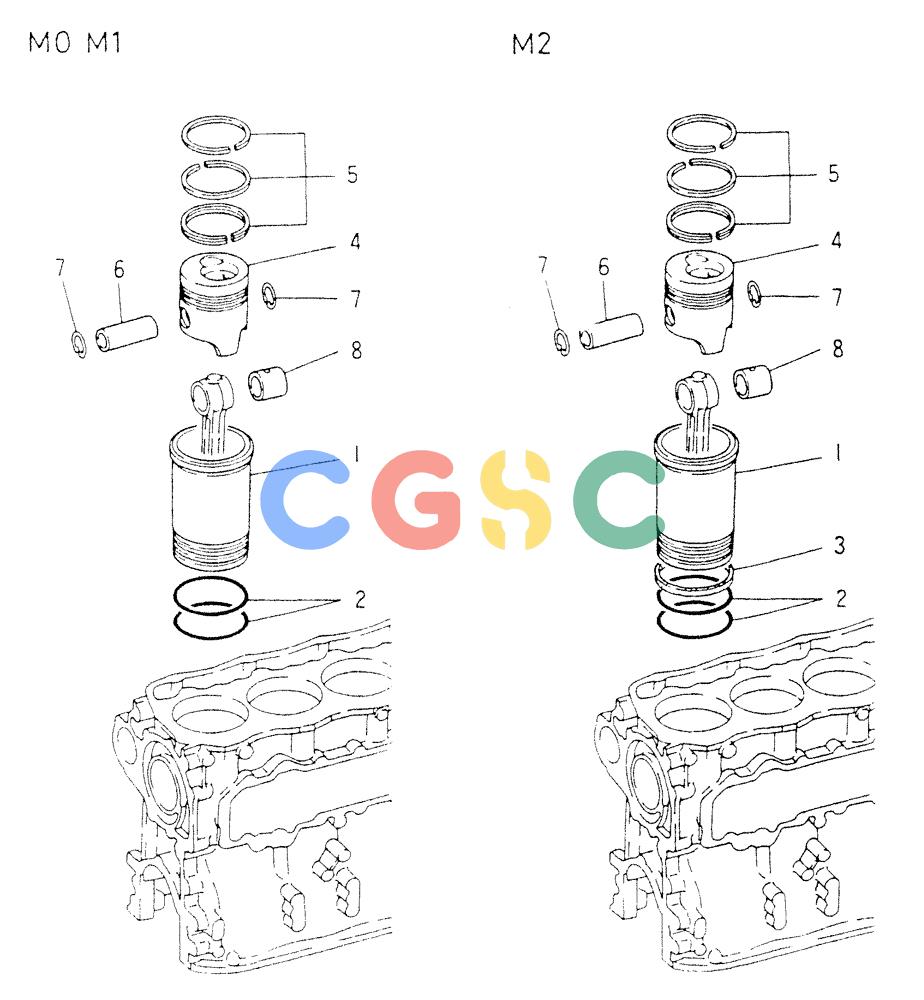

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-8. | VAME999037 | [1] | KIT, LINER, PISTON R | KOBLINER & PISTON KIT 6D14 (FOR M0) |
| 1-8. | VAME999115 | [1] | KIT, LINER, PISTON R | KOBLINER & PISTON KIT 6D14T (FOR M1) |
| 1-8. | VAME999033 | [1] | KIT, LINER, PISTON R | KOBLINER & PISTON KIT 6D15 (FOR M2) |
| 1. | VAME031619 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL B SIZE (FOR M0 & M1) |
| 1. | VAME031656 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL B SIZE (FOR M2) Superseded by part number: VAME071064 |
| 2. | VAME031605 | [12] | O-RING | KOBO-RING (FOR M0 & M1) Superseded by part number: VAMH035633 |
| 2. | VAME031610 | [12] | O-RING | KOBO-RING (FOR M2) |
| 3. | VAME031601 | [6] | PACKING | KOBPACKING (FOR M2) Superseded by part number: VAME071036 |
| 4. | VAME032640 | [6] | MANIFOLD PISTON,STD B SIZE (FOR M0) | MANIFOLD PISTON,STD B SIZE (FOR M0) |
| 4. | VAME032571 | [6] | PISTON,STD B SIZE (FOR M1) | |
| 4. | VAME032634 | [6] | MANIFOLD PISTON,STD B SIZE (FOR M2) | MANIFOLD PISTON,STD B SIZE (FOR M2) |
| 5. | VAME032458 | [1] | SET OF RINGS | KOBPISTON PING SET, STD (FOR M0 & M1) |
| 5. | VAME032403 | [1] | SET OF RINGS | KOBPISTON PING SET, STD (FOR M2) |
| 6. | VAME032542 | [6] | PIN | KOBPIN,PISTON (FOR M0 & M2) |
| 6. | VAME032550 | [6] | PIN | KOBPIN,PISTON (FOR M1) |
| 7. | VAME032013 | [12] | RING | KOBRING,SNAP |
| 8. | VAME032014 | [6] | BUSHING BUSHING,CONN-ROD | BUSHING BUSHING,CONN-ROD |
