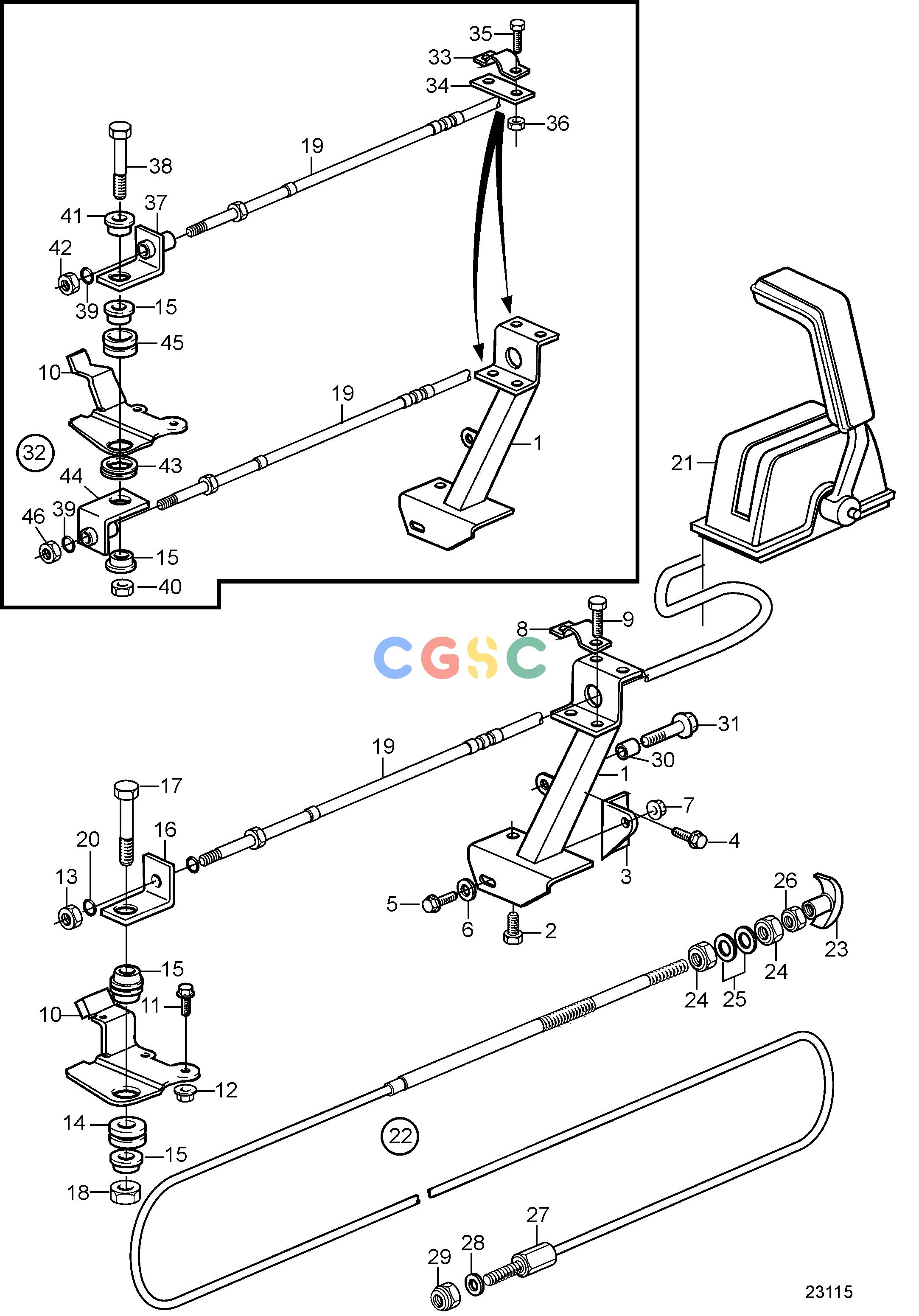

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AControlsControl Connection, Speed and Stop ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
355 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858552
|
[1] |
Bracket
|
|
| 2. |
946471
|
[1] |
Flange screw
|
L=16mm
|
| 2. |
946441
|
[1] |
Flange screw
|
L=20mm
|
| 3. |
838753
|
[1] |
Bracket
|
|
| 4. |
946440
|
[2] |
Flange screw
|
|
| 5. |
945444
|
[1] |
Flange screw
|
|
| 6. |
191172
|
[1] |
Washer
|
|
| 7. |
948645
|
[1] |
Flange lock nut
|
|
| 8. |
21471054
|
[1] |
Bracket
|
|
| 9. |
969407
|
[2] |
Six point socket scr
|
(956078)
|
| 10. |
858261
|
[1] |
Lever
|
|
| 11. |
946544
|
[1] |
Flange screw
|
|
| 12. |
949278
|
[1] |
Flange lock nut
|
|
| 13. |
951674
|
[1] |
Lock nut
|
|
| 14. |
843109
|
[1] |
Bushing
|
|
| 15. |
843105
|
[3] |
Spacer washer
|
|
| 16. |
843107
|
[1] |
Anchorage
|
|
| 17. |
955274
|
[1] |
Hexagon screw
|
|
| 18. |
946035
|
[1] |
Lock nut
|
|
| 19. |
7742700_150
|
|
Control cable
|
|
| 20. |
955971
|
[1] |
O-ring
|
|
| 21. |
|
|
|
|
| 22. |
818478
|
[1] |
Push pull control
|
L=3,3m
|
| 22. |
818470
|
[1] |
Push pull control
|
L=6,9m
|
| 23. |
829241
|
[1] |
Handle
|
|
| 24. |
955857
|
[2] |
Hexagon nut
|
|
| 25. |
955950
|
[2] |
Toothed washer
|
|
| 26. |
955844
|
[1] |
Hexagon nut
|
|
| 27. |
829070
|
[1] |
Cable lock
|
|
| 28. |
955894
|
[2] |
Washer
|
|
| 29. |
950363
|
[1] |
Lock nut
|
|
| 30. |
|
|
|
|
| 31. |
947542
|
[1] |
Flange screw
|
|
| 32. |
3581042
|
[1] |
Engine speed control
|
For double steering positions
|
| 33. |
21471054
|
[1] |
Bracket
|
|
| 34. |
819068
|
[1] |
Washer
|
|
| 35. |
969407
|
[2] |
Six point socket scr
|
(956078)
|
| 36. |
951674
|
[2] |
Lock nut
|
|
| 37. |
861215
|
[1] |
Bracket
|
|
| 38. |
955275
|
[1] |
Hexagon screw
|
|
| 39. |
955971
|
[2] |
O-ring
|
|
| 40. |
946035
|
[1] |
Lock nut
|
|
| 41. |
843105
|
[1] |
Spacer washer
|
|
| 42. |
951674
|
[1] |
Lock nut
|
|
| 43. |
843105
|
[1] |
Spacer washer
|
|
| 44. |
861214
|
[1] |
Bracket
|
|
| 45. |
843109
|
[1] |
Bushing
|
|
| 46. |
951674
|
[1] |
Lock nut
|
|
