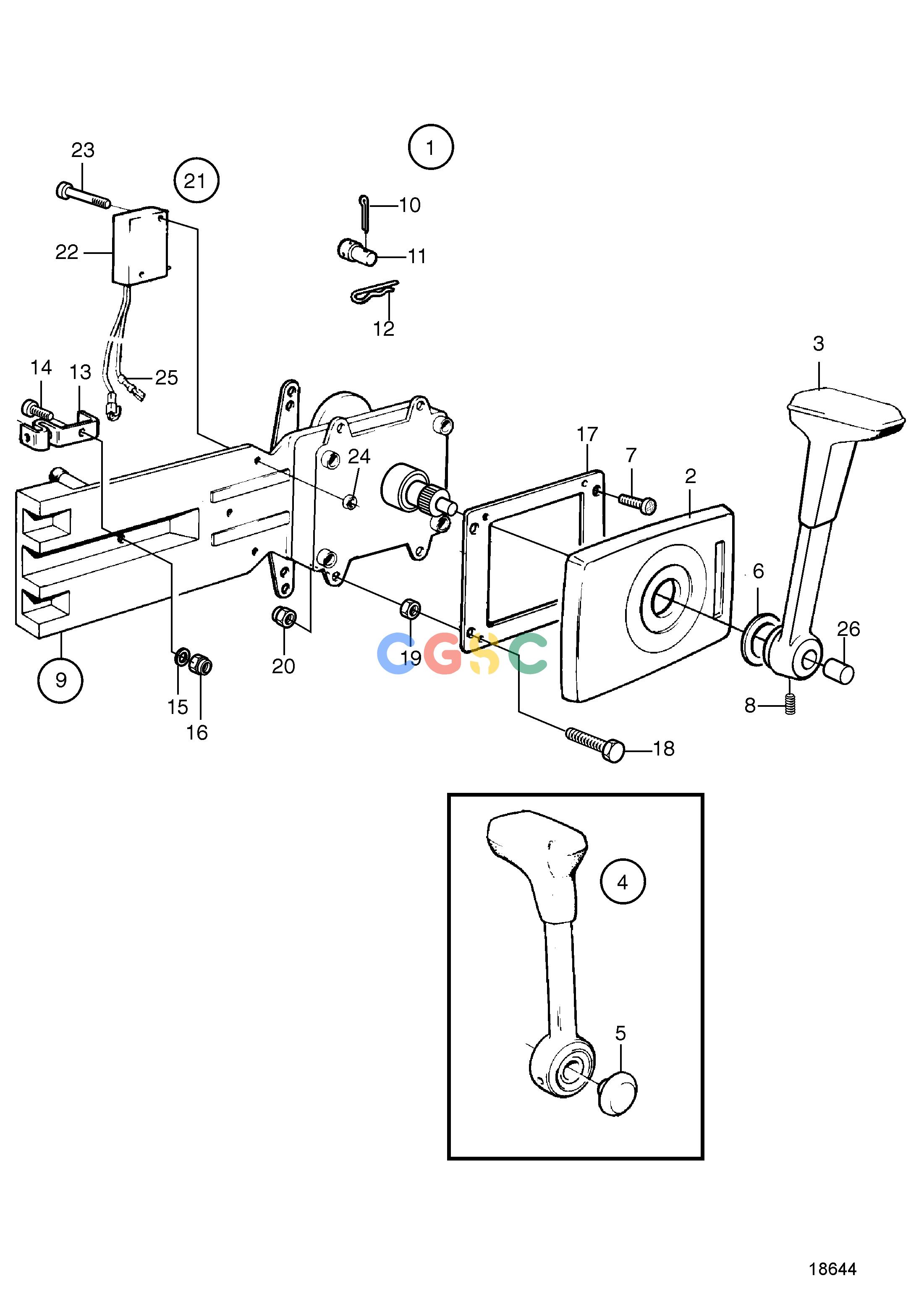

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AControlsControl for Side Installation, PC741, PC841: PC741EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1013 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140092
|
[1] |
Mounting kit
|
|
| 2. |
853713
|
[1] |
Cover
|
|
| 3. |
839520
|
[1] |
Hand lever
|
|
| 4. |
|
|
|
|
| 6. |
1140094
|
[1] |
Washer
|
|
| 7. |
961330
|
[4] |
Cross recessed screw
|
|
| 8. |
839693
|
[1] |
Lock screw
|
|
| 9. |
1140095
|
[1] |
Control mechanism
|
|
| 10. |
17253
|
[2] |
Split pin
|
|
| 11. |
839638
|
[2] |
Cube
|
|
| 12. |
852924
|
[1] |
Locking pin
|
|
| 13. |
853423
|
[1] |
Retainer
|
|
| 14. |
839664
|
[1] |
Screw
|
|
| 15. |
940275
|
[1] |
Washer
|
|
| 16. |
946435
|
[1] |
Lock nut
|
|
| 17. |
|
|
|
|
| 18. |
963548
|
[4] |
Hexagon screw
|
|
| 19. |
|
|
|
|
| 20. |
946435
|
[4] |
Lock nut
|
|
| 21. |
855352
|
[1] |
Neutral position con
|
|
| 22. |
850200
|
[1] |
Toggle switch
|
|
| 23. |
946177
|
[2] |
Cross recessed screw
|
|
| 24. |
947536
|
[2] |
Hexagon nut
|
|
| 25. |
7742700_194
|
|
cables and terminals
|
|
| 26. |
839632
|
[1] |
Button
|
|
