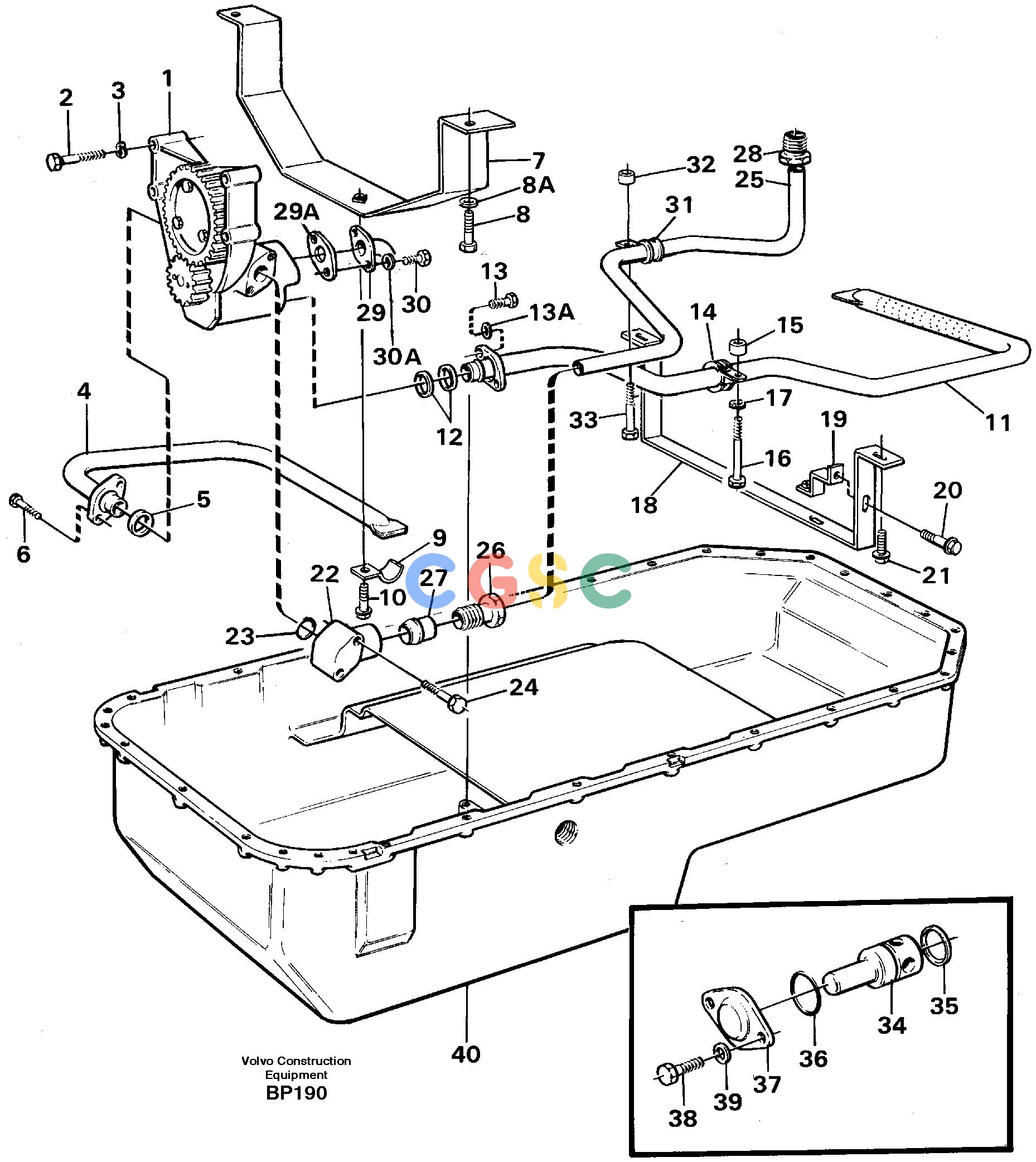

沃尔沃零件查询A30C Lubricating oil systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil pump
|
|
| 2. |
VOE955538
|
[4] |
Hexagon screw
|
|
| 3. |
VOE13942336
|
[4] |
Spring washer
|
(942336)
|
| 4. |
VOE11031197
|
[1] |
Suction pipe
|
|
| 5. |
VOE470383
|
[2] |
Sealing ring
|
|
| 6. |
VOE13946173
|
[2] |
Screw
|
|
| 7. |
VOE11031290
|
[1] |
Bracket
|
|
| 8. |
VOE955531
|
[2] |
Hexagon screw
|
|
| 8A. |
VOE13955894
|
[2] |
Washer
|
|
| 9. |
VOE11031206
|
[1] |
Clamp
|
|
| 10. |
VOE13946544
|
[1] |
Screw
|
(946544)
|
| 11. |
VOE11031199
|
[1] |
Suction pipe
|
|
| 12. |
VOE470383
|
[2] |
Sealing ring
|
|
| 13. |
VOE13941678
|
[2] |
Hexagon screw
|
(941678)
|
| 13A. |
VOE13955894
|
[2] |
Washer
|
(955894)
|
| 14. |
VOE977743
|
[1] |
Clamp
|
|
| 15. |
VOE11053913
|
[1] |
Spacer sleeve
|
|
| 16. |
VOE13940159
|
[2] |
Screw
|
(940159)
|
| 17. |
VOE13941907
|
[2] |
Washer
|
(941907)
|
| 18. |
VOE11031202
|
[1] |
Anchorage
|
|
| 19. |
VOE11031203
|
[1] |
Anchorage
|
|
| 20. |
VOE13946544
|
[2] |
Screw
|
(946544)
|
| 21. |
VOE942402
|
[2] |
Flange screw
|
|
| 22. |
VOE4778338
|
[1] |
Flange
|
|
| 23. |
VOE13949657
|
[1] |
O-ring
|
(949657)
|
| 24. |
VOE13965216
|
[2] |
Screw
|
(965216)
|
| 25. |
VOE865224
|
[1] |
Tube
|
|
| 26. |
VOE470377
|
[1] |
Connector
|
|
| 27. |
VOE956973
|
[1] |
Ferrule
|
|
| 28. |
VOE466908
|
[1] |
Fitting
|
|
| 29. |
VOE4778425
|
[1] |
Pipe
|
|
| 29A. |
VOE4778427
|
[1] |
Flange
|
|
| 30. |
VOE13941678
|
[2] |
Hexagon screw
|
(941678)
|
| 30A. |
VOE13955894
|
[2] |
Washer
|
(955894)
|
| 31. |
VOE7190159
|
[1] |
Clamp
|
|
| 32. |
VOE11053913
|
[1] |
Spacer sleeve
|
|
| 33. |
VOE955525
|
[1] |
Hexagon screw
|
|
| 34. |
VOE471707
|
[1] |
Reduction valve
|
|
| 35. |
VOE469846
|
[1] |
Sealing ring
|
|
| 36. |
VOE949658
|
[1] |
O-ring
|
|
| 37. |
VOE471752
|
[1] |
Cover
|
|
| 38. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 39. |
VOE13949607
|
[2] |
Washer
|
(949607)
|
| 40. |
|
[1] |
Oil sump
|
|
