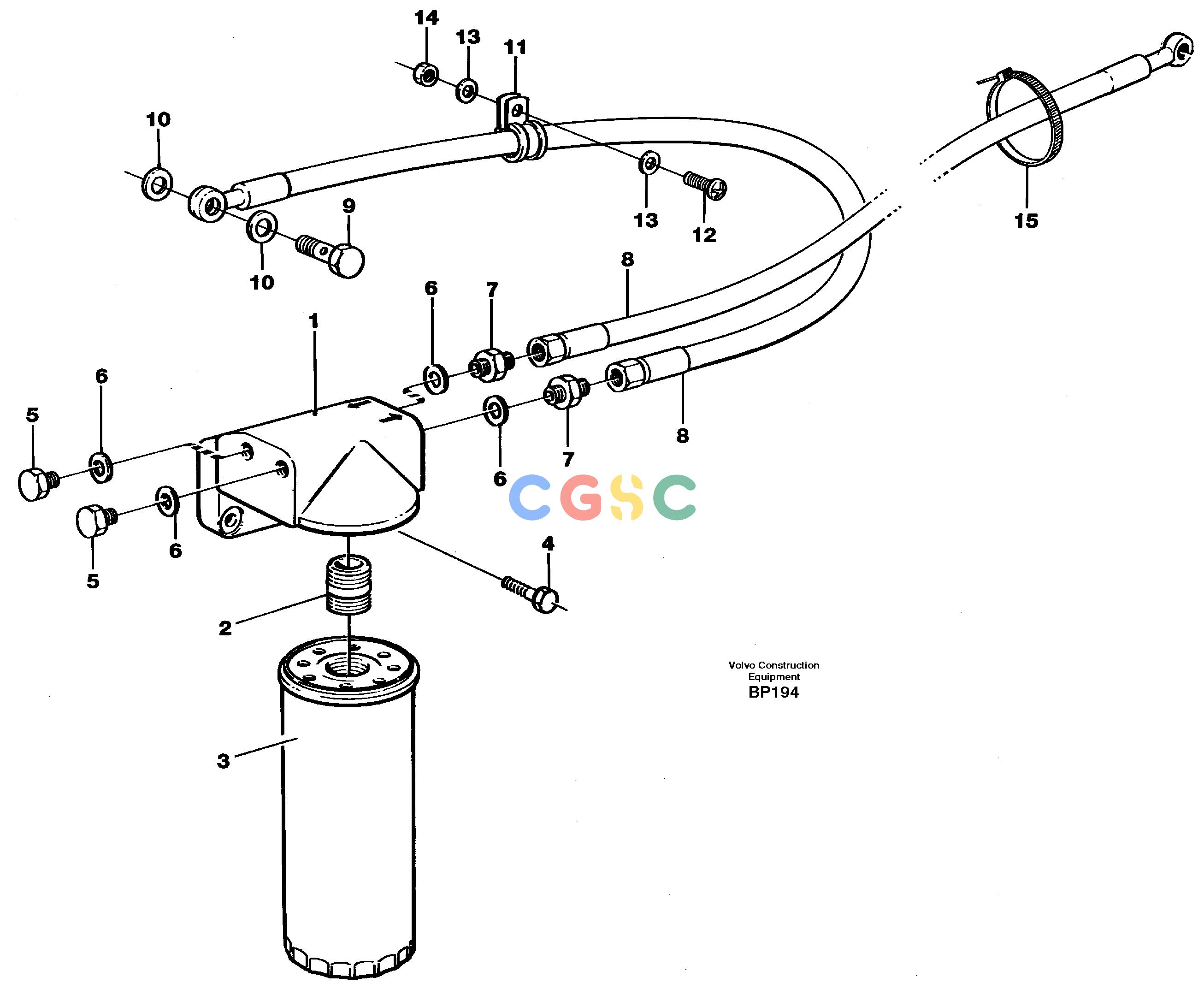

沃尔沃零件查询A30C Oil filter by passNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11127104
|
[1] |
Oil filter housing
|
|
| 2. |
VOE469904
|
[1] |
Nipple
|
|
| 3. |
VOE21707132
|
[1] |
Oil filter
|
|
| 4. |
VOE13965185
|
[2] |
Screw
|
L=40MM
|
| |
VOE946471
|
[1] |
Flange screw
|
L=16MM
|
| 5. |
VOE960630
|
[2] |
Plug
|
|
| 6. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 7. |
VOE4863732
|
[2] |
Clutch
|
|
| 8. |
VOE11031281
|
[2] |
Hose
|
|
| 9. |
VOE968178
|
[1] |
Hollow screw
|
|
| 10. |
VOE13947282
|
[2] |
Gasket
|
|
| 11. |
VOE952629
|
[1] |
Clamp
|
|
| 12. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 13. |
VOE13941906
|
[2] |
Washer
|
|
| 14. |
VOE955825
|
[1] |
Hexagon nut
|
|
| 15. |
VOE4881440
|
[REQ] |
Cable tie
|
|
