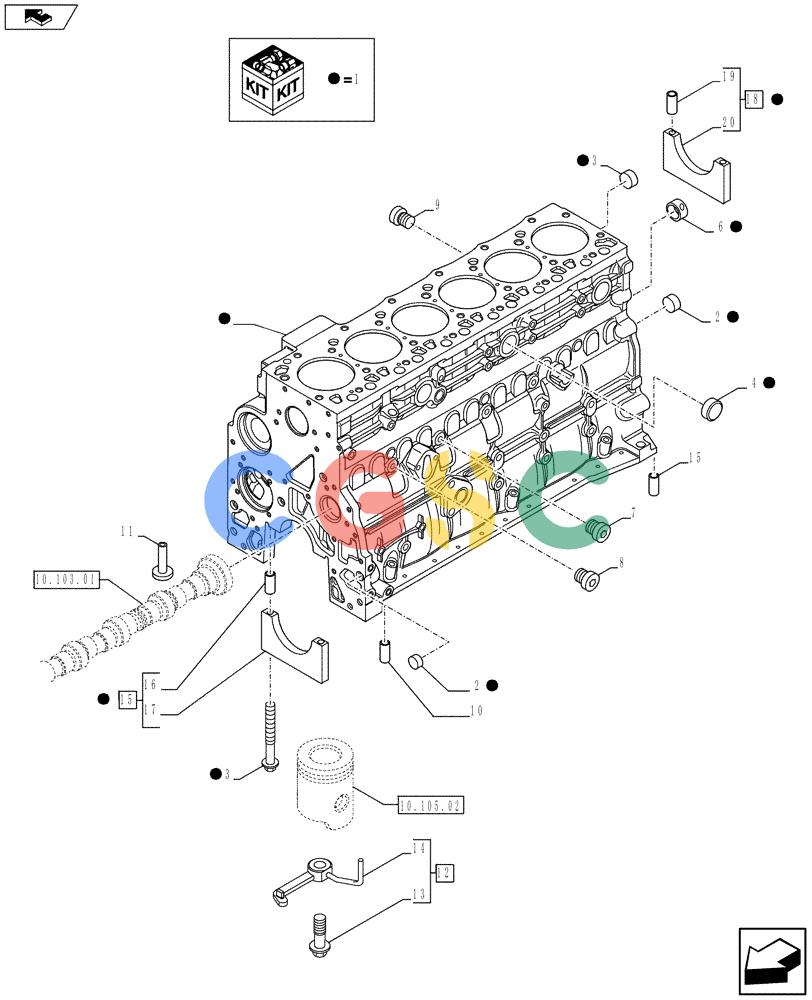

纽荷兰零件查询(F4HFE613Y A005) - ENGINE 5801425075 - 84387923 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504068995) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
130 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2830076 | [1] | CYLINDER BLOCK,6 Cylinders | TOR |
| 2. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 3. | 4895038 | [6] | EXPANSION PLUG,M58.06 | TOR |
| 4. | 4895228 | [3] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 5. | 4891353 | [14] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 6. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 7. | 4895605 | [2] | HEX SOCKET PLUG,M14 x 1.5 | TOR |
| 8. | 4899009 | [2] | PLUG,M10 x 1.5 | TOR |
| 9. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TOR |
| 10. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 11. | 4891226 | [12] | TAPPET | LEC |
| 12. | 2852202 | [6] | PISTON COOLING NOZZLE | TORLUBE OIL JET NOZZLE ASSY Superseded by part number: 504054307 |
| 13. | 4894218 | [1] | SCREW,Special, M8 x 20 | TOR |
| 14. | 504047260 | [1] | LUBE OIL NOZZLE | TORLUBE OIL JET NOZZLE Superseded by part number: 2852202 |
| 15. | NSS | [6] | NOT SERVICED SEPARATELY | CONASSY |
| 16. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 17. | 4892951 | [1] | BEARING CAP,24.5 mm | TOR |
