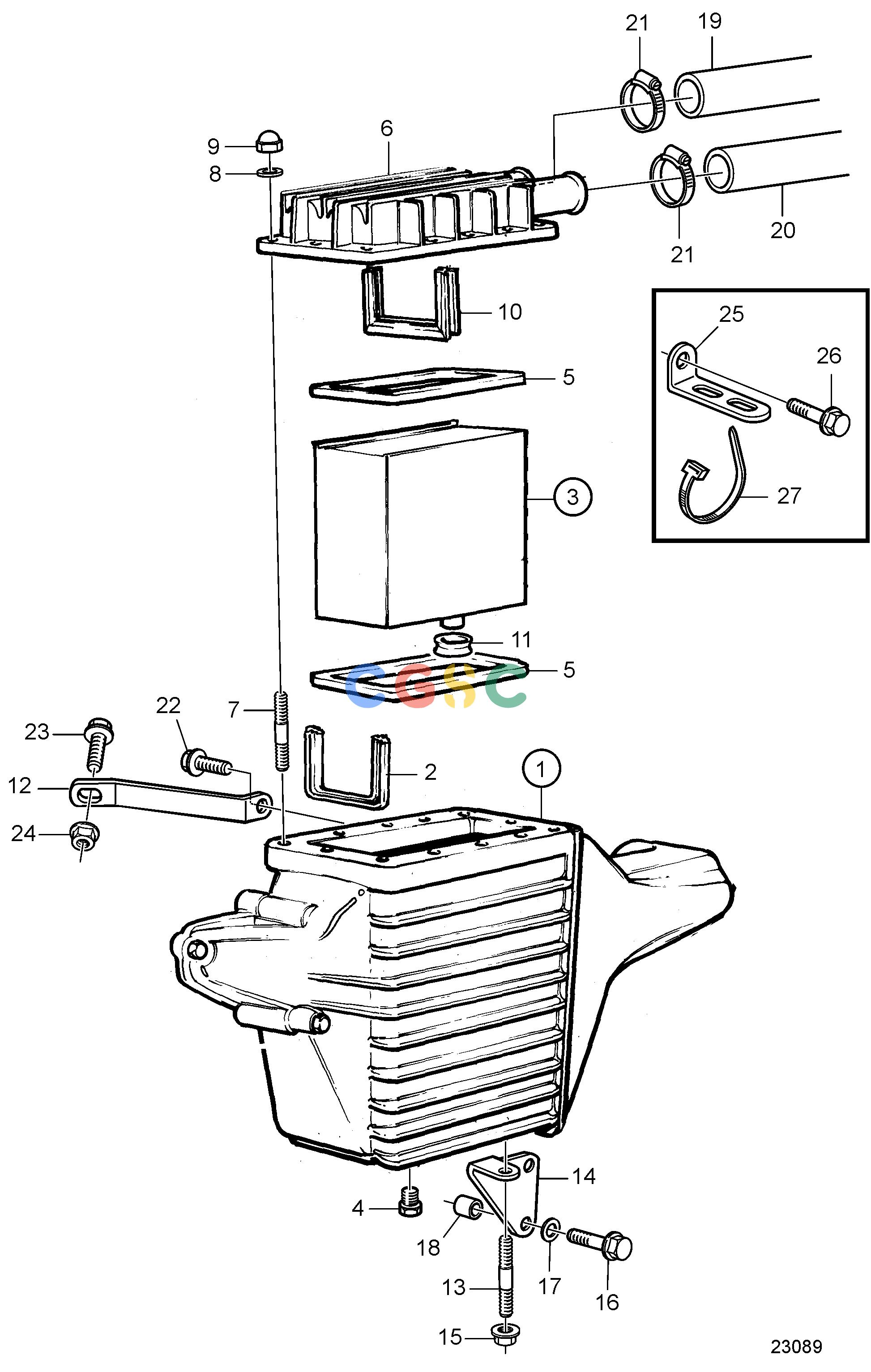

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemAftercoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
139 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861657
|
[1] |
Housing
|
(861656)
|
| 2. |
3582639
|
[1] |
Sealing strip
|
|
| 3. |
3582598
|
[1] |
Insert
|
|
| 4. |
861551
|
[1] |
Plug
|
|
| 5. |
860920
|
[2] |
Gasket
|
|
| 6. |
860409
|
[1] |
Cover
|
|
| 7. |
953036
|
[12] |
Stud
|
|
| 8. |
955893
|
[12] |
Washer
|
|
| 9. |
968458
|
[12] |
Flange cap nut
|
|
| 10. |
847573
|
[1] |
Sealing strip
|
|
| 11. |
858979
|
[1] |
Sealing ring
|
|
| 12. |
858967
|
[1] |
Bracket
|
|
| 13. |
953041
|
[1] |
Stud
|
|
| 14. |
858965
|
[1] |
Bracket
|
|
| 15. |
945408
|
[1] |
Flange nut
|
|
| 16. |
965226
|
[2] |
Flange screw
|
|
| 17. |
955897
|
[2] |
Washer
|
|
| 18. |
843122
|
[2] |
Spacer sleeve
|
TAMD31L-A/M-A/S-A
|
| 18. |
861554
|
[2] |
Spacer
|
AD31L-A
|
| 19. |
860644
|
[1] |
Hose
|
After cooler-oil cooler.
|
| 20. |
860645
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 21. |
994561
|
[2] |
Hose clamp
|
|
| 22. |
946440
|
[1] |
Flange screw
|
|
| 23. |
946934
|
[1] |
Flange screw
|
|
| 24. |
945407
|
[1] |
Flange nut
|
|
| 25. |
965562
|
[1] |
Bracket
|
|
| 26. |
946329
|
[1] |
Flange screw
|
|
| 27. |
948211
|
[1] |
Cable tie
|
|
