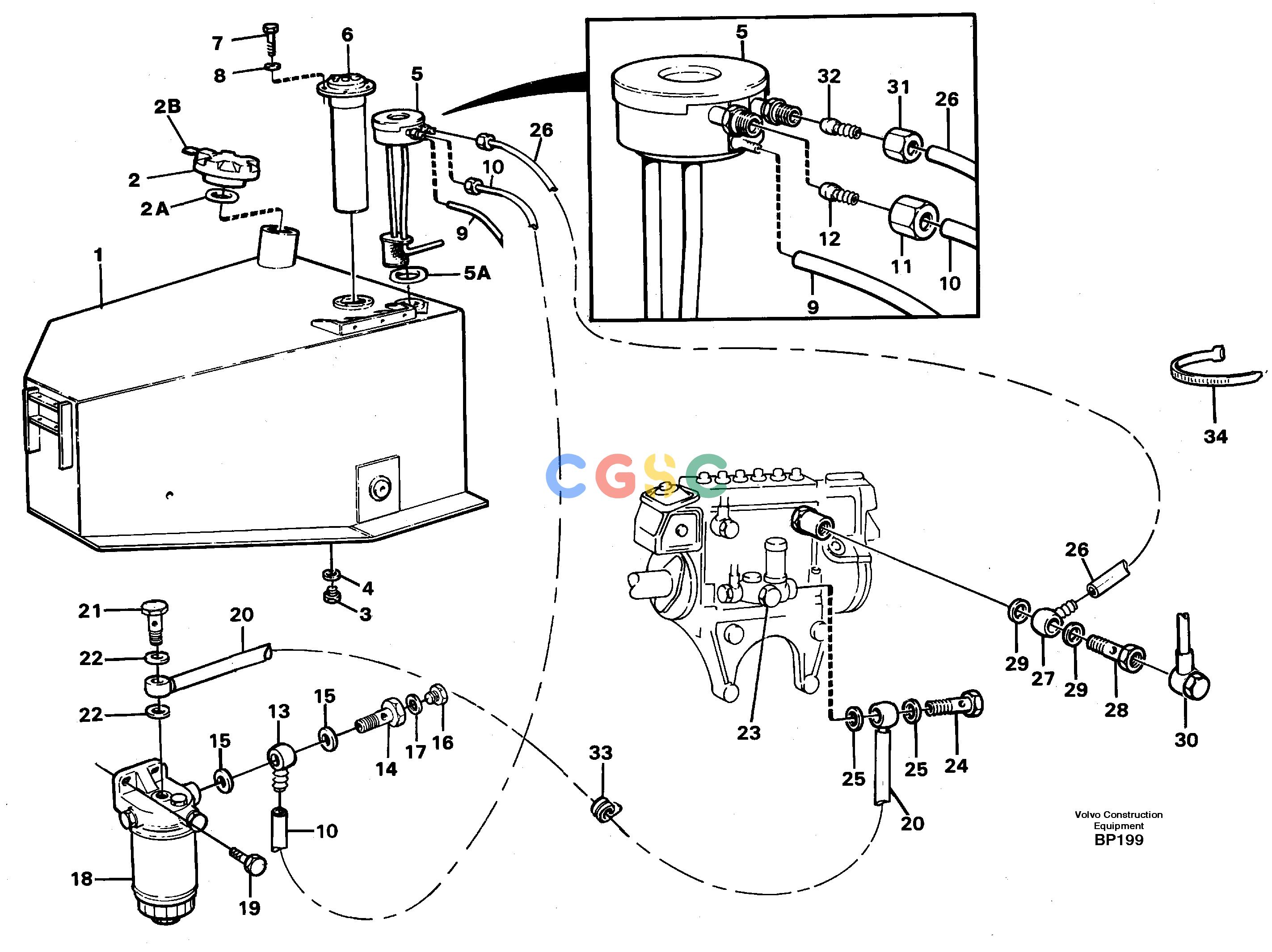

沃尔沃零件查询A30C Fuel tank, fuel pipesNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11051341
|
[1] |
Fuel tank
|
SER NO - 3401
SER NO - 60264 USA
|
| |
VOE11060604
|
[1] |
Filler pipe
|
|
| |
VOE11114753
|
[1] |
Fuel tank
|
SER NO 3402 -
SER NO 60265 - USA
|
| 2. |
VOE1189577
|
[1] |
Filler cap
|
SER NO - 3401
SER NO - 60264 USA
|
| |
VOE11118857
|
[1] |
Filler cap
|
SER NO 3402 -
SER NO 60265 - USA
|
| 2A. |
VOE1698164
|
[1] |
Gasket
|
SER NO - 3401
SER NO - 60264 USA
|
| |
VOE11988188
|
[1] |
Gasket
|
SER NO 3402 -
SER NO 60265 - USA
|
| 2B. |
VOE11991396
|
[2] |
Key
|
SER NO - 3401
SER NO - 60264 USA
|
| 3. |
VOE4948183
|
[1] |
Plug
|
|
| 4. |
VOE957184
|
[1] |
Gasket
|
|
| 5. |
VOE4803800
|
[1] |
Combined tank unit
|
|
| 5A. |
VOE944219
|
[1] |
O-ring
|
|
| 6. |
VOE4803665
|
[1] |
Combined tank unit
|
SE17
|
| 7. |
VOE13955271
|
[6] |
Screw
|
|
| 8. |
VOE7011991
|
[6] |
Gasket
|
|
| 9. |
VOE192034
|
[REQ] |
Rubber hose
|
L=450MM
|
| 10. |
VOE945462
|
[REQ] |
Tube
|
L=3150MM
|
| 11. |
VOE326597
|
[1] |
Fitting nut
|
|
| 12. |
VOE975541
|
[1] |
Nipple
|
|
| 13. |
VOE977754
|
[1] |
Banjo nipple
|
|
| 14. |
VOE8148583
|
[1] |
Hollow screw
|
|
| 15. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 16. |
VOE960627
|
[1] |
Plug
|
|
| 17. |
VOE947620
|
[1] |
Gasket
|
|
| 18. |
VOE8159966
|
[1] |
Water separator
|
|
| 19. |
VOE60113094
|
[2] |
Flange screw
|
|
| 20. |
VOE11031275
|
[1] |
Tube
|
|
| 21. |
VOE941686
|
[1] |
Hollow screw
|
|
| 22. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 23. |
|
[1] |
Feed pump
|
|
| 24. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 25. |
VOE13969011
|
[2] |
Gasket
|
|
| 26. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L=3750MM
|
| 27. |
VOE968176
|
[1] |
Banjo nipple
|
|
| 28. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 29. |
VOE13969011
|
[2] |
Gasket
|
(969011)
|
| 30. |
|
[1] |
Leak-off Pipe
|
|
| 31. |
VOE326596
|
[1] |
Fitting nut
|
|
| 32. |
VOE975540
|
[1] |
Nipple
|
|
| 33. |
VOE13949747
|
[1] |
Clamp
|
(949747)
|
| 34. |
VOE4821292
|
[5] |
Cable tie
|
L=178MM
|
| |
VOE4881440
|
[8] |
Cable tie
|
L=530MM
|
