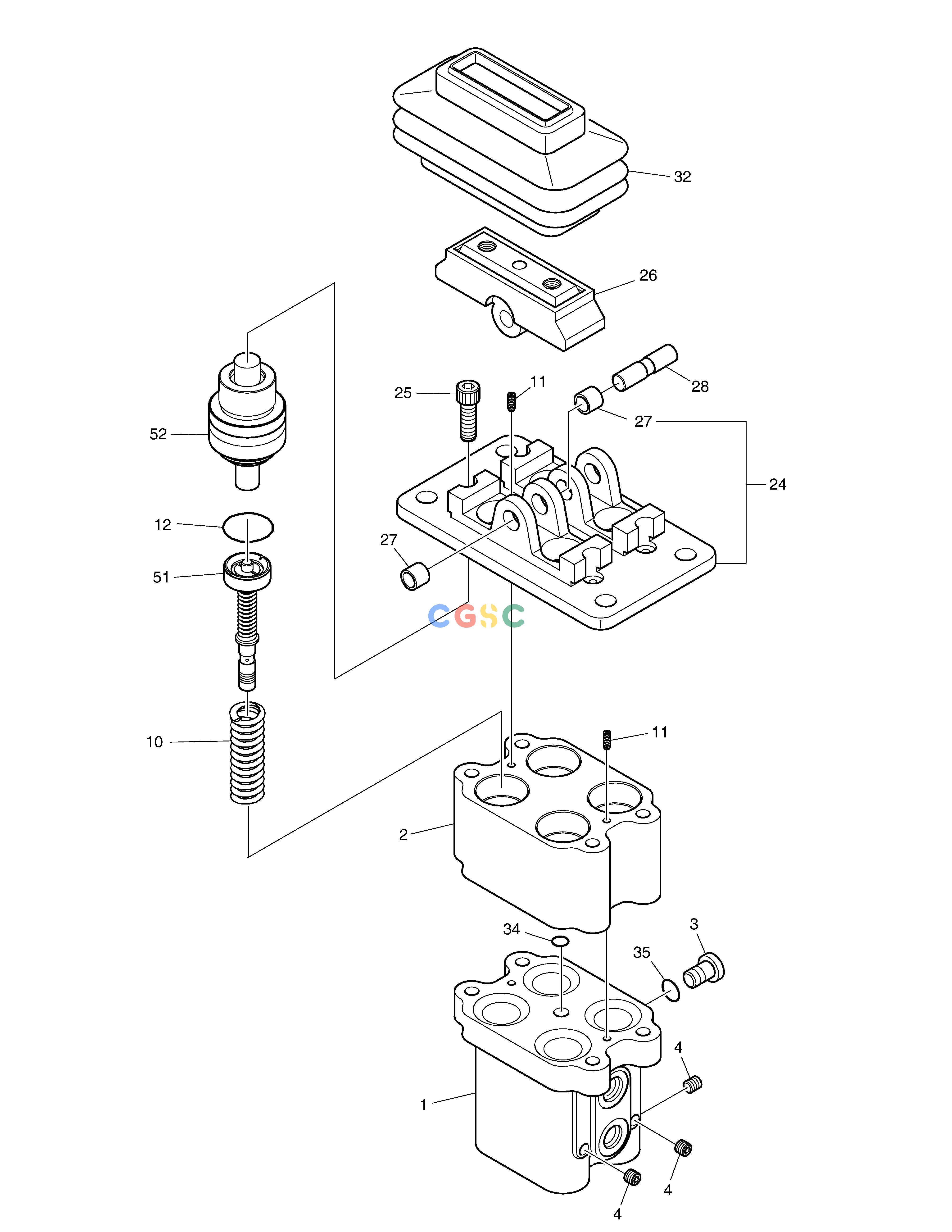

斗山零件查询PEDAL VALVE DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00467A
|
[1] |
VALVE,PEDAL
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
K9006860
|
[4] |
SPRING
|
|
| 11. |
S5740600
|
[4] |
PIN;SPRING
|
|
| 12. |
S8000261
|
[4] |
O-RING
|
|
| 2. |
NA00079
|
[1] |
BODY
|
|
| 24. |
K9006865
|
[1] |
KIT;COVER
|
|
| 25. |
S2210071
|
[4] |
BOLT
|
|
| 26. |
K9006866
|
[2] |
KIT;CAM
|
|
| 27. |
2110-1184D7
|
[4] |
BUSH
|
|
| 28. |
K9006861
|
[2] |
SHAFT;CAM
|
|
| 3. |
420-00112
|
[1] |
PLUG
|
|
| 32. |
K9006862
|
[2] |
BELLOWS
|
|
| 34. |
S8000081
|
[1] |
O-RING
|
|
| 35. |
S8000111
|
[1] |
O-RING
|
|
| 4. |
2181-1116D1
|
[3] |
PLUG
|
|
| 51. |
K9006863
|
[4] |
KIT;SPOOL
|
|
| 52. |
K9006864
|
[4] |
KIT;PLUG
|
|
