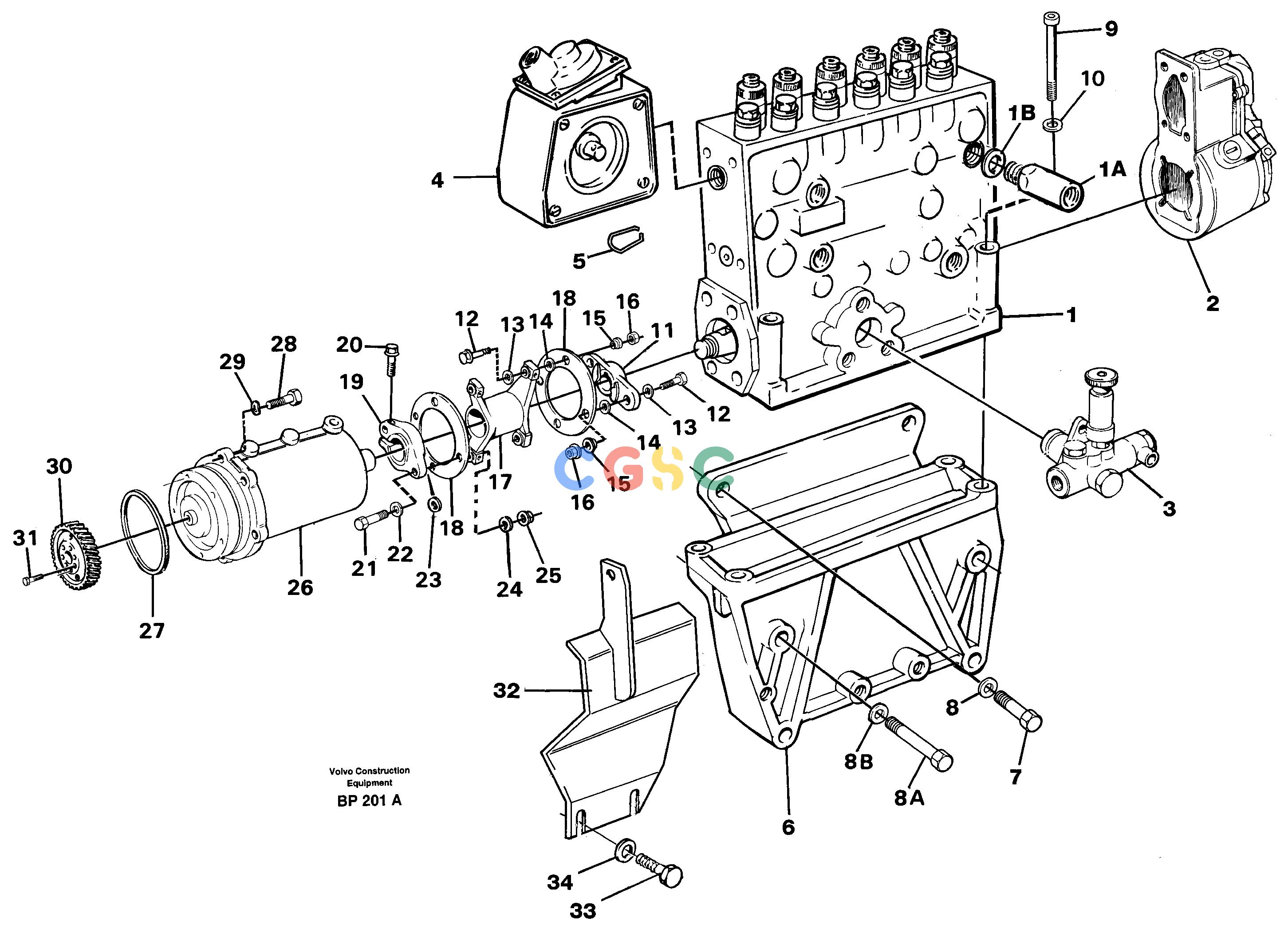

沃尔沃零件查询A30C Fuel injection pump with fitting partsNone11031330-11031370NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11031330
|
[1] |
Injection pump
|
TD 103KBE
|
| |
VOE11031370
|
|
Injection pump
|
TD 104KAE
|
| |
VOE11162086
|
|
Injection pump
|
TD 104KBE
|
| 1. |
VOE11703548
|
[1] |
Injection Pump
|
|
| |
VOE11705059
|
|
Injection Pump
|
|
| 1A. |
VOE11996309
|
|
Overflow valve
|
|
| 1B. |
VOE13947621
|
|
Plane gasket
|
|
| 2. |
VOE11701551
|
[1] |
Regulator
|
|
| 3. |
VOE863474
|
[1] |
Feed pump
|
|
| 4. |
VOE11702229
|
[1] |
Smoke Limiter
|
|
| 5. |
VOE422525
|
[1] |
Towing eye
|
|
| 6. |
VOE866783
|
[1] |
Bracket
|
|
| 7. |
VOE479696
|
[2] |
Screw
|
|
| 8. |
VOE13940097
|
[2] |
Washer
|
(940097)
|
| 8A. |
VOE955566
|
[4] |
Hexagon screw
|
|
| 8B. |
VOE940280
|
[4] |
Spring washer
|
|
| 9. |
VOE940156
|
[4] |
Hexagon screw
|
|
| 10. |
VOE190509
|
[4] |
Washer
|
|
| 11. |
VOE478358
|
[1] |
Companion flange
|
|
| 12. |
VOE13965185
|
[2] |
Screw
|
(965185)
|
| 13. |
VOE976945
|
[2] |
Washer
|
(960148)
|
| 14. |
VOE479399
|
[2] |
Washer
|
|
| 15. |
VOE478897
|
[2] |
Sleeve
|
|
| 16. |
VOE13971095
|
[2] |
Flange nut
|
(971095)
|
| 17. |
VOE420959
|
[1] |
Intmd Section
|
|
| 18. |
VOE479458
|
[4] |
Companion disc
|
|
| 19. |
VOE1556186
|
[1] |
Companion flange
|
|
| 20. |
VOE1556285
|
[1] |
Screw
|
|
| 21. |
VOE13965185
|
[2] |
Screw
|
M10X40
|
| |
VOE13965220
|
[2] |
Screw
|
M10X45
|
| 22. |
VOE976945
|
[4] |
Washer
|
|
| 23. |
VOE479399
|
[4] |
Washer
|
|
| 24. |
VOE478897
|
[4] |
Sleeve
|
|
| 25. |
VOE13971095
|
[4] |
Flange nut
|
(971095)
|
| 26. |
|
[1] |
Inj timing dvc
|
|
| 27. |
VOE423123
|
[1] |
Sealing ring
|
|
| 28. |
VOE13940159
|
[5] |
Screw
|
(940159)
|
| 29. |
VOE13941907
|
[5] |
Washer
|
(941907)
|
| 30. |
VOE479985
|
[1] |
Gear
|
|
| 31. |
VOE975199
|
[6] |
Flange screw
|
|
| 32. |
VOE11063013
|
[1] |
Protecting plate
|
|
| 33. |
VOE13946173
|
[2] |
Screw
|
|
| 34. |
VOE13960141
|
[2] |
Washer
|
|
