| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

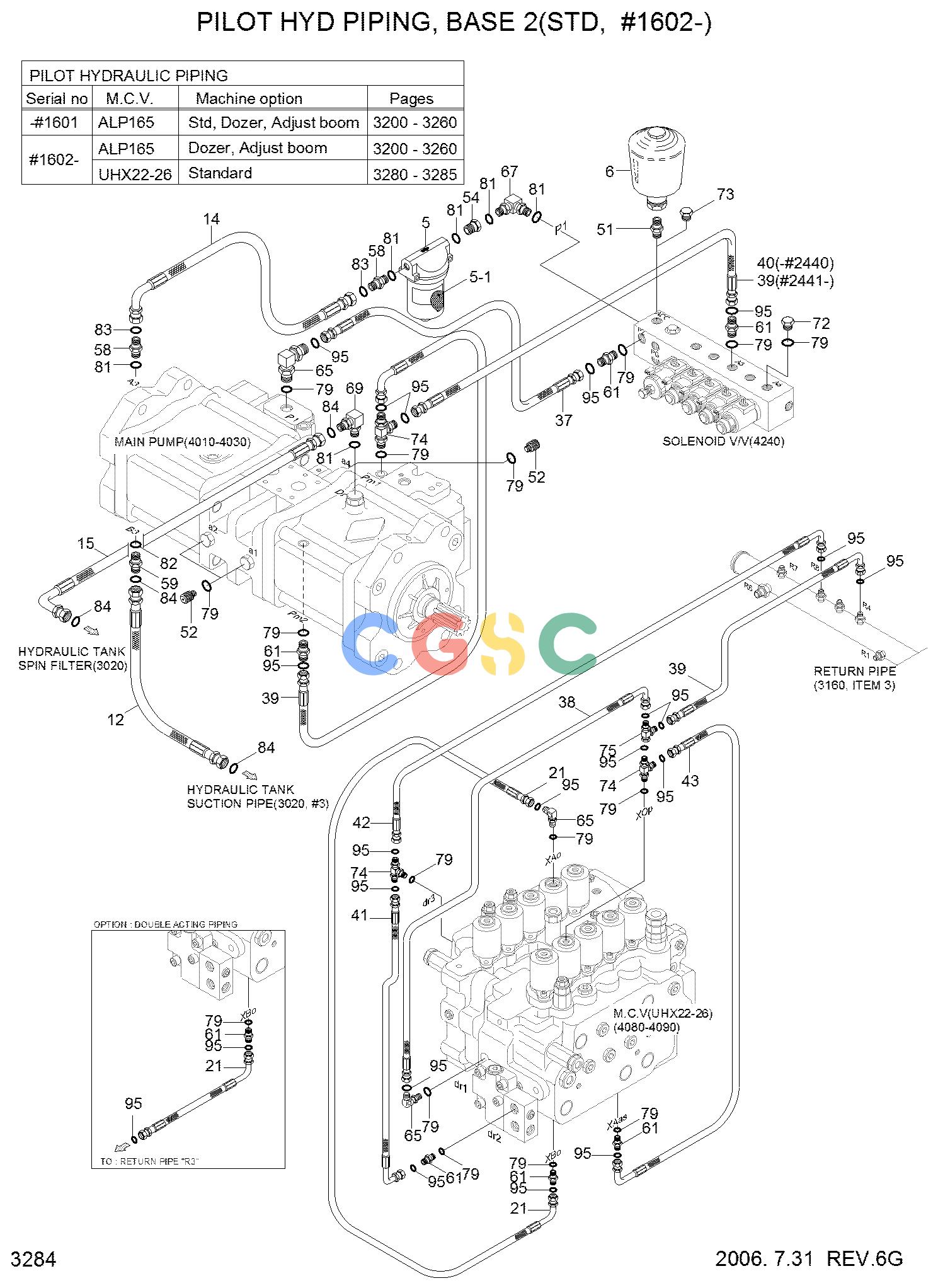

| . | @ | [1] | PILOT HYD PIPING | SEE 3200-3250 |
| 23. | X410-062022 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 30. | X420-062056 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 31. | S621-011001 | [15] | O-RING,ORFS | |
| 32. | S621-012001 | [4] | O-RING,ORFS | |
| 33. | 31N6-25010 | [1] | TERMINAL ASSY | STD |
| 33-1. | 31N6-25030 | [1] | SHUTTLE-5 PORT | |
| 33-2. | X540-120001 | [6] | CONNECTOR-B.H TYPE | |
| 34. | S037-102042 | [2] | BOLT-W/WASHER | |
| 47. | 31N4-22150 | [1] | TEE-LONG,ORFS | |
| 48. | X820-045151 | [3] | TEE-R/TYPE,ORFS | |
| 49. | X820-065152 | [1] | TEE-R/TYPE,ORFS | |
| 49. | 31N5-30100 | [1] | TEE | |
| 50. | X820-125452 | [1] | TEE-R/TYPE,ORFS | |
| 51. | X500-110001 | [2] | CONNECTOR-ORFS | |
| 55. | X520-110001 | [2] | ELBOW-90,ORFS | STD |
| 55. | X520-110001 | [10] | ELBOW-90,ORFS | OPT, PATT VLV |
| 67. | S631-011004 | [8] | O-RING | |
| 68. | S631-014004 | [1] | O-RING | |
| 77. | S551-050203 | [20] | CLAMP-BAND | |
| 79. | X400-042020 | [2] | HOSE ASSY-SYNFLEX,ORFS | |
| 81. | X400-042025 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 83. | X400-042030 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 84. | X400-042033 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 86. | X420-042018 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 87. | X420-042024 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 88. | X420-042029 | [1] | HOSE ASSY-SYNFLEX,ORFS | |
| 100. | 31N4-20140 | [1] | TERMINAL ASSY | OPT, PATT VLV |
| 101. | 31N6-22050 | [1] | SELECTOR VLV-MULTIMODE | OPT, PATT VLV |
| 102. | S015-080806 | [2] | BOLT-HEX | OPT, PATT VLV |
| 103. | S411-080006 | [2] | WASHER-SPRING | OPT, PATT VLV |
