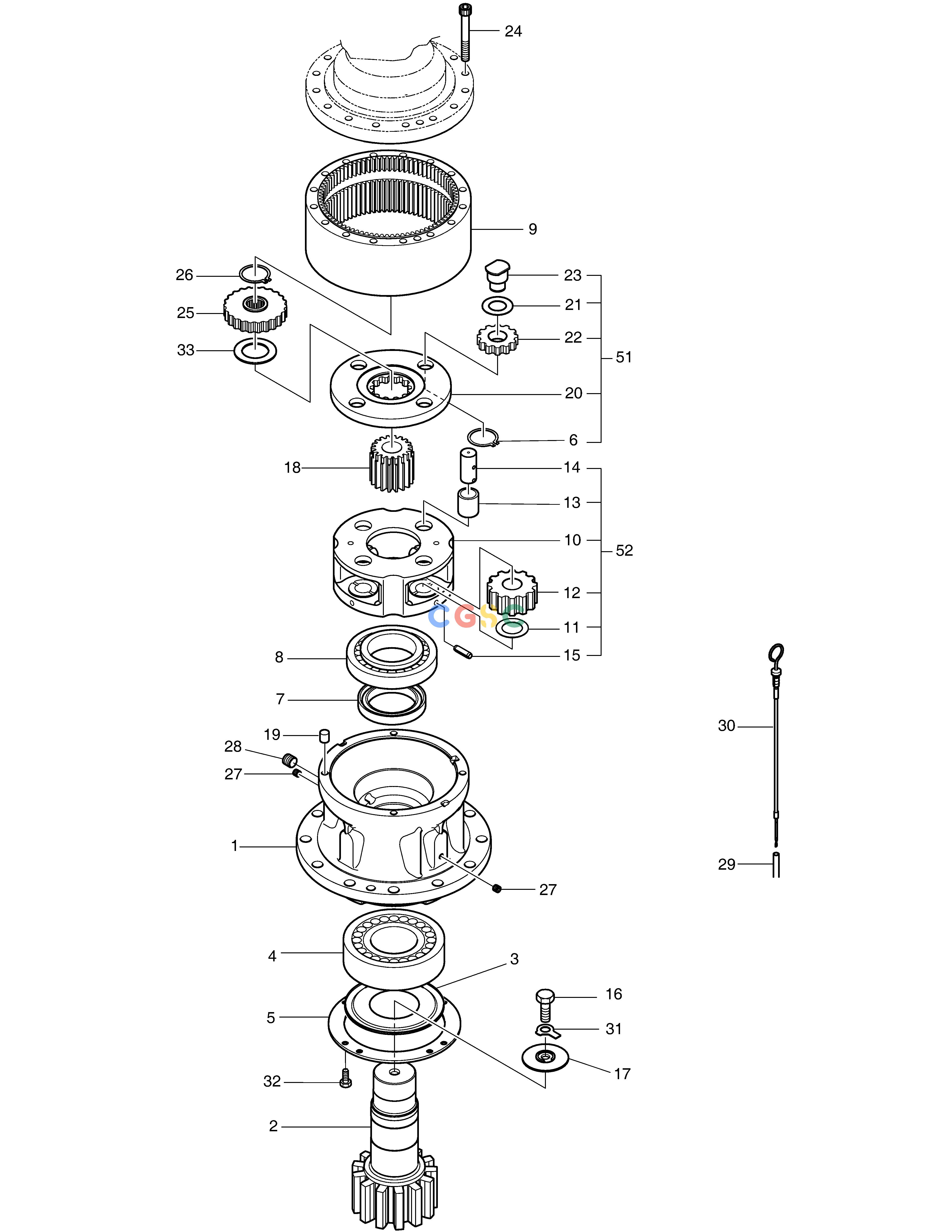

斗山零件查询SWING REDUCTION GEAR DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130426-00010A
|
[1] |
|
|
| 1. |
K1038206
|
[1] |
CASING
|
|
| 10. |
K1038205
|
[1] |
CARRIER NO.2
|
|
| 11. |
2114-1901A
|
[4] |
WASHER;THRUST NO.2
|
|
| 12. |
104-00050
|
[4] |
GEAR;PLANET NO.2
|
|
| 13. |
110-00219
|
[4] |
BUSH NO.2
|
|
| 14. |
K1038208
|
[4] |
PIN NO.2
|
|
| 15. |
S5741200
|
[4] |
PIN;SPRING
|
|
| 16. |
S0121061
|
[1] |
BOLT
|
|
| 17. |
114-00548
|
[1] |
WASHER;THRUST NO.3
|
|
| 18. |
104-00048
|
[1] |
GEAR;SUN NO.2
|
|
| 19. |
2705-1030
|
[4] |
PIN;KNOCK
|
|
| 2. |
K1038207
|
[1] |
SHAFT;DRIVE
|
|
| 20. |
100502-00001
|
[1] |
|
|
| 21. |
114-00527
|
[4] |
WASHER;THRUST NO.1
|
|
| 22. |
130424-00001
|
[4] |
|
|
| 23. |
120501-00009
|
[4] |
|
|
| 24. |
120107-00002
|
[16] |
|
|
| 25. |
130425-00001
|
[1] |
|
|
| 26. |
S6500450
|
[1] |
RING;SNAP
|
|
| 27. |
2181-1116D2
|
[2] |
PLUG
|
|
| 28. |
2181-1116D4
|
[1] |
PLUG
|
|
| 29. |
2140-1406
|
[1] |
PIPE;LEVEL GAUGE
|
|
| 3. |
2412-1040
|
[1] |
PLATE
|
|
| 30. |
2119-1065
|
[1] |
GAUGE;LEVEL
|
|
| 31. |
120811-00001
|
[1] |
|
|
| 32. |
120-00144
|
[8] |
BOLT
|
|
| 33. |
120816-00001
|
[1] |
|
|
| 4. |
2109-9033
|
[1] |
BEARING;ROLLER
|
|
| 5. |
K1038685
|
[1] |
PLATE;COVER
|
|
| 51. |
100502-00022
|
[1] |
|
|
| 52. |
K9008338
|
[1] |
CARRIER NO2 ASS'Y
|
|
| 6. |
S6500380
|
[4] |
RING;SNAP
|
|
| 7. |
2180-1254
|
[1] |
SEAL;OIL
|
|
| 8. |
140107-00715
|
[1] |
|
|
| 9. |
130422-00001A
|
[1] |
|
|
