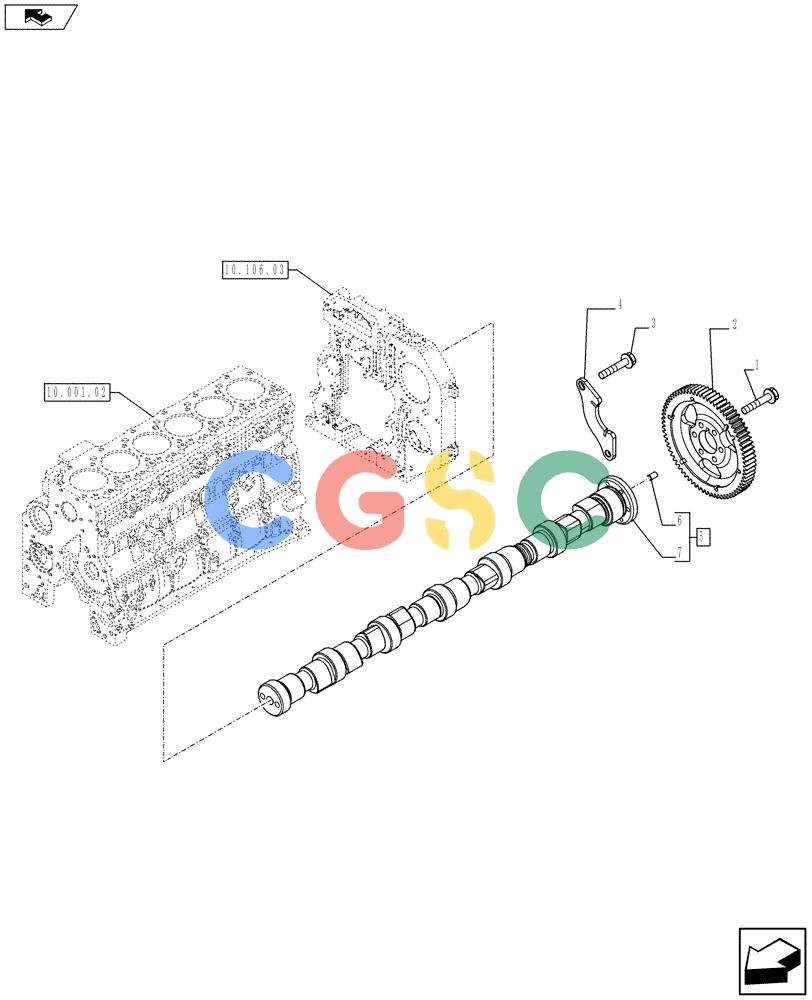

纽荷兰零件查询(F4HFE613Y A005) - ENGINE 5801425075 - 84387923 (10.106.01) - CAMSHAFT (504345141) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4896380 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 504345138 | [1] | CAMSHAFT | TORASSY |
| 5. | 504345138R | [1] | REMAN-CAMSHAFT | RAC621F WHEEL LOADER - TIER 4 (NA) (1/12-), F4HFE613Y A005 ENGINE 5801425075 - 84387923, Both ASSY |
| 5. | 504345138C | [1] | | RACReturn Number |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
| 7. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
